0.66 Inch IIC OLED Display 16 Pin With 64×48 Pixels, White & Blue Fonts Ultra-Low Power OLED Display

——————–

short description

Description

Unveiling the SFOM066YZ16-6448WB-01: A 0.66-Inch IIC OLED Display Redefining Visual Excellence

Explore the cutting-edge SFOM066YZ16-6448WB-01 OLED module, boasting a 0.66-inch diagonal size and a mesmerizing resolution of 64×64 pixels. Elevating user experience, this module integrates seamlessly with a PCB control featuring a user-friendly IIC interface. The 16 mounting holes on the PCB board offer effortless customization, allowing users to securely affix the module to their applications.

Powered by the advanced SSD1306 IC, the SFOM066YZ16-6448WB-01 supports the dynamic IIC interface, driving duty at 1/64. Operating with a logic supply voltage ranging from 3.3V to 5V and I/O level conversion from 5V to 3V, this display exhibits a unique burstiness in its design. Notably, the display’s 50% check board current remains at an impressive 80mA @3.3VDD (typical value). The module’s connectivity is facilitated through 7 header pins, with an optional 4-pin header pins connection available for added flexibility.

Versatility is the hallmark of this OLED module, finding its applications in smart home systems, medical devices, smart controls, meters, and beyond. Operating flawlessly in temperatures ranging from -40℃ to +85℃, it ensures reliability in diverse environments.

Key Features:

  1. Visual Brilliance: A 0.66-inch mini OLED display with an impressive 64×48 resolution, featuring the state-of-the-art SSD1306 chipset.
  2. Power Efficiency: Boasting ultra-low power consumption, the full screen lighting requires only 0.08w.
  3. Effortless Installation: Designed for user convenience, the module comes with four mounting holes for easy and secure installation.
  4. Flexible Interface: Supporting IIC interface (with an option to switch to SPI), it adapts to varied control chips, fully compatible with Arduino 51 series, msp430 series, stm32/2 CSR IC, and more.
  5. Voltage Compatibility: Operates seamlessly on DC 3V – 5V power supply, providing adaptability to different setups.
Product: OLED 0.66 Inch IIC Interface
Structure: COG + PCB
Resolution: 64×48 Pixels
Interfaces: I2C
Viewing Algle: All Viewing Angle
Pin Number: 16 Pins
Color: White / Blue Optional
Module Size: 25.5(W)×28(H)×2.7(T) Mm
Glass: PMOLED (Passive Matrix OLED)
Controller: SSD1306 Or Equivalent
Power Supply: 3.3V / 5V
Brightness: 120 Cd/m2 (min)
Opereating Temp.: -40℃ To +85℃
Contrast Ratio: 2000:1 (Dark Room Contrast)
Compliance: REACH & RoHS Compliant
Certificate: ISO9001:2015 / ISO1400:2015

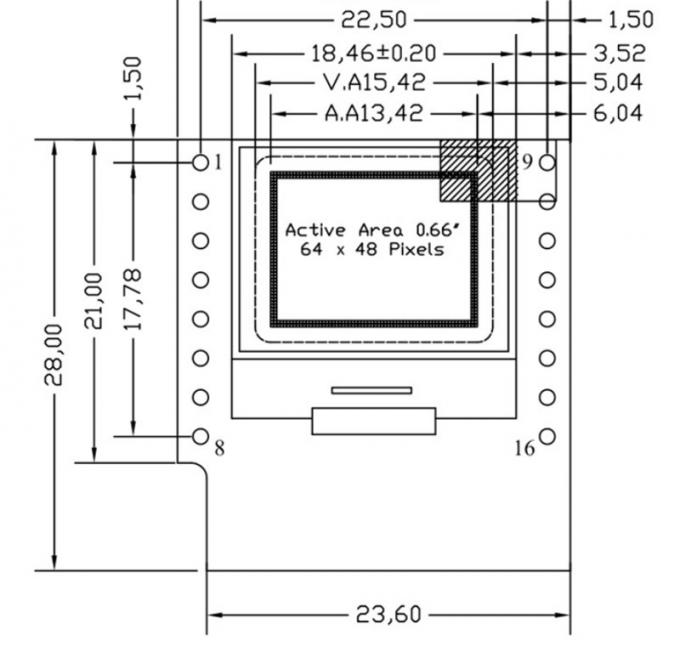

0.66 Inch IIC OLED Display 16 Pin Header Pin Product Drawing

0.66 Inch IIC OLED Display 16 Pin With 64x48 Pixels, White/Blue Fonts Ultra-Low Power OLED Display 0

0.66 Inch IIC OLED Display 16 Pin With 64x48 Pixels, White/Blue Fonts Ultra-Low Power OLED Display 1

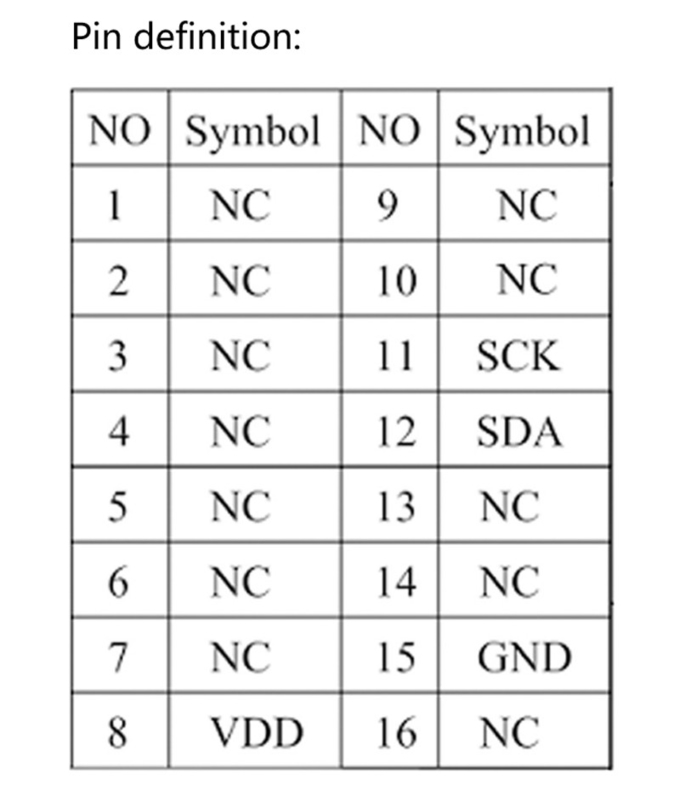

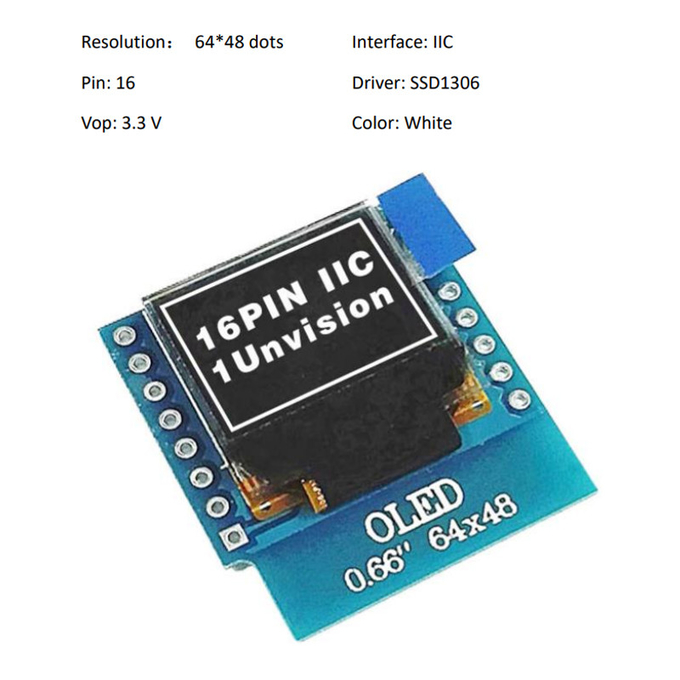

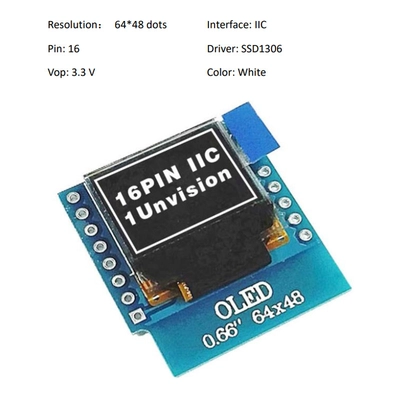

0.66 Inch IIC OLED Display 16 Pin Header Pin Product Image

0.66 Inch IIC OLED Display 16 Pin With 64x48 Pixels, White/Blue Fonts Ultra-Low Power OLED Display 2

Understand the Principle of OLED Display

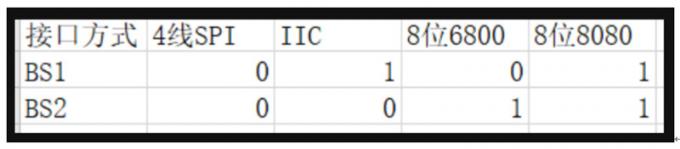

The OLED module has four working modes, namely 6800 and 8080 parallel interfaces, 4-wire serial SPI interface mode, and IIC interface mode. The relationship between the BS1/BS2 settings and the module interface mode is shown in the following table:

0.66 Inch IIC OLED Display 16 Pin With 64x48 Pixels, White/Blue Fonts Ultra-Low Power OLED Display 3

Additional information

Place of Origin

ShenZhen / China

Brand

ShenZhen Techstar Electronics

Model

SFOM066YZ16-6448WB-01

Certification

ISO9001 / ISO14000

Minimum Order Quantity

3 pcs

Price

Negotiable based on order lot quantity

Packaging Details

Standard Exportation Package

Delivery Time

3-5 weeks

Payment Method

L/C, Paypal, T/T, Western Union

Supply Ability

3000K pcs per month
