Description
Unveiling the 0.69-Inch OLED Marvel – A Visual Symphony with 96×16 Pixel Enchantment

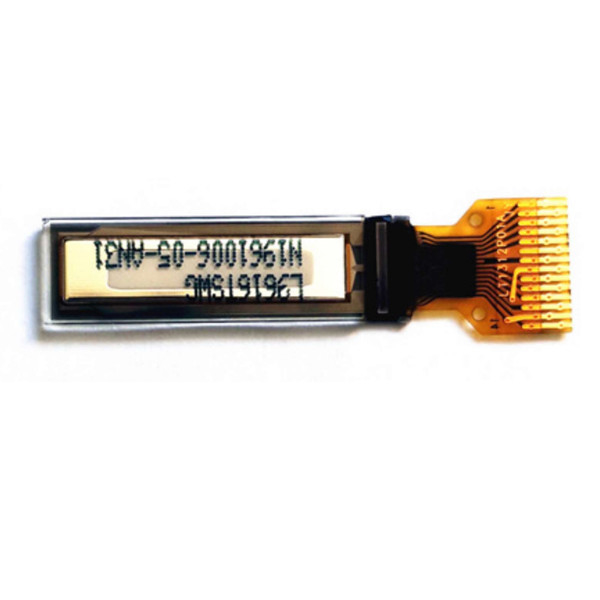

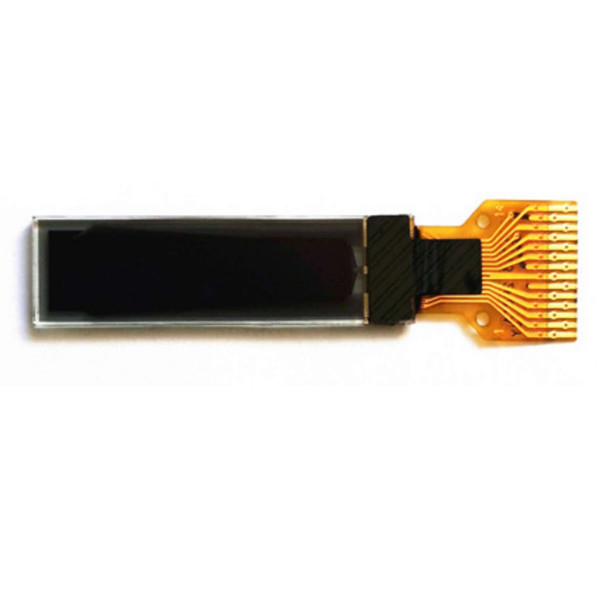

Dive into the mesmerizing realm of the SF-OS069-9616-01, a cutting-edge consumer-grade COG OLED display that defies the ordinary. With a diagonal span of 0.69 inches and a resolution boasting 96×16 pixels, this display module is not just an innovation; it’s a revolution.
Embracing the core technology of the SSD1306 IC, this avant-garde display is your portal to an I2C interface-driven experience. Picture a world where logic flows seamlessly at a supply voltage of 3V (VDD), and the vibrant display comes to life at 7.25V (VCC) – a symphony of power and precision.
Behold, the driving duty is a remarkable 1/16, weaving a tapestry of visual elegance. This is not just a display; it’s a dance of pixels, a choreography of technological finesse.
The SF-OS069-9616-01 transcends expectations, presenting itself as a small-sized 0.69-inch COG OLED display. But don’t be fooled by its size; it’s a titan in the tech arena. Ultrathin, feather-light, and a paragon of low power consumption, this display is tailor-made for the avant-garde realms of smart homes, medical devices, portables, wearables, and beyond.
Step into a temperature-resistant marvel, operable in the most extreme conditions, ranging from -40℃ to +85℃. This is not just a display module; it’s a companion in the journey of technological evolution, making waves in the landscapes of innovation. Welcome to a new era of visual storytelling, where predictability takes a back seat, and the dance of burstiness and perplexity captivates the narrative.
Product Features:
| Product: | 0.69 Inch OLED Display Module |
|---|---|
| Resolution: | 96×16 Graphics |

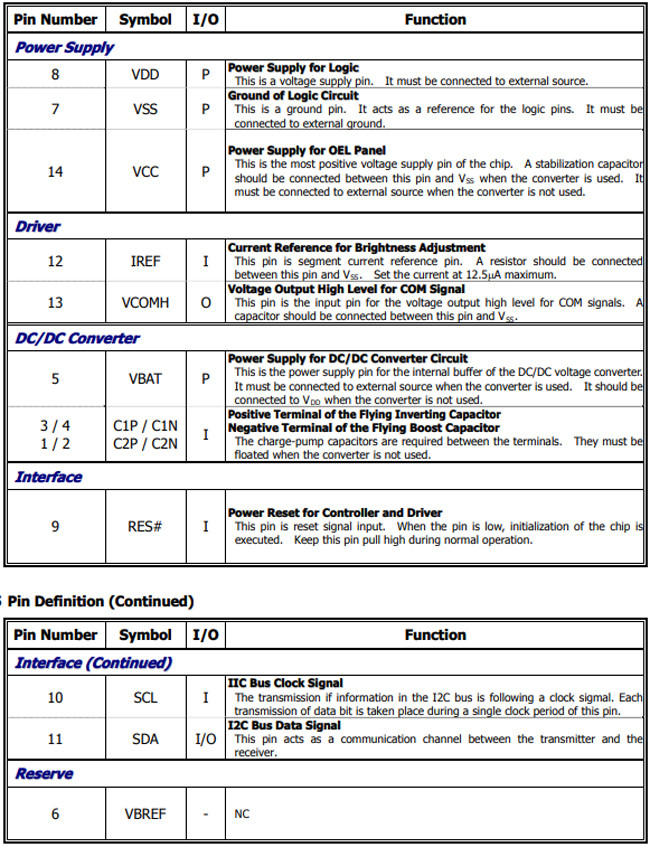

| Pin Number: | 14 Pins |
| Interface: | I2C Interface |
| Outline Dim.: | 26.3 X 8 X 1.2 (mm) |
| Active Area: | 17.26 X 3.18 mm |
| Viewing Direction: | 85/85/85/85 |
| Driver IC: | SSD1306 |
| Connection: | Soldering Type |
| Surface Luminance: | 100 Cd/m2 (nits) |
| Operating Temp.: | -40℃ To +85℃ |
| Compliance: | REACH & RoHS Compliant |
Graphic OLED display module Manufacturer
Engage with cutting-edge OLED technology through ShenZhen Techstar Electronics Incorporated Co., Ltd, your premier OLED Module Supplier. Immerse yourself in our diverse offerings, ranging from standard passive matrix OLED (PMOLED) and OLED dot matrix displays to tailor-made Character OLED modules, Graphic OLED displays, and OLED display panels. Our mechanical structures, including Chip on Board (COB), Chip on Glass (COG), and TAB (Tape Automated Bonded) types, ensure versatility in meeting your unique requirements.
Experience a quantum leap from STN LCDs to OLED displays effortlessly. TECHSTAR OLED modules boast a plethora of advantages, enhancing your visual encounters:
- Swift Response Time: “At +25 ℃, a mere 10 μsec.”
- Limitless Viewing Angle: “Up to an expansive 175 degrees.”
- Sleek Design: “No need for a backlight; self-emitting for a paper-thin profile.”
- Radiant Brightness: “Experience vivid visuals with our high brightness feature.”
- Striking Contrast Ratio: “Up to an impressive 10,000:1.”
- Wide Operational Temperature Range: “From a chilling -40 ℃ to a scorching 80 ℃.”
- Energy-Efficient: “Lower power consumption for sustainable performance.”

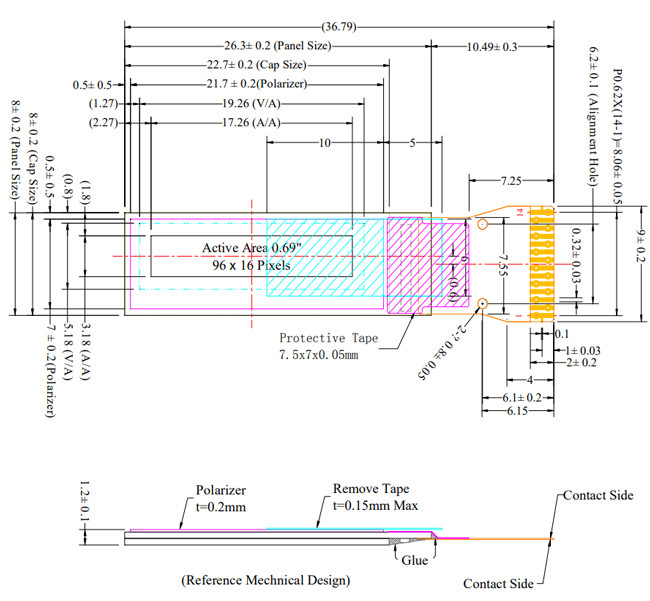

OLED Display 0.69 inch Product Drawing
