OLED 0.96 Inch, 128×64 Graphic OLED Dispaly Module Product Introduction
Product Quick Review
- Model No. SF-OS096HX-12864W-01
- 128×64 OLED Display, OLED Display 128×64
- Type: Graphic
- Structure: COG
- Size: 0.96″
- IC：SSD1306 (SH1106 optional)
- 3V power supply
- Interface: 6800, 8080, SPI, I2C
- Display Color: White / Yellow / Blue / Dual Color Yellow Blue
Description
Techstar SF-OS096HX-12864W-01 is a 128×64 resolution COG graphic OLED display module, diagonal size 0.96 inch. The model is designed as consumer grade which is having the advantage of competitive price. The module is built-in with SSD1306 IC; it supports 6800, 8080, I2C and 4-wire SPI serial interface. The supply voltage for logic is 3V, supply voltage for display is 7.5V, display with 50% check board current is 6mA @ 7.5Vcc (typical value), driving duty 1/64.
SF-OS096HX-12864W-01 this 0.96 inch COG Graphic OLED module is suitable for wearable device, smart home applications and etc. This module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.
Features
| Product: | 0.96 Inch OLED Display Module |
|---|---|
| Resolution: | 128×64 Graphics |
| Driver IC: | SSD1306BZ Or Equivalent |
| Outline Dim.: | 26.7×19.26×1.41 Mm |
| Display Color: | White and Blue Optional |
| Touch Screen: | Without Touch Screen (Optional) |
| Viewing Direction: | All Viewing Angles |
| Interface: | 6800, 8080, SPI, I2C |
| Connection: | Soldering/Hot-bar (customizable) |
| Pin Number: | 30 Pins (Can Be Customized) |
| Life Time: | 50,000 Hours @60cd/m2 |
| Compliance: | REACH & RoHS Compliant |
SAEF Technology is a professional OLED Module Supplier. We provide a wide range of standard passive matrix OLED (PMOLED) / OLED dot matrix display and custom design Character OLED modules, Graphic OLED displays and OLED display panels. Mechanical structure includes Chip on Board (COB), Chip on Glass (COG), and TAB (Tape Automated Bonded) types. Customers can upgrade applications from STN LCD to OLED displays easily. SAEF OLED modules are featured with all the important advantages:
- Faster response time “At +25 ℃ 10 μsec.”
- Unlimited viewing angle “Up to 175 degree”
- Thin – No need of backlight, self emitting
- High Brightness
- High contrast ratio “Up to 10,000:1”
- Wide Operation Temperature “-40 ℃ ~ 80 ℃”
- Lower power consumption

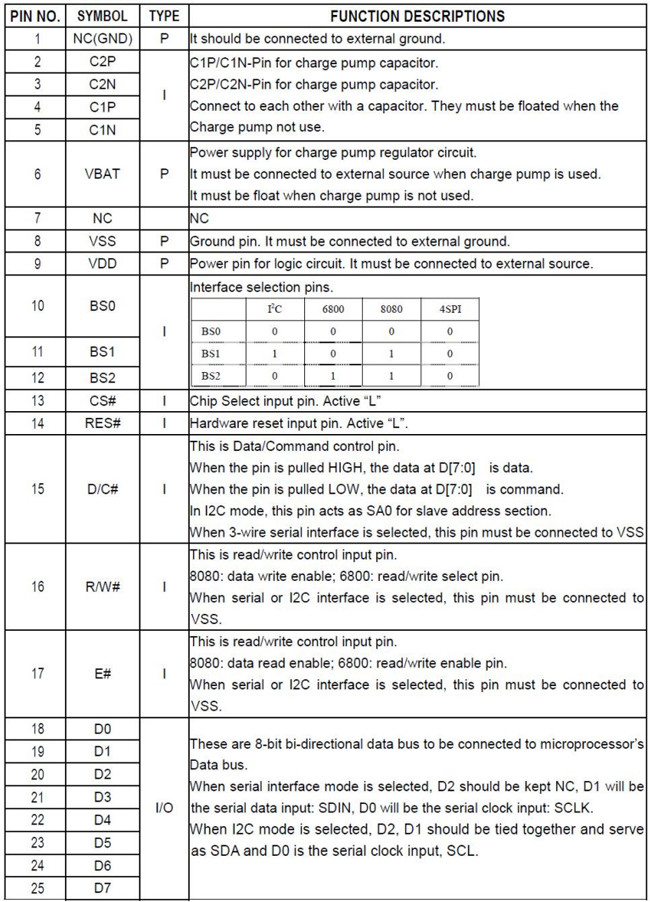

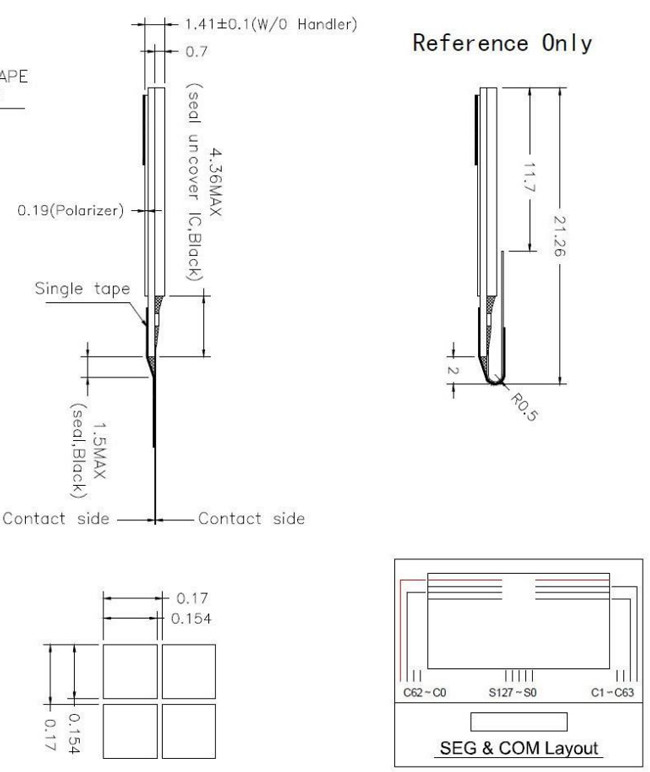

OLED 0.96 Inch, 128×64 Graphic OLED Dispaly Module Product Drawing

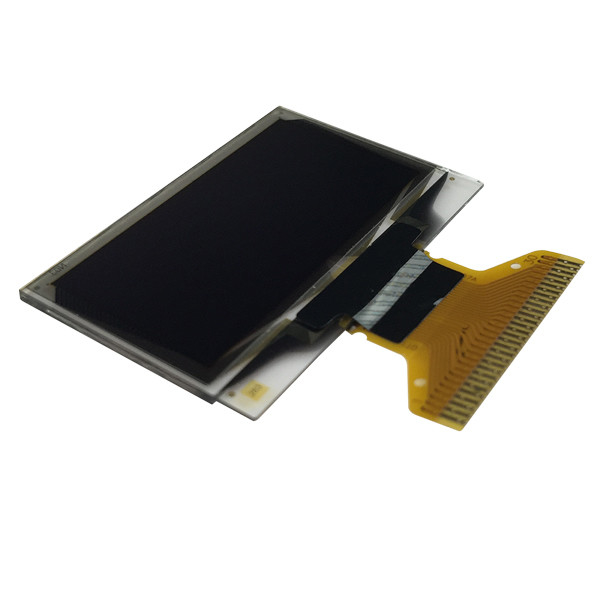

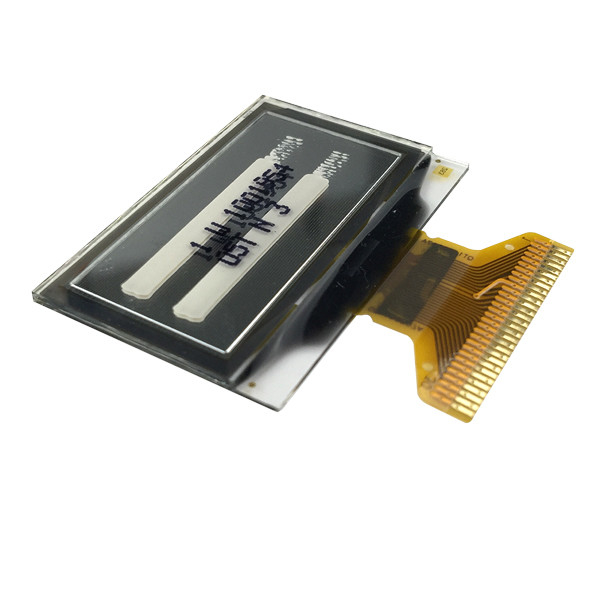

OLED 0.96 Inch, 128×64 Graphic OLED Dispaly Module Product Image
