Description
Unveiling the Innovation: 0.96 Inch OLED Display Module with 128×64 Pixel Excellence, SPI IIC Interface, and Seamless Plug-In Connection
Explore the cutting-edge SFOS096XZ-7120AP OLED Display Module, a graphic marvel boasting a resolution of 128×64 pixels within its compact 0.96-inch diagonal display. Elevating expectations, this OLED model transcends with its industrial-grade design, offering a competitive price advantage. Embedded with the advanced SSD1315 IC, it effortlessly supports both I2C and SPI interfaces. With a logic supply voltage of 2.8V, display supply voltage of 9V, and an operating current for VDD at 160μA, its driving duty stands at an impressive 1/64.
Versatile and Dynamic, the SFOS096XZ-7120AP OLED Display Module finds its stride in applications like wearable devices, smart home solutions, and beyond. Operating seamlessly in temperatures ranging from -40℃ to +70℃, with storage capabilities extending from -40℃ to +85℃, it ensures reliability and functionality across diverse environments. Embrace innovation with this exceptional display module that defies the ordinary.
| Product: | OLED Display Module 0.96″ |
| Number Of Pixels: | 128×64 Pixels |
| Driver IC: | SSD1315 Or Equivalent |
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome (white) |
| Drive Duty: | 1/64 Duty |
| Active Area: | 21.74 X 11.175 (mm) |
| Panel Size: | 24.7 X 16.6 X 1.3 (mm) |
| Pixel Pitch: | 0.17 X 0.175 (mm) |
| Pixel Size: | 0.15 X 0.15 (mm) |
| Interface: | I2C, SPI Optional |
| Viewing Direction: | All Viewing Angles |
| Connection: | Plug-in |
| Pin Number: | 30 Pins (Can Be Customized) |
| Operating Temp.: | -40C – +70C |
| Storage Temp.: | -40C – +85C |
| Life Time: | 50,000 Hours @60cd/m2 |
| Compliance: | REACH & RoHS Compliant |

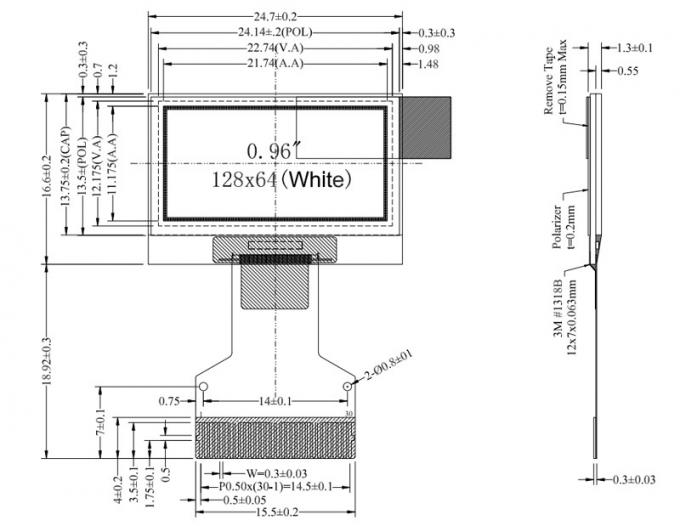

128×64 Graphic OLED Display 0.96″ Product Drawing
Absolute Maximum Rating
Optical Characteristics
* Optical measurement taken at VDD1 = 2.8V, VPP = 8.0V & 7.4V.Software configuration follows Section 4.4 Initialization.
Contents of Reliability Tests
* The samples used for the above tests do not include polarizer.
* No moisture condensation is observed during tests.

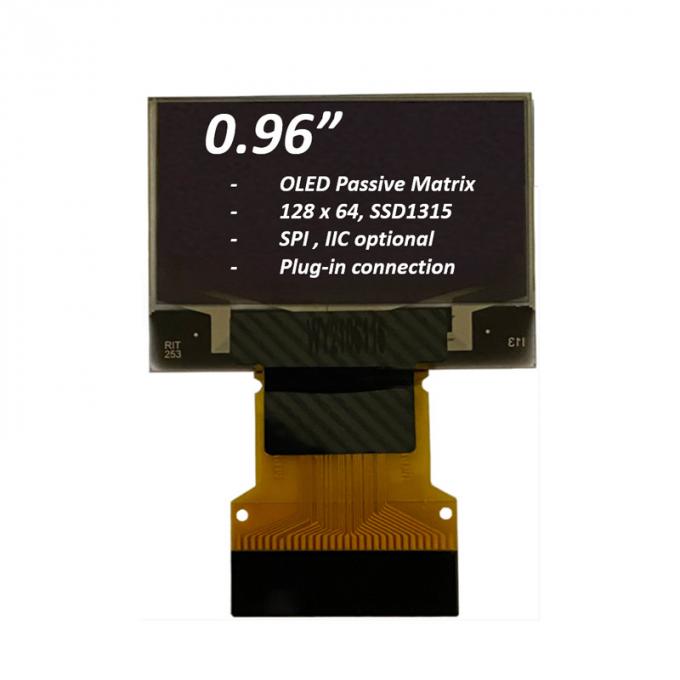

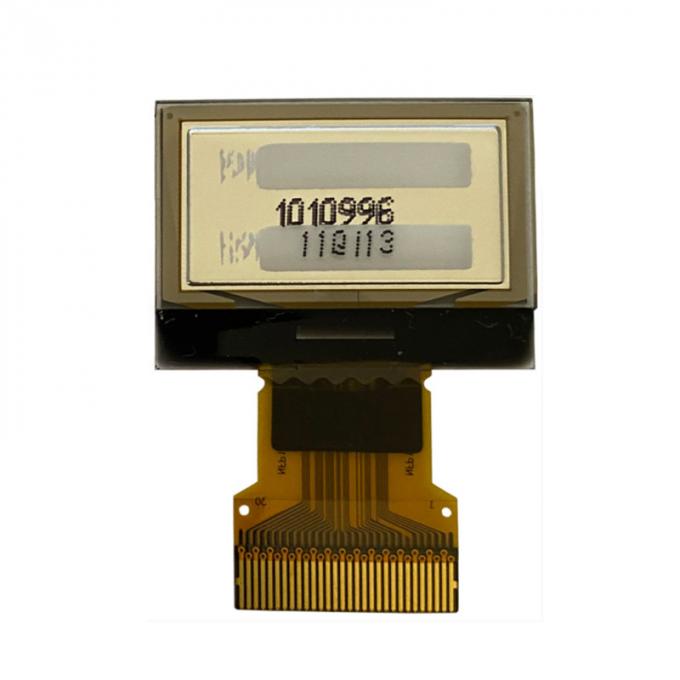

128×64 Graphic OLED Display 0.96″ Product Image
