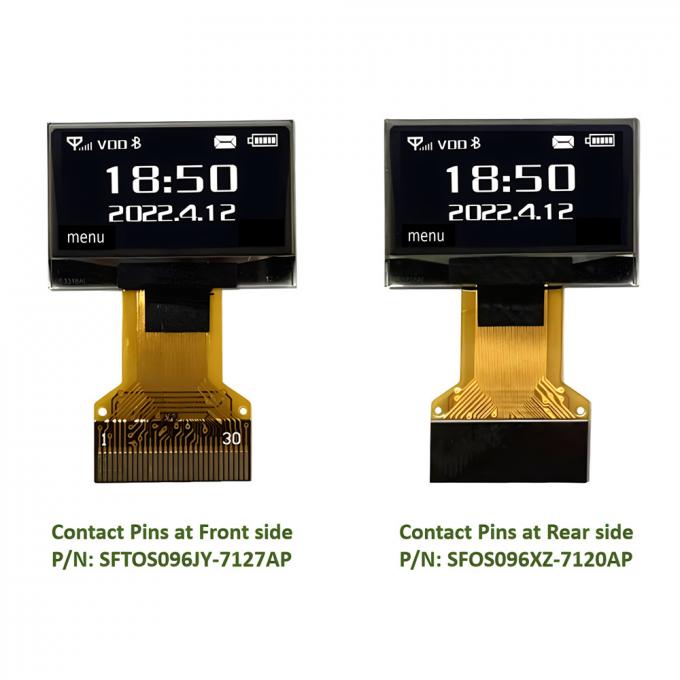

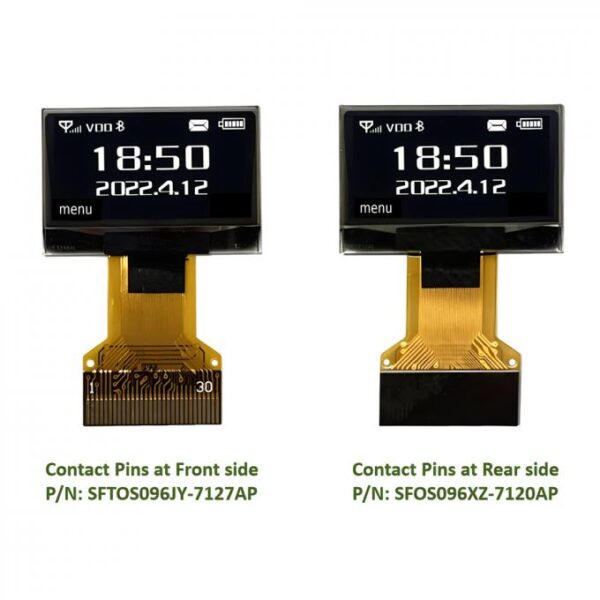

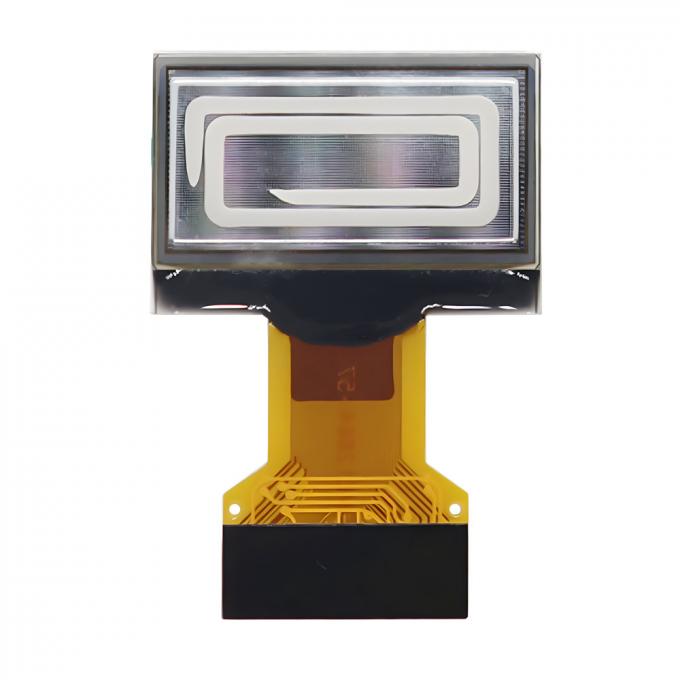

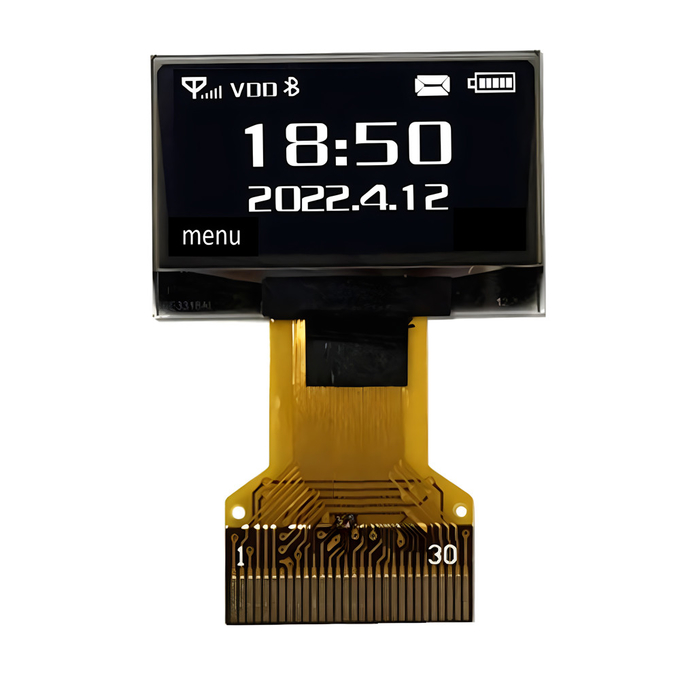

0.96 inch Thin OLED Display, OLED SPI/IIC Display 0.96″ Product Introduction
Product Quick View
- Model No. SFOS096XZ-7127AP
- Thin OLED Display, 128 x 64 Dot Matrix
- 0.96″ OLED Display, OLED 0.96″
- Suitable for wearable device
- Type: Graphic
- Structure: COG
- 3V Power supply
- 1/64 duty
- Interface: 6800, 8080, SPI, I2C
- Display Color: White / Yellow / Blue
Description
Techstar’s SFOS096XZ-7127AP OLED Display Module is a 128×64 resolution COG graphic display, diagonal size 0.96 inch. The OLED model is designed as industrial grade which is having the advantage of competitive price. The module is built-in with SSD1315 IC; it supports I2C and SPI interface. The supply voltage for logic is 2.8V, supply voltage for display is 9V, Operating current for VDD is 160μA, driving duty 1/64.
SFOS096XZ-7127AP OEL Display Module is suitable for wearable device, smart home applications and etc. This module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.
Product Features
| Product: | 0.96 inch Graphic OLED Display |
| Number Of Pixels: | 128×64 Pixels |
| Driver IC: | SSD1315 Or Equivalent |
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome (white) |
| Drive Duty: | 1/64 Duty |
| Active Area: | 21.74 X 11.175 (mm) |
| Panel Size: | 24.7 X 16.6 X 1.3 (mm) |
| Pixel Pitch: | 0.17 X 0.175 (mm) |
| Pixel Size: | 0.15 X 0.15 (mm) |
| Interface: | I2C, SPI Optional |
| Viewing Direction: | All Viewing Angles |
| Connection: | Plug-in |
| Pin Number: | 30 Pins (Can Be Customized) |
| Operating Temp.: | -40C – +70C |
| Storage Temp.: | -40C – +85C |
| Life Time: | 50,000 Hours @60cd/m2 |
| Compliance: | REACH & RoHS Compliant |

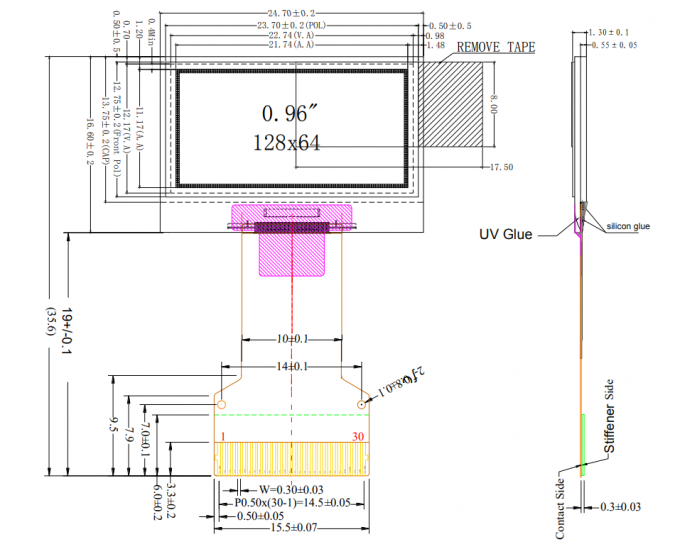

0.96 inch Thin OLED Display, OLED SPI/IIC Display 0.96″ Product Drawing

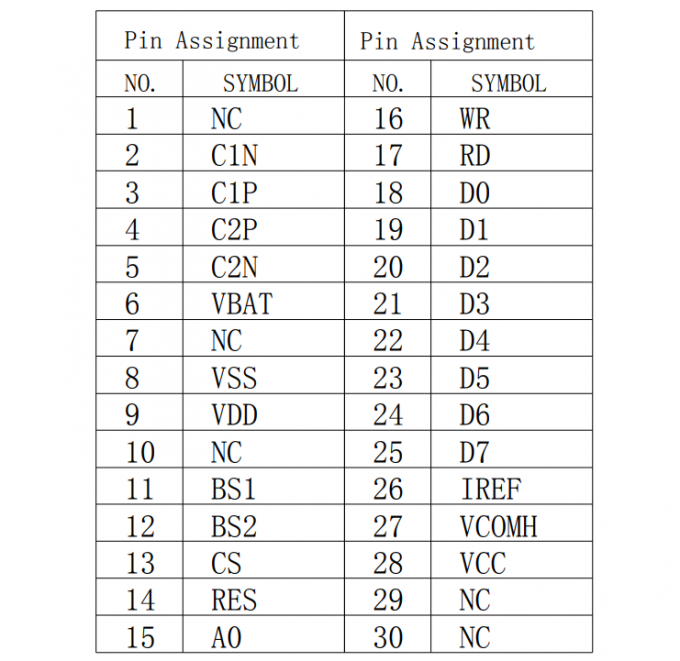

Pin Definition

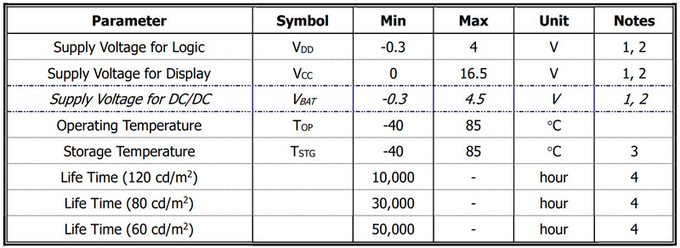

Absolute Maximum Rating

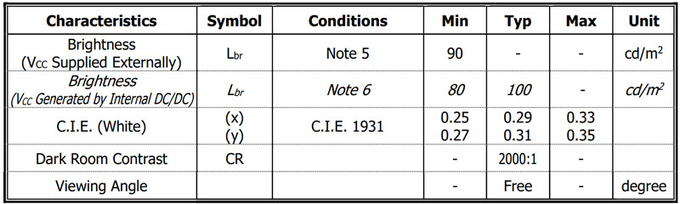

Optical Characteristics
* Optical measurement taken at VDD1 = 2.8V, VPP = 8.0V & 7.4V.Software configuration follows Section 4.4 Initialization.

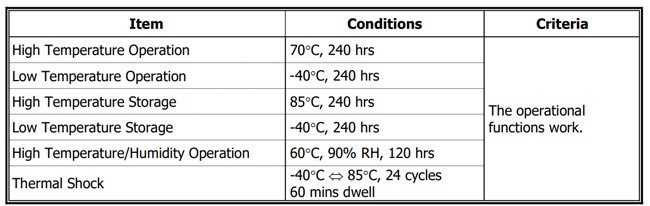

Contents of Reliability Tests
* The samples used for the above tests do not include polarizer.
* No moisture condensation is observed during tests.
