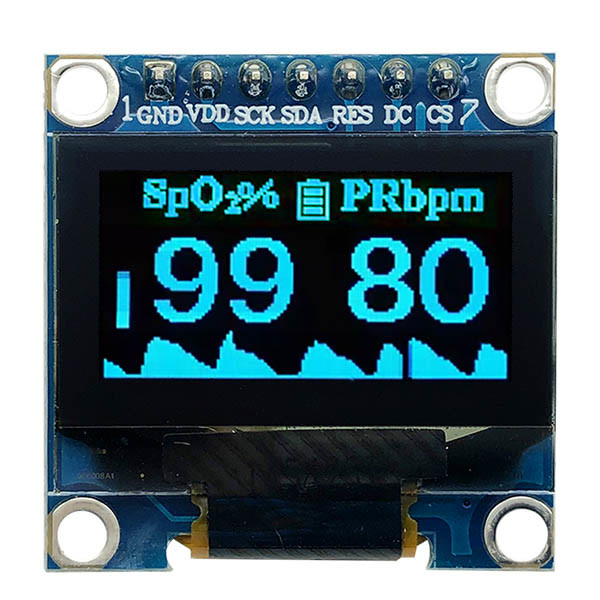

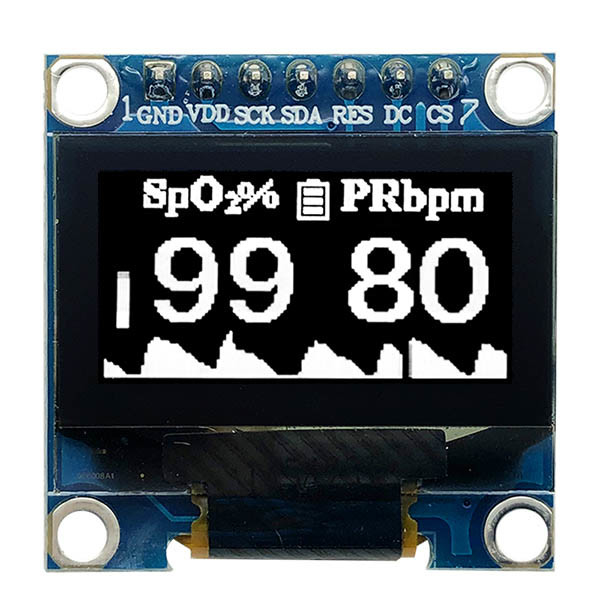

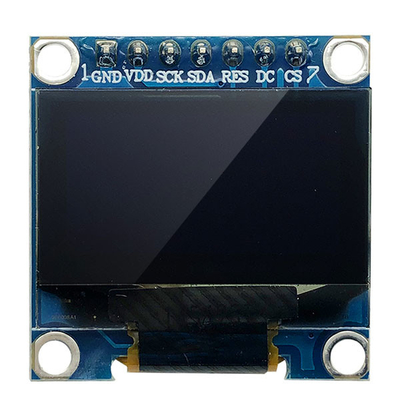

0.96 Inch OLED Display SSD1306 Controller 7 Pin White or Blue Fonts SPI 128×64 3V PMOLED

Unveiling the SFOM096YZ7-12864WB-01: A 0.96-Inch Marvel with SSD1306 Controller, 7-Pin Configuration, and Striking White and Blue Fonts

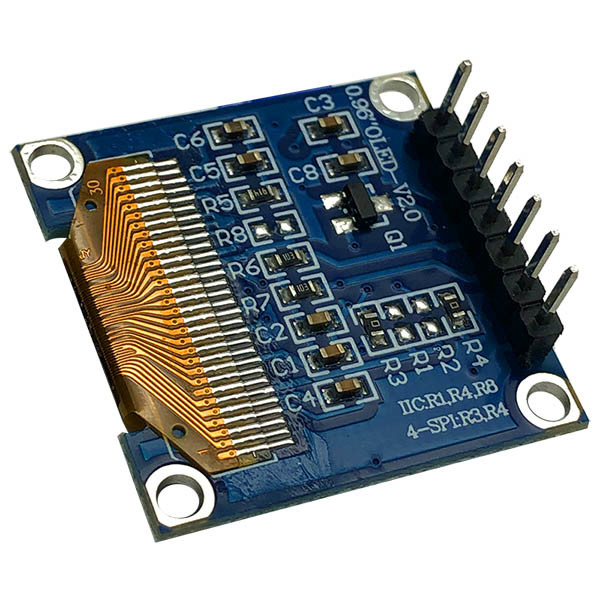

Embark on a technological journey with the SFOM096YZ7-12864WB-01, an enhanced iteration of the SF-OS096YZ7-12864WB-01 featuring a convenient PCB board on the module. With a diagonal size of 0.96 inches and a pixel-packed display of 128×64, this module boasts not only sleek aesthetics but also practicality. The PCB board, equipped with four mounting holes, simplifies the integration of modules into diverse applications, ensuring a seamless experience for our customers.

At its core, the SFOM096YZ7-12864WB-01 module houses the powerful SSD1306 IC, offering versatility through its support for a 4-wire SPI interface and an optional I2C interface. Driving duty at 1/64, the logic supply voltage ranges from 3.3V to 5V, with I/O levels gracefully transitioning from 5V to 3V courtesy of an efficient conversion circuit. The display, boasting 50% check board current, operates at a mere 80mA @3.3VDD (typical value). Connect with ease using the 7-header pins or opt for the optional 4-pin header pins connection.

This OLED marvel extends its reach across various domains, making it an ideal choice for smart home applications, medical devices, smart control systems, meters, and beyond. Embrace its operational prowess in temperatures ranging from a chilly -40℃ to a scorching +85℃.

Key Features:

1. Visual Brilliance: Immerse yourself in a 0.96-inch mini OLED display, featuring an impressive 128×64 resolution and powered by the SSD1306 chipset.
2. Efficiency Redefined: Experience ultra-low power consumption, with a mere 0.08W for full-screen lighting.
3. Installation Simplified: Take advantage of the four mounting holes strategically placed for easy and hassle-free installation.
4. Interface Flexibility: Seamlessly switch between SPI and I2C interfaces, adapting to your specific needs.
5. Universal Compatibility: Unleash the potential with support for various control chips, ensuring full compatibility with Arduino 51 series, MSP430 series, STM32/2 CSR IC, and more.
6. Power Play: Operate within the power voltage range of DC 3V – 5V, giving you the flexibility and stability your project deserves.

Explore the cutting-edge world of display technology with ShenZhen Techstar Electronics Incorporated Co., Ltd, your premier OLED Module Supplier. Our repertoire boasts a diverse array, ranging from standard passive matrix OLED (PMOLED) and OLED dot matrix displays to tailor-made Character OLED modules, Graphic OLED displays, and OLED display panels. Delve into innovation with mechanical structures including Chip on Board (COB), Chip on Glass (COG), and TAB (Tape Automated Bonded) types.

Upgrade your applications seamlessly from STN LCD to OLED displays, unlocking a realm of advantages with TECHSTAR OLED modules:

• Faster Response Time: Experience a rapid response time of “At +25 ℃ 10 μ”
• Unlimited Viewing Angle: Immerse yourself with a viewing angle of up to 175 degrees.
• Thin Design: Embrace the sleekness with no need for a backlight; our modules are self-emitting.
• High Brightness: Illuminate your visuals with our high brightness OLED display modules.
• High Contrast Ratio: Witness stunning clarity with a contrast ratio of up to 10,000:1.
• Wide Operation Temperature: Function seamlessly across diverse environments with an operational range from -40 ℃ to 80 ℃.
• Lower Power Consumption: Optimize energy usage with TECHSTAR OLED modules.
