1.27 Inch 128×96 AMOLED UG-2896GDEAF11 SSD1351 Controller 30 Pins ZIF Connection For Medical Device

Unveiling the 1.27 Inch AMOLED Wonder – Model UG-2896GDEAF11 with SSD1351 Control, 128×96 Resolution, and a 30-Pin ZIF Connection for Cutting-Edge Medical Devices!

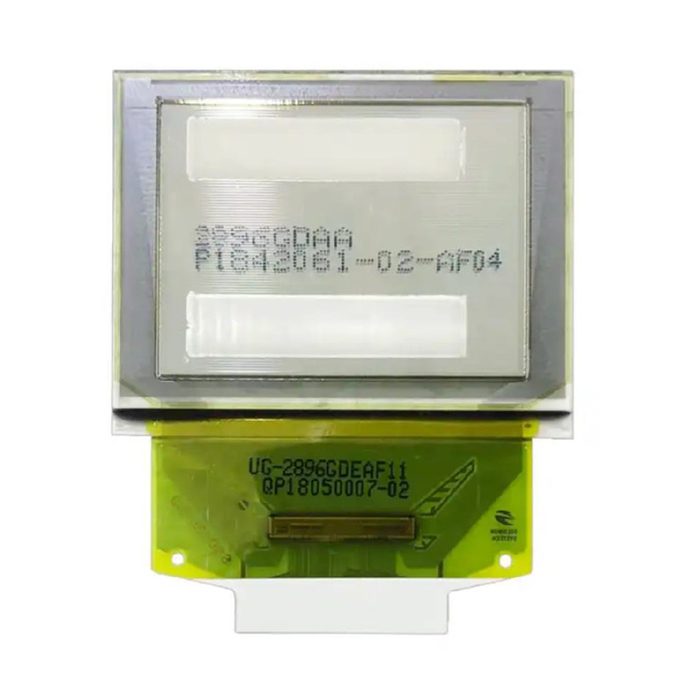

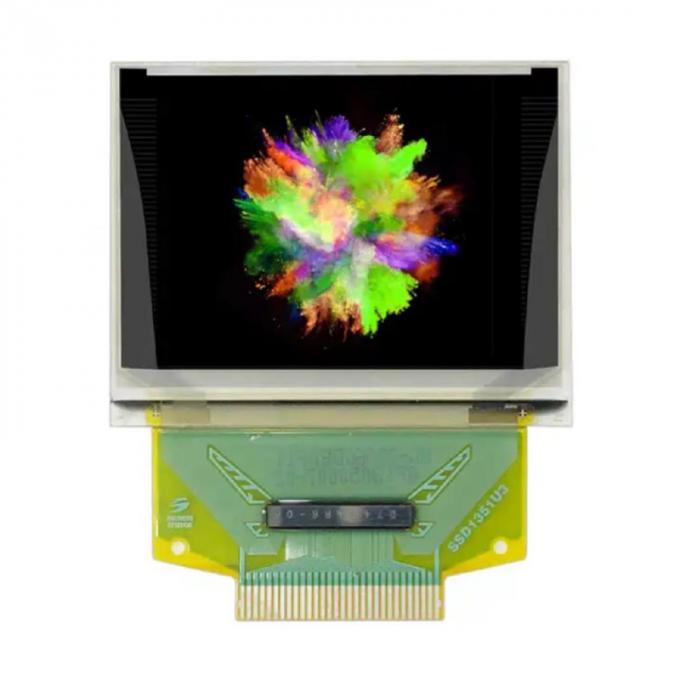

Behold the marvel of Organic Light-Emitting Diode (OLED) technology, a beacon of brilliance and clarity, graced with heightened image quality and lightning-fast responsiveness. This 1.27-inch OLED display, bearing the illustrious model number UG-2896GDEAF11, is a symphony of 128 RGB x 96 dots, each a pixel of its own.

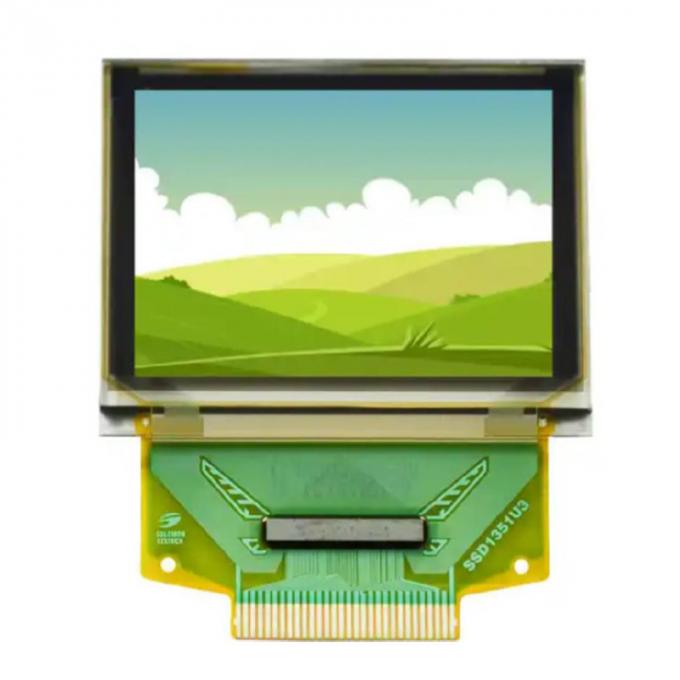

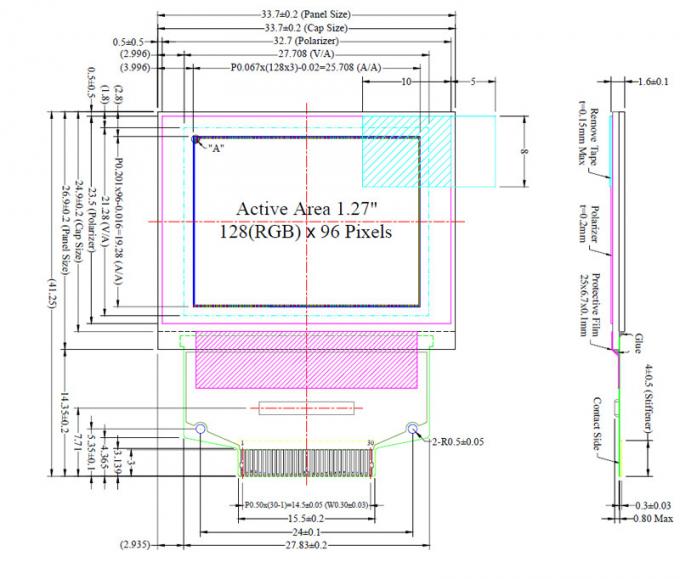

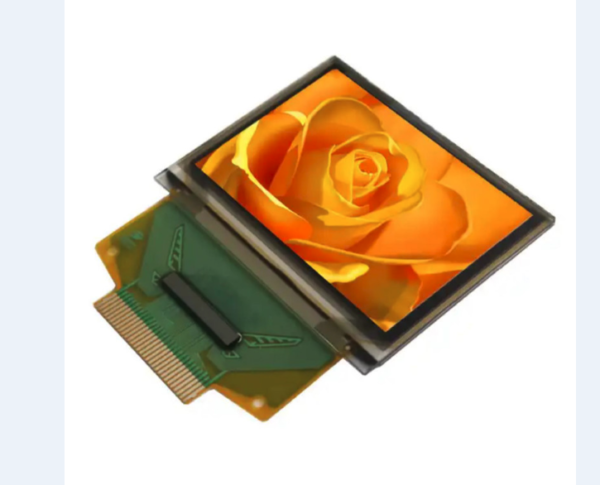

Elegantly lightweight, power-efficient, and compact, this OLED module presents a myriad of interface options, defaulting to SPI, Parallel, and I2C interfaces. The active area spans 1.27 inches diagonally, housed within dimensions of 33.70 × 26.90 × 1.60 mm, with the active area itself measuring 25.708 × 19.28 mm. An embedded SSD1351 IC ensures a remarkable contrast ratio of 20,000:1, with a logic supply voltage range of 1.65V-3.5V (typical value 3V).

Embarking on a journey beyond conventional displays, this 1.27-inch OLED finds its calling in diverse applications, from advanced medical devices to POS systems, from the realm of white goods to the domains of home applications and industrial instruments. It seamlessly integrates into automation, audio/visual display systems, personal care appliances, household goods, and even graces the dashboards of automobiles, bringing dynamic information displays to life!

Now, let’s reimagine the provided information:

Operating Voltages:

• Supply Voltage for Operation (VDD): -0.3 – 4 V
• Supply Voltage for I/O Pins (VDDIO): -0.3 – 4 V
• Supply Voltage for Display (VDDH): -0.3 – 15 V

Module Specifications:

• Lifetime (80 cd/m2): 10,000 hours
• All voltage references are based on “VSS = 0V.”

Important Guidelines:

• The module may experience permanent damage if operated beyond the specified absolute maximum ratings.
• For optimal functioning, it is recommended to use the module under the conditions outlined in Section 3, “Optics & Electrical Characteristics.” Deviating from these conditions may lead to module malfunction and compromise reliability.

Temperature Considerations:

• The defined temperature ranges exclude the polarizer, with the polarizer’s maximum withstand temperature set at 80°C.

Operational Parameters:

• VCC: 14.0V, Ta: 25°C, 50% Checkerboard
• Software configuration aligns with Section 4.5 Initialization.
• End of lifetime is defined as 50% of the initial brightness being reached.
• The average operating lifetime at room temperature is estimated through accelerated operation under high-temperature conditions.
