Description
Unveiling the SFOS130JY-7130AP OLED Display Module—a marvel boasting a 1.3-inch monochrome OLED display with a resolution of 128×64 pixels. This COG graphic display, designed with industrial-grade precision, leverages its competitive pricing as a distinctive advantage. Housing the advanced CH1116G IC, it extends compatibility with 8-bit 68XX/80XX Parallel, 3/4-wire SPI, and I2C interfaces. With a logic supply voltage of 4V, a display supply voltage of 14V, and a driving duty of 1/64, this module operates seamlessly.
But that’s not all—enter the realm of temperature resilience. The SFOS130Y-7130AP OLED Display Module fearlessly embraces operating temperatures spanning from a chilly -40℃ to a scorching +80℃, with storage capabilities mirroring this robust range. This is not merely a display; it’s a testament to technological excellence, where complexity meets competitive pricing in a dance of diversity.
Revamped Features for Innovative OLED Display
- Unveiling a cutting-edge 1.3-inch mini OLED display, boasting a remarkable 128X64 resolution and harnessing the power of the CH1116 chipset for unparalleled performance.
- Experience brilliance with our 1.3-inch OLED display module, featuring ultra-low power consumption at a mere 0.08w for full screen illumination.
- Introducing the customizable micro OLED display, a 1.3-inch marvel with a plugging type design. Tailor it to your needs with personalized FPC options, including length, interface, and plugging type connection.
- Versatile compatibility defines our 1.3-inch 128×64 OLED product, crafted to seamlessly integrate with 8-bit 68XX/80XX, 3/4-wire SPI, and I2C interfaces.
- Immerse yourself in an expansive viewing experience with the 1.3-inch OLED display module, offering an infinite viewing angle of up to 175 degrees.
- Elevate your technology with the OLED 1.3 inch 128×64 product, perfectly suited for wearable devices, smart home applications, and more.
- Experience brilliance with our SPI/IIC OLED 1.3-inch product, featuring a self-illuminating design that eliminates the need for a backlight. Revel in high-contrast, bright, and clear dots, ensuring readability even with tiny fonts.
- Embrace speed with the 1.3-inch OLED display, boasting a rapid response time of “10 microseconds at +25 °C.”
- Unleash the power of the 1.3-inch mono OLED product, delivering exceptional brightness and an impressive contrast ratio of up to 2000:1.
- Championing sustainability, our low-cost 1.3-inch OLED product not only excels in performance but also reduces power consumption, contributing to a decrease in CO2 emissions.
| Product: | 1.3 Inch OLED Display Module |
| Number Of Pixels: | 128×64 Graphics |
| Display Mode: | Passive Matrix |
| Driver IC: | CH1116G Or Equivalent |
| Display Color: | Mono White, Blue, Optional |
| Drive Duty: | 1/64 Duty |
| Panel Size: | 34.5 X 23.0 X 1.4 (mm) |
| Active Area: | 29.42 X 14.7 (mm) |
| Pixel Pitch: | 0.23 X 0.23(mm) |
| Pixel Size: | 0.21 X 0.21(mm) |
| Interface: | 8-bit 68XX/80XX, 3/4-wire SPI, I2C |
| Pin Number: | 30 Pins |
| Viewing Direction: | All Viewing Angles |
| Connection: | Plug-in Connection |
| Life Time: | 50,000 Hours @60cd/m2 |
| Compliance: | REACH & RoHS Compliant |

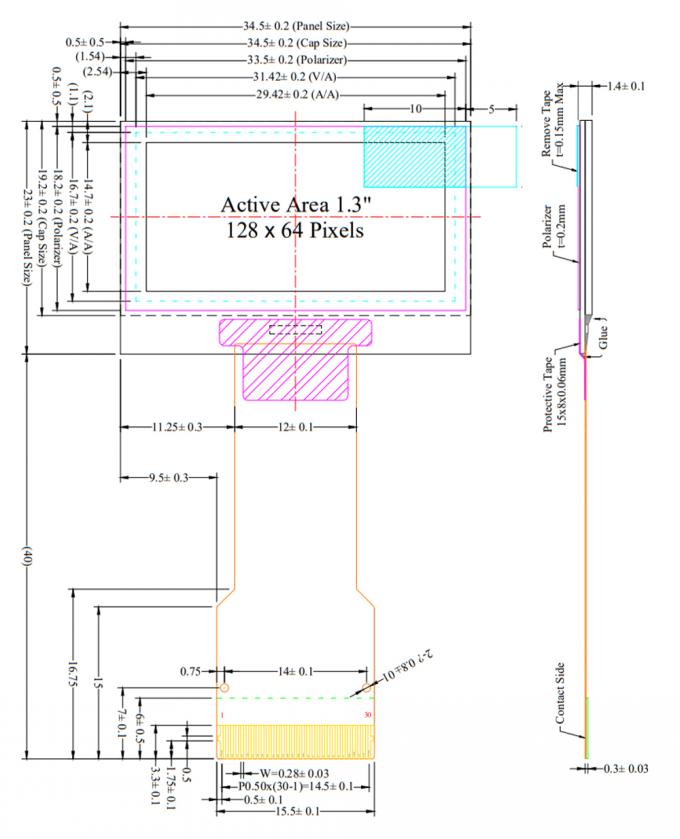

1.3 inch monochrome OLED display module 128×64 pixel Product Drawing

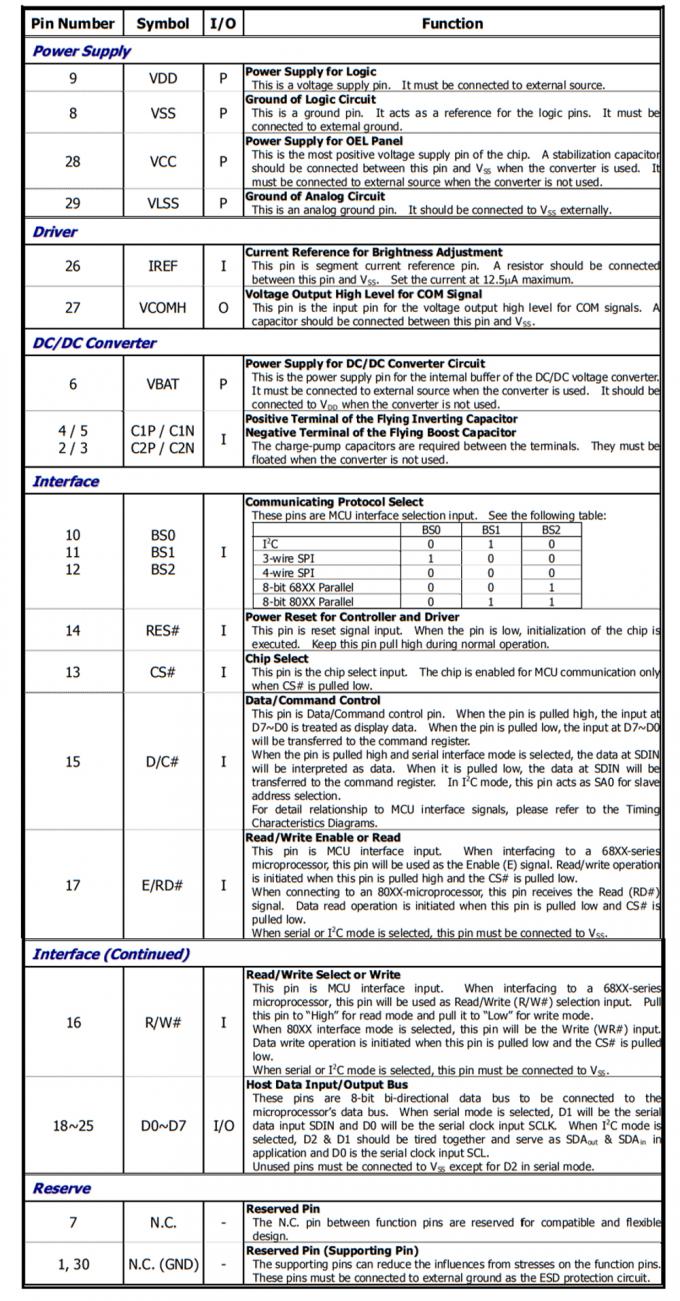

Pin Definition
Absolute Maximum Ratings
Note 1: All the above voltages are on the basis of “VSS = 0V”.
Note 2: When this module is used beyond the above absolute maximum ratings, permanent breakage of the module may occur. Also, for normal operations, it is desirable to use this module under the conditions according to Section 3. “Optics & Electrical Characteristics”. If this module is used beyond these conditions, malfunctioning of the module can occur and the reliability of the module may deteriorate.
Note 3: The defined temperature ranges do not include the polarizer. The maximum withstood temperature of the polarizer should be 80°C.
Note 4: VCC = 12.0V, Ta = 25°C, 50% Checkerboard. Software configuration follows Section 4.4 Initialization. End of lifetime is specified as 50% of initial brightness reached. The average operating lifetime at room temperature is estimated by the accelerated operation at high temperature conditions.
Optics Characteristics
DC Characteristics

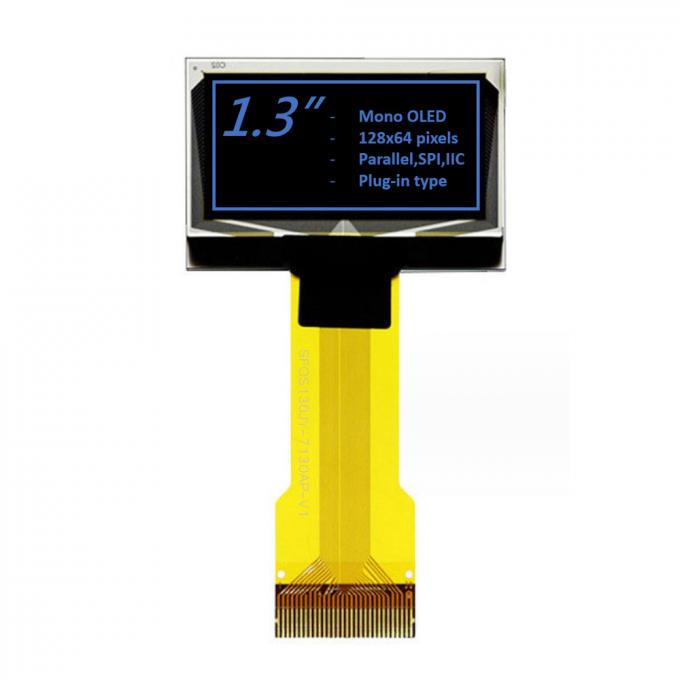

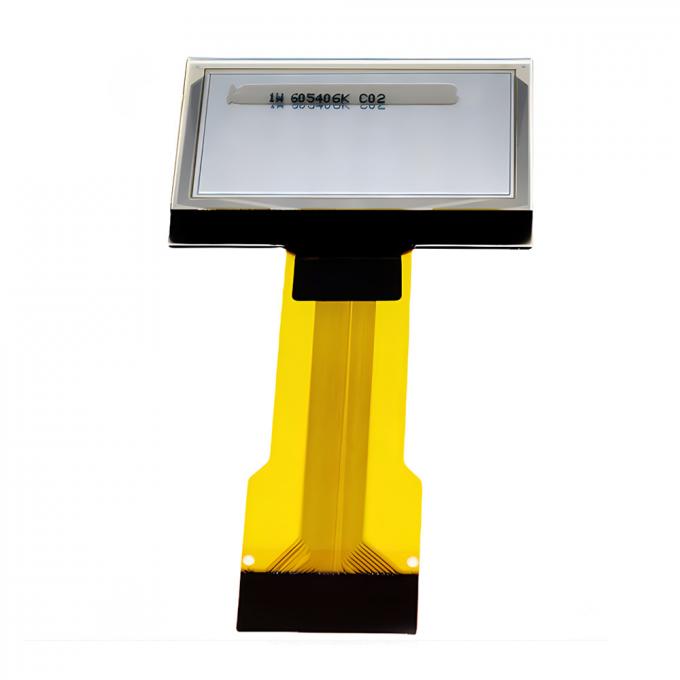

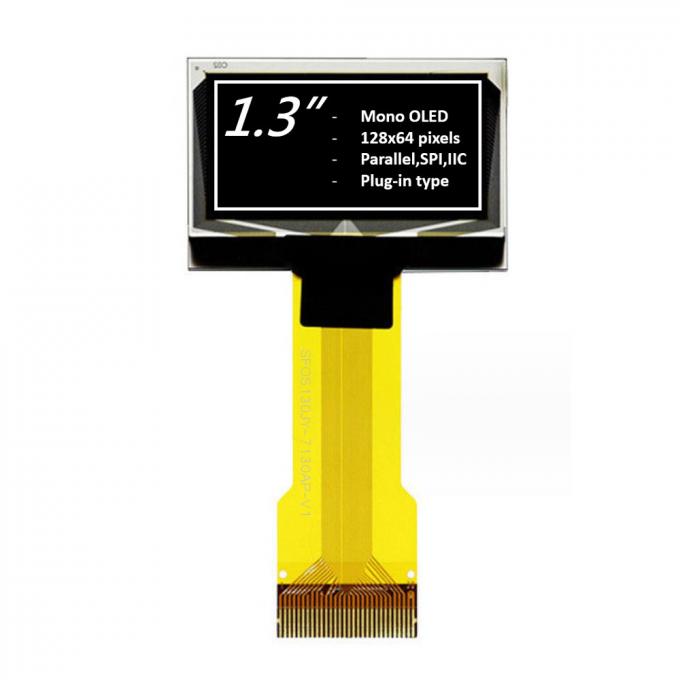

1.3 inch monochrome OLED display module 128×64 pixel Product Image
