Explore the brilliance of our 1.44-inch TFT LCD display, a captivating 1.5-inch square screen boasting a resolution of 128×128 pixels with an 8-bit MPU plugging type.
Description of 1.44-inch (1.5″) TFT LCD Display Screen:
Discover the SF-TC144H-8163A-T, a cutting-edge 1.44-inch square mode TFT LCD module featuring a Resistive Touch Screen (RTP). This module showcases a dynamic 128×128 pixel resolution with an MPU 8-bits interface. Equipped with the ST7735 driver IC (compatible with ILI9163C IC), it operates flawlessly within a supply voltage range for analog (Vcc) from 2.6V to 3.3V, with a typical value of 2.8V. Notably, the module sports an anti-glare surface panel, ensuring optimal visibility with a view direction of 12 o’clock and a grayscale inversion at 6 o’clock.
The SF-TC144H-8163A-T module defines excellence with its square TFT-LCD design, offering a luminosity of 200 nits (typical value). Alternatively, opt for the touch-free experience with the SF-TC144H-8163A-N variant. Operating seamlessly in temperatures ranging from -20°C to +70°C and storage temperatures from -30°C to +80°C, this module guarantees performance in diverse environments. Elevate your visual experience with our innovative TFT LCD display module.
Product Features:
| Product: | 1.44 Inch TFT Display | Touch Screen: | Resistive Touch Panel |
|---|---|---|---|
| Resolution: | 128×128 | Cover Glass Dimension: | Customizable |
| Viewing Direction: | 12:00 | Interface: | MPU 8 Bit |
| Pin Number: | 24 Pins | Connection: | ZIF FPC |
| Surface Luminance: | 200 Cd/m2 (nits) | LED Lifetime: | 40,000 Hours |
| Driver IC: | ST7735 | Compliance: | REACH & RoHS Compliant |
1.44 inch ( 1.5″ inch) Resistive Touchscreen TFT LCD Display Product Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | GND | I | Ground |
| 2 | IOVCC | I | Power Supply 1.8V/2.8V Voltage |
| 3 | VDD | I | Power Supply 2.8V Voltage |
| 4 | WR | I | Write strobe signal input pin |
| 5Â | DB0 | I/O | Display Data I/O |
| 6Â | DB2 | I/O | Display Data I/O |
| 7Â | DB4 | I/O | Display Data I/O |
| 8Â | DB6 | I/O | Display Data I/O |
| 9Â | CS | I | Register select input pin |
| 10 | RESET | I | Reset Pin |
| 11 | DB7 | I/O | Display Data I/O |
| 12 | DB5 | I/O | Display Data I/O |
| 13 | DB3 | I/O | Display Data I/O |
| 14 | DB1 | I/O | Display Data I/O |
| 15 | RS | I | Register select signal |
| 16 | /RD | I | Read strobe signal input pin |
| 17 | LED-A | O | LEDÂ Anode |
| 18 | LED-K | O | LED Cathodes |
| Â | Â |
Maximum Absolute Limit
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | Â Â Â Â Â Â Â Â 1.6~3.3 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -10 to 60 | °C |
| Storage temperature | Tstg | -20 to 60 | °C |
| Â |
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test Condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |

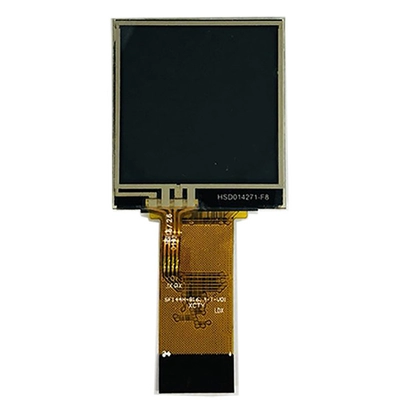

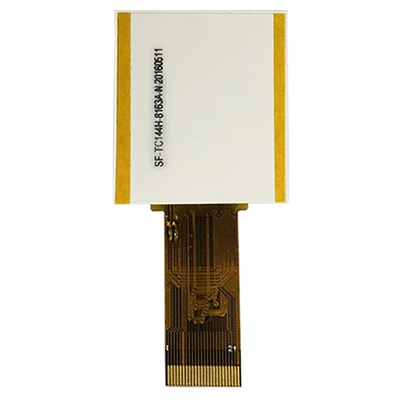

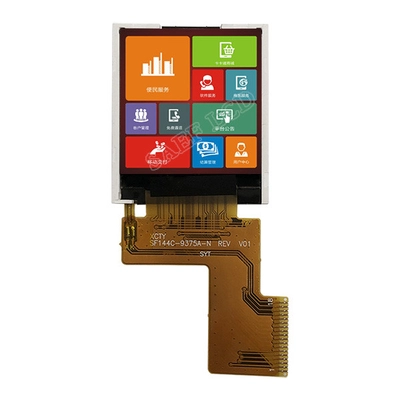

1.44 inch ( 1.5″ inch) Resistive Touchscreen TFT LCD Display Product Image
