1.5″ inch OLED, 128×128 OLED Display Description
Techstar SFOS150YZ-128128WB-01 is a 1.5 inch OLED (Organic Light Emitting Diode) display with 128×128 dots resolution. This 1.5 oled module is built in controller SSD1327 oled IC; it supports 8-bit 6800 and 8080, 4-wire SPI and I2C interfaces. SAEF provides ZIF FPC and Hot-bar versions for customers to choose the suitable module for your application.
SFOS150YZ-128128WB-01 is a COG structure OLED display this OLED module is lightweight, low power and very thin, it is suitable for wall / meter devices, home applications, POS system, Cloud/IoT system, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instrument, etc. The OLED module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.
Pin Definition:
- Pin1, VSS,  Ground.
- Pin2, VCC   Power supply for analog circuit.
- Pin3, VCOMH Com Voltage Output. A capacitor should be connected between this pin and VSS.
- Pin4, GPIO  General I/O port.
- Pin5, VCI    Power supply for logic circuit.
- Pin6, VDD   A capacitor should be connected between this pin and VSS.
- Pin7, BS1   MCU bus interface selection pins.
- Pin8, BS2   MCU bus interface selection pins.
- Pin9, VSS   Ground.
- Pin10, IREFÂ Â Â Reference current input pin. A resistor should be connected between this pin and VSS.
- Pin11, CS#Â Â Â Chip select input.
- Pin12, RES#  Reset signal input. When it’s low, initialization of SSD1327 is executed.
- Pin13, D/CÂ Â Â Data/ Command control. Pull high for write/read display data. Pull low for write command or read status.
- Pin14, WR#   MCU interface input. Data write operation is initiated when it’s pull low.
- Pin15, RD#   MCU interface input. Data read operation is initiated when it’s pull low.
- Pin16~23, D0~D7, Data bus(for parallel interface)
- Pin24, VCCÂ Â Â Power supply for analog circuit.
- Pin25, VSSÂ Â Â Ground
Product Features:
| Product: | OLED Display 1.5 Inch |
|---|---|
| Resolution: | 128 X 128 |
| Glass Type: | OLED (Organic Light Emitting Diode) |
| Optics: | All Viewing Angles 80/80/80/80 |
| Interface: | I2C, SPI, 6800, 8080 Optional |
| Outline Dim.: | 33.8(W) X 43.7(H) X 1.41(T) mm |
| Active Area: | 26.86 (W) X 26.86 (H) mm |
| Operating Temp: | -40°C To +70°C |
| Pin Number: | 25 Pins |
| Controller: | SSD1327 Or Equivalent |
| Drive Mode: | 1/128 Duty Cycle |
| Connector: | COG+FPC |
| Contrast Ratio: | 2000:1 (Dark Room Contrast) |
| Compliance: | REACH & RoHS Compliant |
Techstar’s graphic OLED displays are available in three mechanical structures include COB, COG and TAB passive matrix technology. Available graphic monochrome OLED resolution in 50×16 OLED graphic display, 64×128 OLED, 100×16 OLED, 100×32 graphic OLED, 200×16 graphic OLED, OLED 128×32, OLED display 128×64, OLED 128×128, and 256×64 OLED Display. The graphic OLED display in the SAEF product range have on-board controllers and interfaces include parallel, serial, and I2C OLED, SPI OLED. These OLED display modules have driven voltages of 3V, or 5V depending on resolution/color.
Techstar offers a wide range of OLED display modules in sizes from 0.42″ to 5.5″ OLED, such as 0.42″ micro OLED Display, 0.66″ mini OLED Display, 0.69″ OLED, 0.91″ OLED Display, 0.95″ OLED, 0.96″ OLED Display, 1.5″ OLED Display, 2″ OLED , 2.4″ OLED , 2.7″ OLED Display, 5.5″ OLED Display, and custom design solutions.

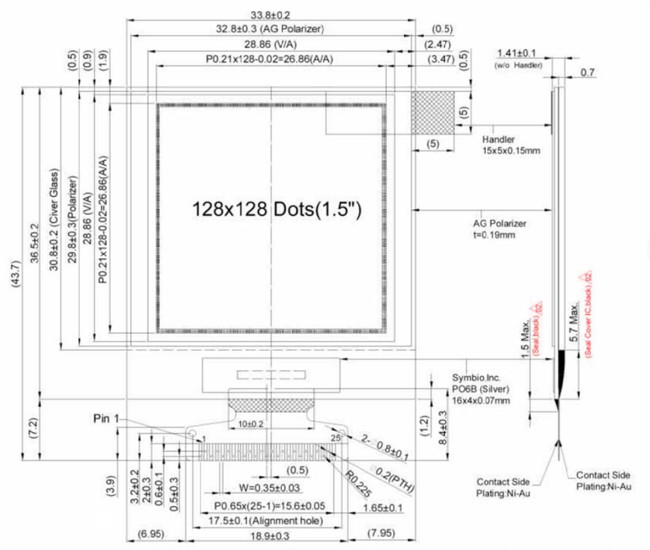

1.5″ inch OLED, 128×128 OLED Display Drawing

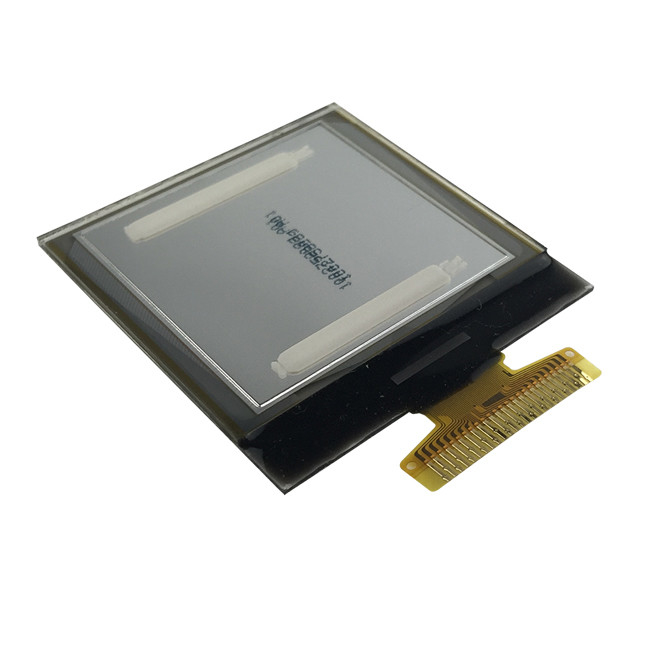

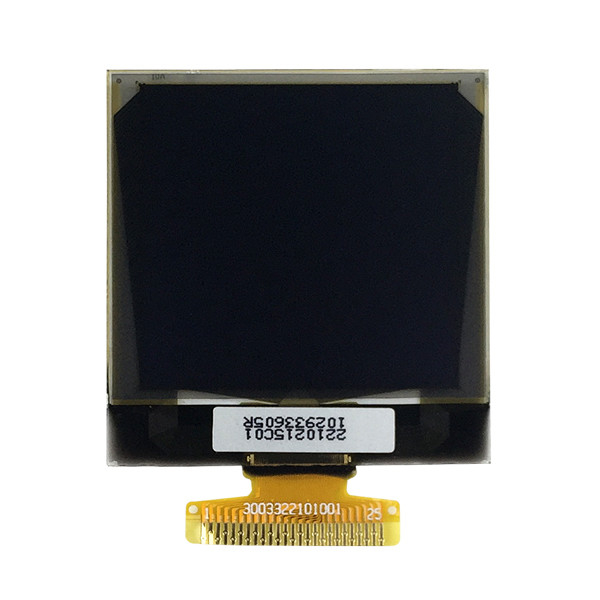

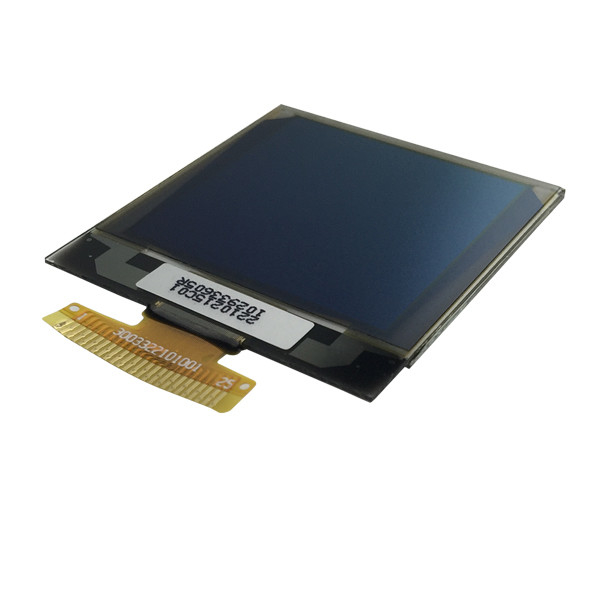

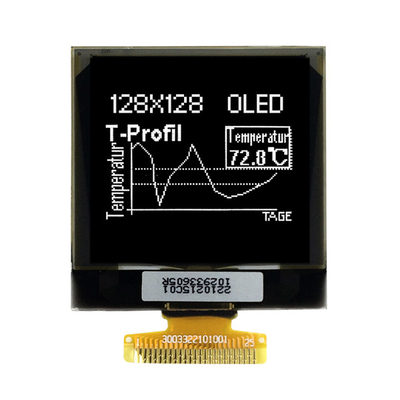

1.5″ inch OLED, 128×128 OLED Display Real Product Image
