Unveiling the SFOM150YZ4-128128WB-01: A 1.5-inch OLED Display Module with 128×128 Pixel Resolution and I2C Interface
Explore the cutting-edge SFOM150YZ4-128128WB-01, a dynamic COG with a PCB OLED module boasting a resolution of 128×128 pixels and a diagonal size of 1.5 inches. The module is equipped with the advanced SSD1327Z IC, supporting a 1/128 driving duty and an I2C interface. With a PCB outline size of 34.3×45.5 mm, including mounting holes on board and 4×1 metal pins on the module, it stands out with the following features:
- Streamlined IIC serial communication interface, ensuring simple wiring with only 2 signal lines. Connect effortlessly with the power supply using the 4PIN line, simplifying usage.
- Specifications: 1.5-inch display, 128×128 resolution, vibrant white color, and a viewing angle exceeding 160 degrees. Compatible with various platforms, including Arduino, 51 series, ESP, STIM32/2, and SCR chips.
- Remarkable energy efficiency with only 0.05W power consumption during normal operation. Operates seamlessly at a support voltage of 3.3V DC, with a wide working temperature range from -40°C to 85°C.
Product Features:
| Product: | 1.5 Inch OLED 4 Pins I2C |
|---|---|
| Resolution: | 128×128 Pixels |
| Structure: | COG + PCB |
| Interface: | I2C interface |
| Touch Screen: | Customizable |
| Viewing Direction: | All Viewing Angles |
| Outline Dim.: | 34.3 × 45.5 × 3.8 mm |
| Connection: | Header Pins |
| Pin Number: | 4 Pins (7 Pins Optional) |
| Operating Temp.: | -40℃ To +85℃ |
| Lifetime: | 50,000 Hours @ 60cd/m2 |
| Compliance: | REACH & RoHS Compliant |

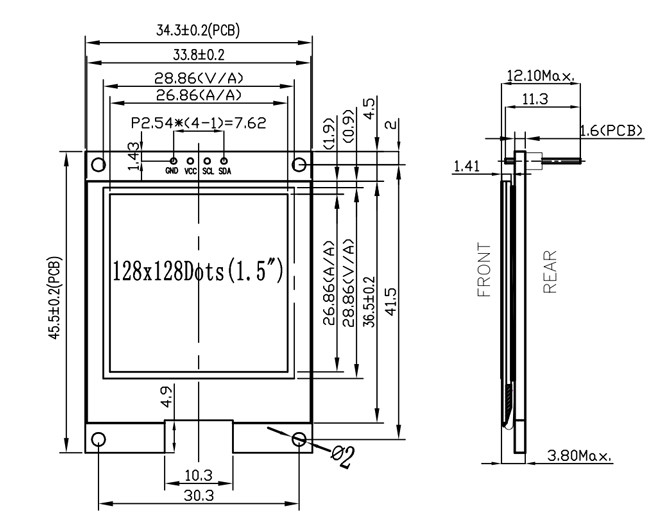

1.5 Inch OLED Display Module, 128×128 Pixels 1.5 inch 4 Pins I2C Product Drawing
Interface Pin Definition
- Pin1, GND,  Ground of logic circuit
- Pin2, VDD,  Power supply for logic
- Pin3, SCK,  Serial clock input
- Pin4, SDA,  Serial data input

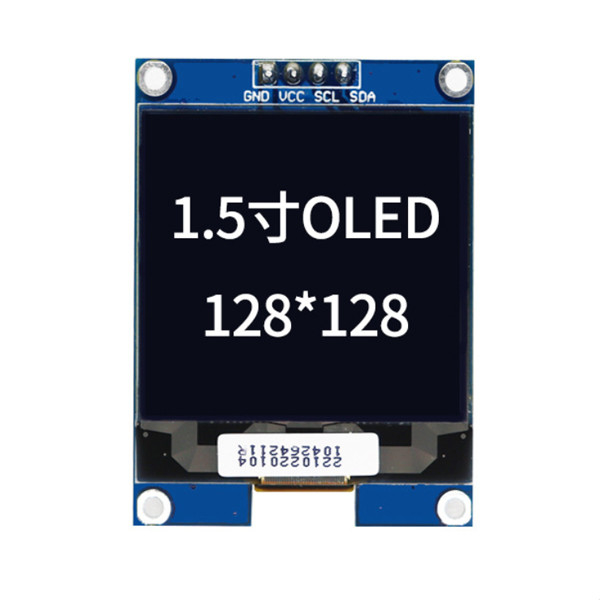

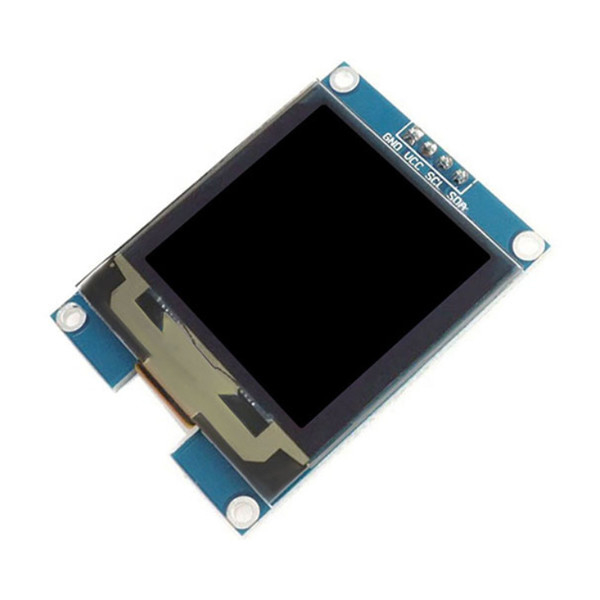

1.5 Inch OLED Display Module, 128×128 Pixels 1.5 inch 4 Pins I2C Product Image
