Unveiling the 1.54 Inch OLED Display Marvel: Igniting Visual Excellence in White and Blue Typography!
Dive into the realm of cutting-edge technology with our OLED 1.54″ Graphic Display, an epitome of brilliance, offering a captivating visual experience with its 128×64 SPI interface. Let’s unravel the wonders of this SFOM154YZ7-12864WB-01 OLED masterpiece.
Behold the Organic Light-Emitting Diode (OLED), a beacon of next-gen innovation, casting brighter and clearer images at an unmatched speed. The SFOM154YZ7-12864WB-01 stands tall with its 128 x 64 dots individual mono color display, ensuring a symphony of visual delight.
This OLED module redefines portability, efficiency, and versatility. Embrace its lightweight design, minimal power consumption, and compact form. Choose your interface journey – default 4 lines SPI, or explore the realms of 6800, 8080, and I2C interfaces. The flexibility is yours to command.
What sets this module apart is its ingenious construction. Crafted with Chip-on-Board (COB) OLEDs, it seamlessly integrates into diverse applications, courtesy of the PCB board. Your customization dreams come true with this sleek, modular marvel.
SFOM154YZ7-12864WB-01 emerges as a pristine, white monochrome 1.54-inch 128×64 Graphic OLED display module, promising a staggering 50,000 hours of visual brilliance. The SPD0301 controller, a kindred spirit to SSD1309, adds an extra layer of accessibility. Our demo code is your gateway, unlocking possibilities across microcontrollers like Raspberry Pi and ESP32, making this display your canvas for innovation. Welcome to the future of visual storytelling!
| Product: | 1.54″ Inch Graphic OLED Screen |
|---|---|
| Resolution: | 128×64 Dots |
| Display Mode: | Passive Matrix |
| Interface: | 4 Wires SPI Interface |
| Optics: | All Viewing Angles |
| Outline Dim.: | 42.04(L) X 37.0(W) X 3.1(T) Mm |
| Active Area: | 35.052(L) X 17.516(W) Mm |
| Pixel Pitch: | 0.254 X 0.254 Mm |
| Driving Method: | 1/64 Duty Cycle |
| Operating Temp: | -40°C To +70°C |
| Storage Temp.: | -40°C To +85°C |
| Supply Voltage: | 2.8V |

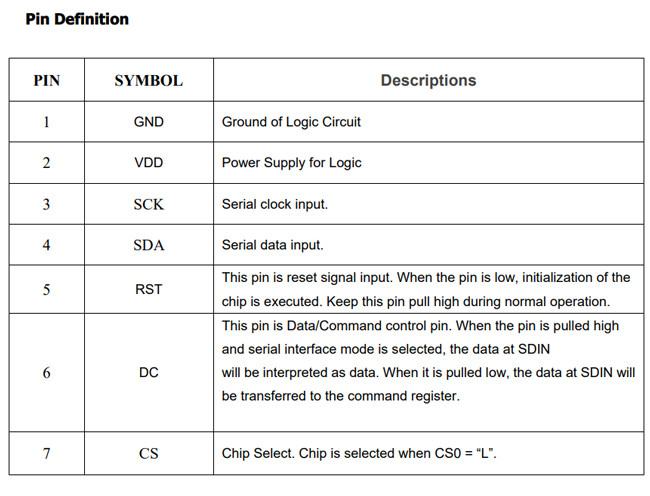

| Pin Number: | 7 Header Pins, 4 Pins Optional |
| Compliance: | REACH & RoHS Compliant |

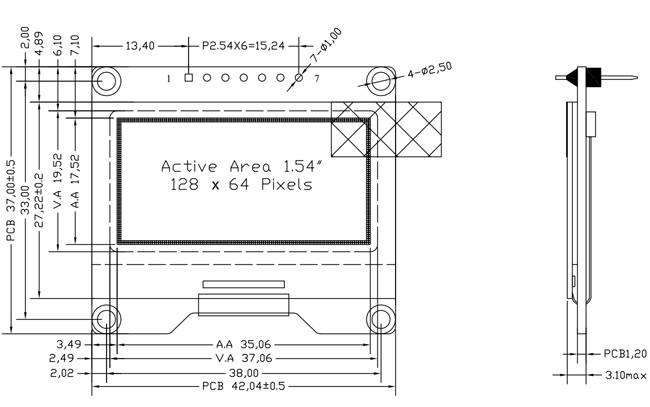

OLED 1.54″ Graphic Display, 128×64 SPI OLED DrawingÂ

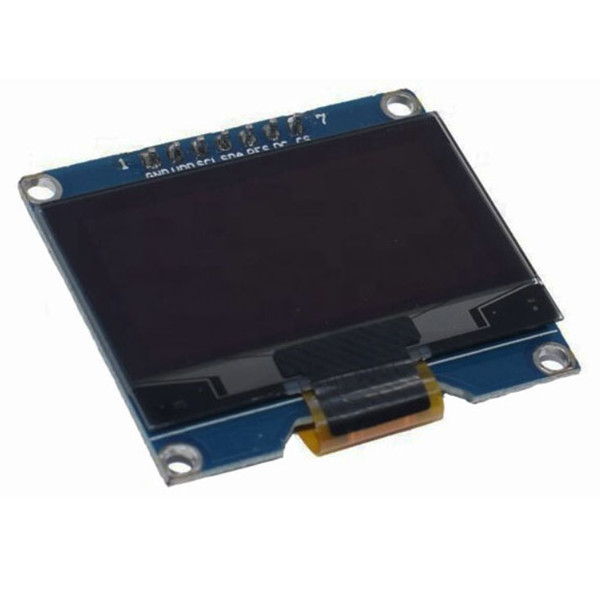

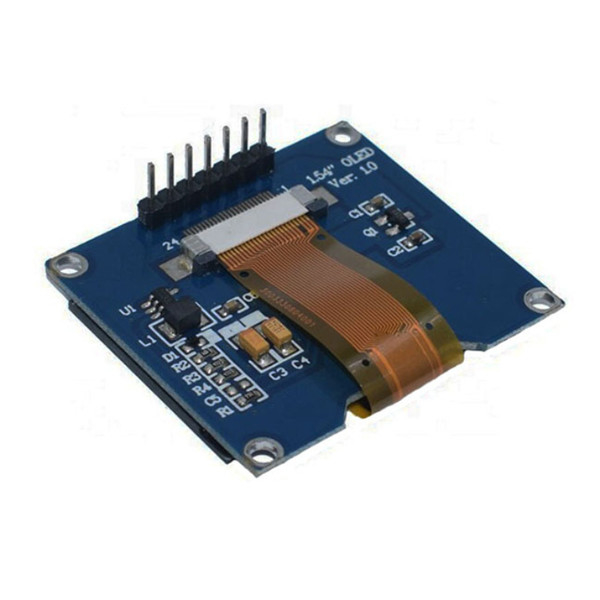

OLED 1.54″ Graphic Display, 128×64 SPI OLED Product Image
