Description
Unveiling the Cutting-Edge 1.69-Inch Color OLED Display: A Visual Marvel with Limitless Potential!
Dive into the realm of advanced display technology with our revolutionary 1.69-inch Color OLED, model no. UG-6028GDEFF01. This OLED display, featuring a vibrant 160 x 128 dots configuration, promises brighter and clearer images coupled with an exceptionally agile response speed. Embracing the new generation OLED, witness a seamless blend of captivating visuals and dynamic functionality.
This lightweight and compact OLED module boast versatility with optional interfaces, defaulting to SPI, Parallel, and I2C. Its active area spans 1.69 inches diagonally, encapsulating a module dimension of 39.90 x 48.50 x 1.60 (mm) and an active area dimension of 33.575 x 26.864 (mm). The built-in IC SSD1333 enhances performance, ensuring a high contrast ratio of 20,000:1.
Operating within a logic supply voltage range of 1.65V-3.5V (typical value: 3V), this OLED display is a technological marvel suitable for an array of applications. From medical devices to POS systems, home appliances to industrial instruments, and even automotive displays, the possibilities are limitless. Elevate your projects with this OLED display, where innovation meets visual excellence.
Product Features:
| Product: | 1.69″ Inch Color OLED |
|---|---|
| Resolution: | 160×128 Pixels Resolution |
| Display Mode: | Passive Matrix |
| Interface: | 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C |
| Display Color: | Full Color |
| Optics: | All Viewing Angles |
| Outline Dim.: | 39.90 X 48.50 X 1.60 (mm) |
| Active Area: | 33.575 X 26.864 (mm) |
| Pixel Pitch: | 0.07 X 0.21 (mm) |
| Operating Temp: | -40°C To +70°C |
| Storage Temp.: | -40°C To +85°C |
| Driver IC: | SSD1333 |
| Supply Voltage For Logic: | 1.65 – 3.5V |
| Pin Number: | 30 Pins |
| IC Package Type: | COF |
| Module Connecting Type: | ZIF |
| Duty: | 1/128 |
| Compliance: | REACH & RoHS Compliant |

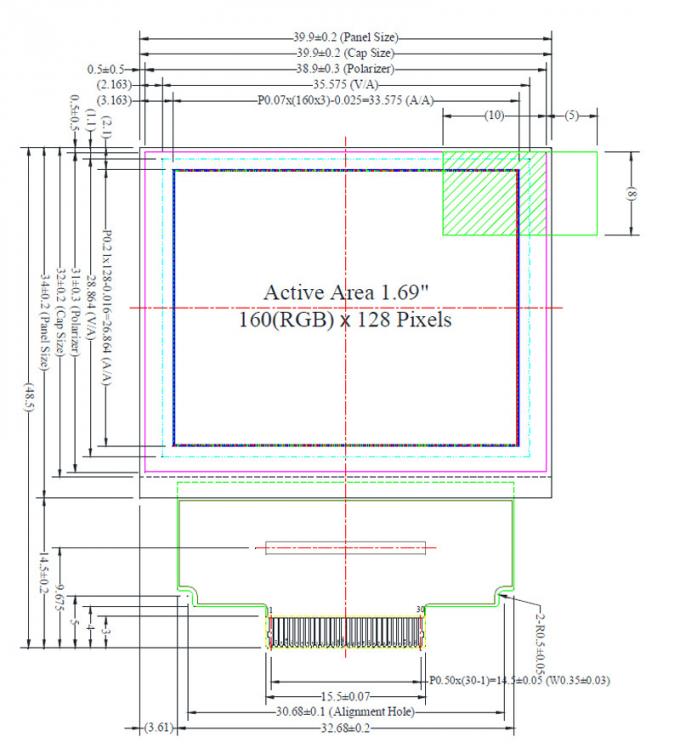

Full Color OLED Display 1.69 inch AMOLED Product Drawing

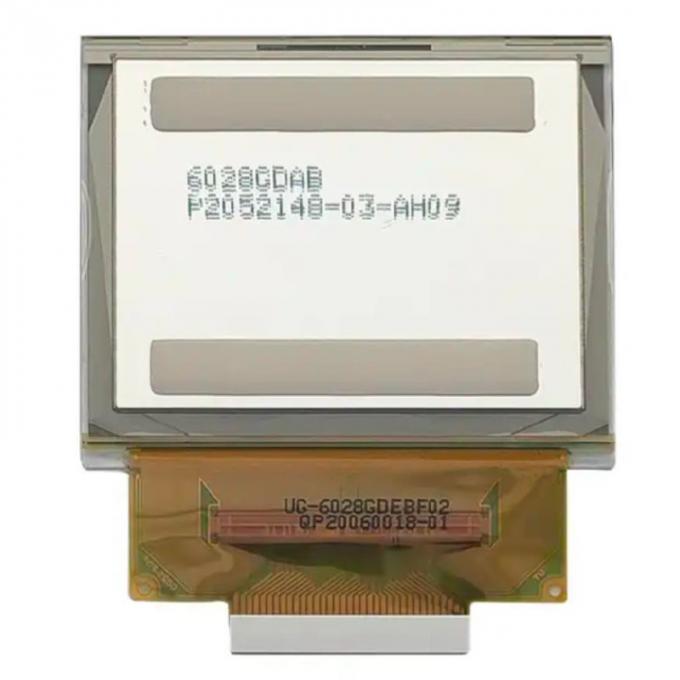

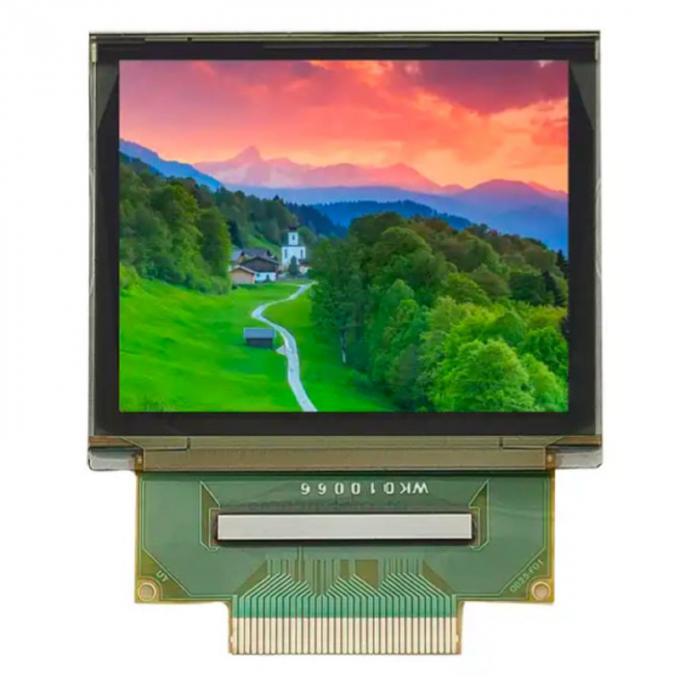

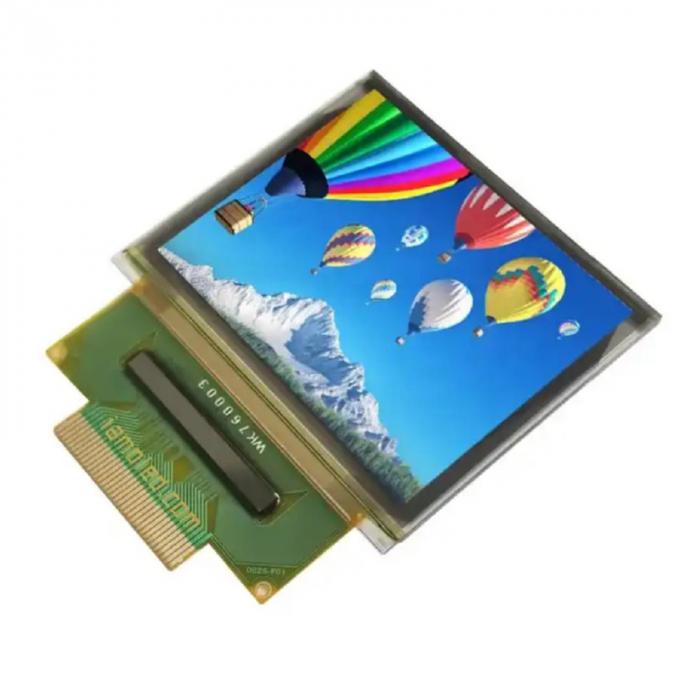

Full Color OLED Display 1.69 inch AMOLED Product Image
