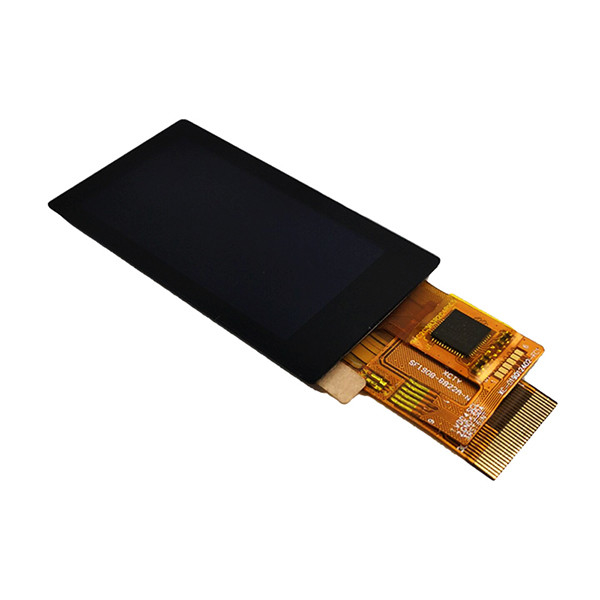

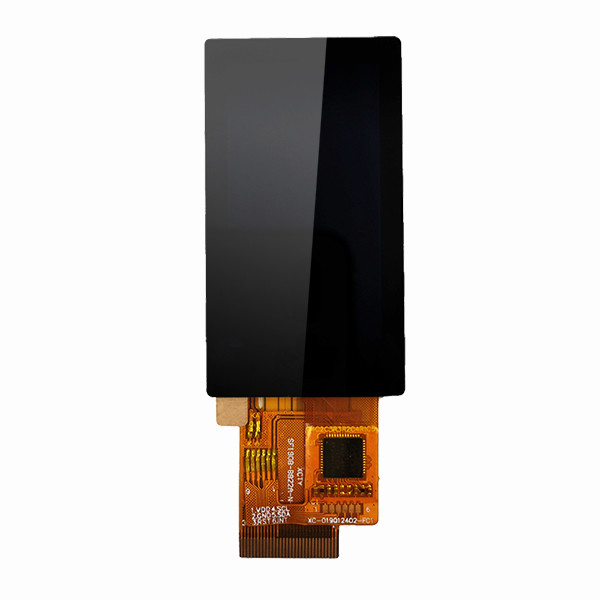

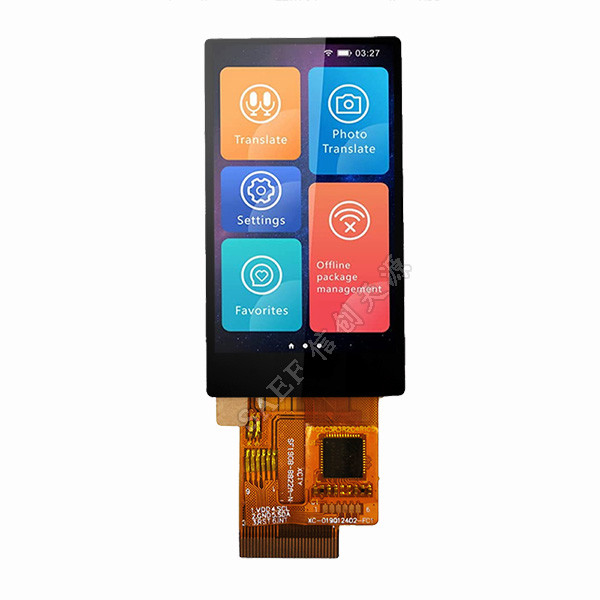

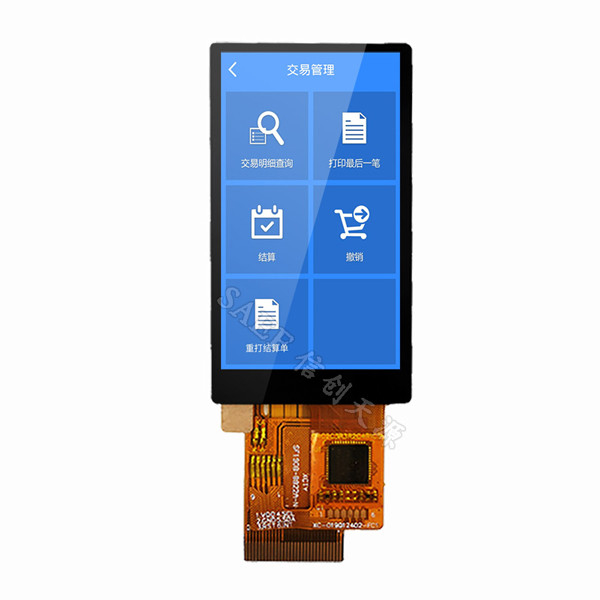

SF-TC190B-8922A-CT1 1.9″ IPS TFT LCD Display SPI/RGB Interface, 350cd/m² Brightness

The SF-TC190B-8922A-CT1 TFT LCD display module by SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD is designed for a variety of applications in embedded systems and consumer products. This transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display utilizes amorphous silicon TFT technology as its switching mechanism.

Featuring a compact 1.9″ screen size, this TFT LCD module boasts a resolution of 170 (RGB) x 320 dots, enabling it to display up to 262k colors. The module comprises the TFT LCD panel, a driver circuit, and a backlight unit. With support for both SPI and RGB interfaces, it offers versatility in integration.

The operating voltage (VCC) for driving the LCD panel ranges from 2.4V to 3.3V, with a typical value of 2.8V. This makes it suitable for a wide range of applications, including embedded systems, automation, GPS devices, medical equipment, industrial instruments, and security systems that demand high-quality, vibrant displays.

The SF-TC190B-8922A-CT1 TFT LCD is of the IPS (In-Plane Switching) type, providing excellent viewing angles and color reproduction. It delivers a brightness of 350 cd/m² (typical value), with customization options available to achieve up to 1000 nits. For more information on customization, please contact our sales team.

Operating reliably in temperatures ranging from -20°C to +70°C, and with storage temperatures spanning from -30°C to +80°C, this TFT LCD display module is engineered to perform consistently in various environments, ensuring durability and longevity in use.
