Description
1.9″ TFT LCD Touch Screen with 170×320 Resolution, IPS Full Viewing Angle, CTP, and SPI/MCU Interface
Detailed Description of 1.9 inch TFT LCD Touch Screen:
Experience SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD SF-TC190B-8822A-CT, featuring a 1.9-inch round IPS TFT LCD Display boasting a resolution of 170×320 pixels.
Key Specifications:
- Screen Size: 1.9 inches TFT LCD
- Resolution: 170×320
- Viewing Angle: Wide (80/80/80/80)
- Dimensions: 25.80×49.72×1.43 mm
- LCD Driver IC: ST7789VW
- Interface: SPI/MCU
- Temperature Range: Top -20°C to +70°C; Tst -30°C to +80°C
- Touch Panel: Capacitive Touch Screen (CTP)
Advantages of Our Product
IPS Full Viewing Angle (80/80/80/80): Offering exceptional viewing angles suitable for various applications, whether placed on a surface, mounted, or handheld.
Exceptional Display Performance: Our product excels in background color accuracy, luminance, wide viewing angles, and intensity, ensuring an immersive viewing experience.
Premium Quality for Industrial and Medical Applications: Designed to meet high standards, making it ideal for demanding industrial and medical settings.
Customizable Touch Options: Choose between resistive touch screen or opt for a customized capacitive touch panel (CTP) tailored to your specifications. Additionally, the Flexible Printed Circuit (FPC) can be customized as per requirements.
Competitive Pricing without Compromising Quality: Offering a cost-effective solution without compromising on quality, making it a standout choice in the LCD industry.
Easy Installation and Maintenance: Designed for hassle-free installation and maintenance, ensuring convenience for users.
Product Features
Product: | 1.9″inch TFT |
---|---|
Touch Screen: | Capacitive Touch Panel (CTP) |
Resolution: | 170×320 I |
Viewing Direction: | IPS Full Viewing Angle (80/80/80/80) |
Driver IC: | ST7789VW |
Pin Number: | 30 Pins |
Connection: | FPC Type Connection |
Surface Luminance: | 350 Cd/m2 (nits) |
Interface: | SPI/MCU |
LED Lifetime: | 40,000 Hours |

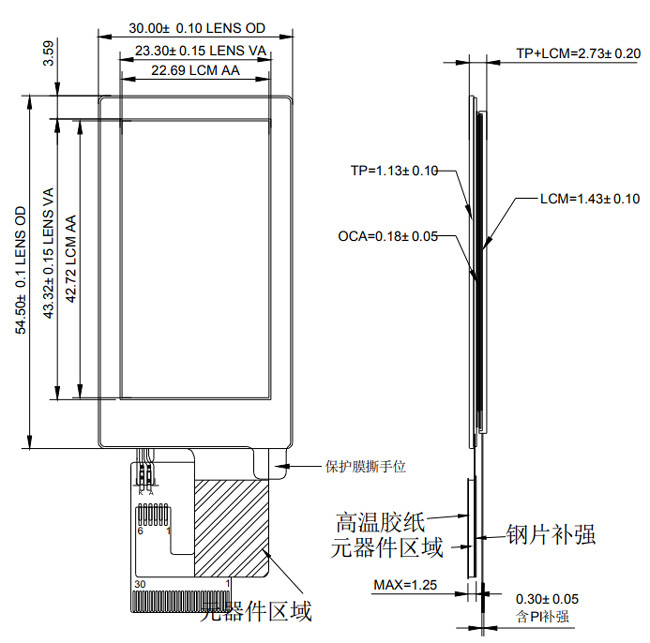

1.9 inch Capacitive Touchscreen TFT LCD Display Product Drawing
Interface Pin Description
NO. | PIN NAME | I/O | Description |
1Â | GND | I | Power Ground |
2 | VDD | I | Power Supply for Analog, VDD=2.4V~3.3V. |
3 | IM2 | I | when IM1=0, IM2=0,8080-8bit;when IM1=1, IM2=1,4-line SPI serial I/F. |
4 | IM1 | I | |
5 | RESET | I | This signal will reset the device and it must be applied to properly initialize the chip. Signal is active low. |
6Â | CS | I | Chip selection pin; Low enable, High disable. |
7Â | D/C(SPI-SCL) | I | When connecting to an 8080-series microprocessor, this pin receives the data/command selection pin. This pin is used to be serial interface clock in 4-line serial interface. |
8Â | WR(SPI-RS)
(SPI-RS) |
I | When connecting to an 8080-series microprocessor, this pin receives the write signal. Display data/command selection pin in 4-line serial interface. |
9 | RD | I | When connecting to an 8080-series microprocessor, this pin receives the Read signal. Read operation is initiated when this pin is pulled LOW and the chip is selected. When serial interface is selected, this pin must be connected to Ground. |
10 | SDA | I | SPI interface input/output pin. The data is latched on the rising edge of the SCL signal. |
11-18 | D0-D7 | I | MCU parallel interface data bus. |
19 | NC | I | No Connect |
20 | LEDA | I | LED Anode |
21-24 | LEDK1 | I | LED Cathode |
25 | GND | I | Power Ground |
26 | TP_RST | I | System reset of Touch Panel. If no used, let this pin open. |
27 | TP_SCL | I | I²C clock signal of Touch Panel. If no used, let this pin open. |
28 | TP_SDA | I | I²C data signal of Touch Pane. If no used, let this pin open. |
29 | TP_INT | I | Interrupt signal to main processor of Touch Panel. If no used, let this pin open. |
30 | GND | I | Power Ground |
 |  |

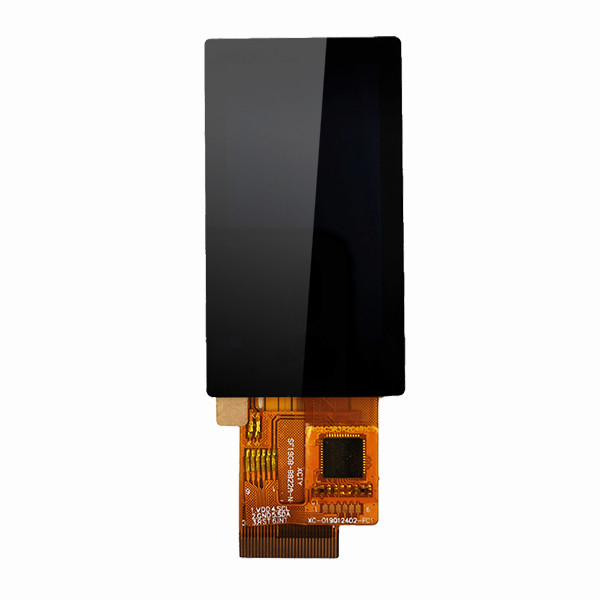

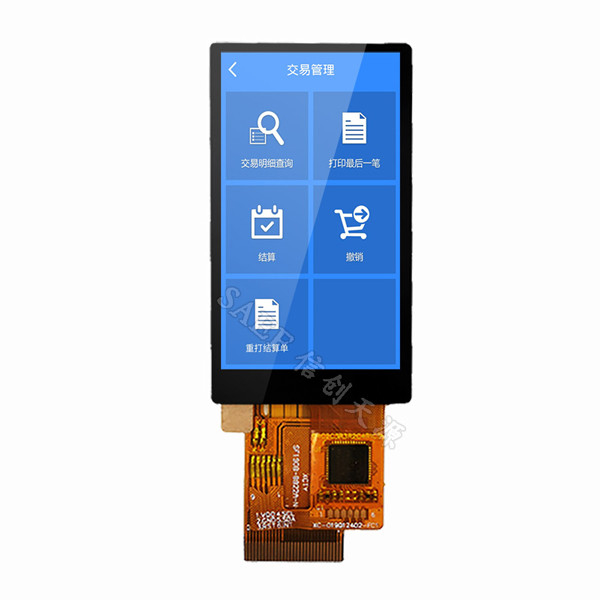

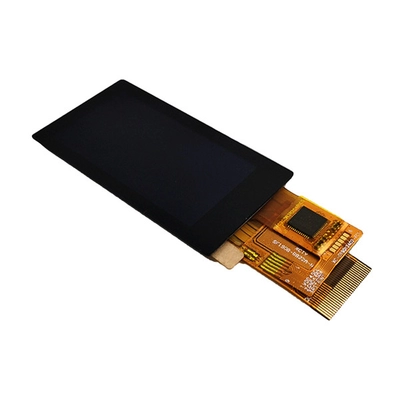

1.9 inch Capacitive Touchscreen TFT LCD Display Product Image
