10.1 Inch Android Monitor1280*800 IPS Screen With Touch Capacitive With RK3128 Quad Core

Introducing the 10.1 Inch Android Monitor with a Dynamic 1280*800 IPS Screen and Capacitive Touch, Powered by RK3128 Quad Core Processor

Specifications:

• Screen Size: 10.1 inch (Optional: 14 inch for expanded viewing)
• Resolution: Experience crystal-clear visuals at 1280*800/1920×1080
• Installation: Versatile L-TYPE DESKTOP ANDROID ALL-IN-ONE design

Key Features:

1. CPU: Equipped with High-Performance and Energy-Efficient CPU Options: KR3128/A64/KR3566/KR3568/RK3288/KR3399
2. RAM: Choose from 2GB (with optional 1GB/4GB) (OEM: 8GB)
3. ROM: Storage options include 8GB (with optional 16GB) (OEM: 32G/64G)
4. Screen: Enjoy vivid visuals on a 10-inch/14-inch IPS Screen with Highlight LED Backlight
5. Touch Screen: Optional 10-Point Capacitive Multi-Touch for enhanced interaction
6. Operating System: Runs on Android with versions ranging from 6.0 to 11 for versatility

Interfaces:

• Connectivity: DC input/USB/Mini-USB(OTG)/Audio/RJ45 Ethernet/SD card(Power over Ethernet/HDMI Optional)
• Installation Options: Choose from Wall-mounted, In-wall, Holder, Stand, or OEM Open Frame

Advanced Functions:

• Automated Boot-Up: SFLR102T automatically boots up and rotates pictures or videos
• Adaptive to Environment: Passed High & Low Temperature Testing, operational from -20°C to 60°C
• Customizable Boot-Up Logo

Display Specifications:

• Screen: 10.1 inch FULL HD IPS screen
• Resolution: Stunning 1280×800 clarity
• Brightness: 300 cdm2 for clear viewing
• Contrast Ratio: Greater than 1000:1 for vivid contrast
• Aspect Ratio/Display Area: 16:10/ Display area : 219×137mm

Standard Configuration:

• CPU: Rockchip RK3128 quad-core ARM Cortex-A7 processor with a main frequency of 1.4GHz
• RAM: 1GB
• ROM: 16GB
• System: Android 7.1 OS

Network Connectivity:

• Wireless: Supports 802.11b/g/n WiFi
• Wired: RJ45 Ethernet for reliable connection
• Bluetooth: Version 4.2 for seamless connectivity
• Mobile Data: External 3G/4G USB dongle support

Interface Details:

• TF Card: 1×TF card slots (up to 32GB)
• USB 2.0: 2×USB 2.0 interfaces (supports U disk, mouse, keyboard, printer, etc.)
• RJ45: 1×RJ45 network interface
• Earphone: 1×3.5mm headphone jack
• HDMI Out: 1x HDMI out
• Power: 1×4.0mm power DC jack

Multimedia Capabilities:

• Video: Supports MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (up to 1080P)
• Audio: Wide format support including MP3, WMA, AAC, etc.
• Image: Compatible with JPEG, JPG formats

Additional Features:

• Wireless Peripheral Support: Use with wireless mouse and keyboard
• Audio Output: 2×2W speakers for clear sound
• Camera: Standard 2MP (Optional: 5MP)
• Language Options: Multilingual OSD support including Chinese, English, German, Korean, Russian, French, Spanish, Arabic, etc.
• Software: Pre-installed applications including maps, games, email, and customizable apps

Included Accessories:

• Adapter: One, specifications: 12V/2A
• Desktop Bracket: One (Remote control optional)
• User Manual: Comprehensive guide for easy setup and operation

Product Size Information:

• Packaging: 10 units per Carton
• Dimensions: Length Width Height :714533CM
• Net Weight: 13KG
• Gross Weight: 14KG

Applications:

Suitable for a wide range of applications including face recognition, robot displays, point-of-sale systems, security monitoring, smart home devices, self-service terminals, medical device displays, advertising displays, rail traffic displays, and video calls.

10.1 Inch Android Monitor1280*800 IPS Screen With Touch Capacitive With RK3128 Quad Core Product Drawing

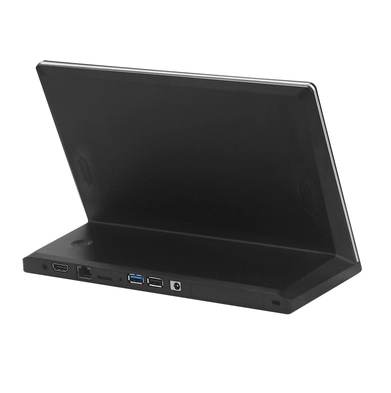

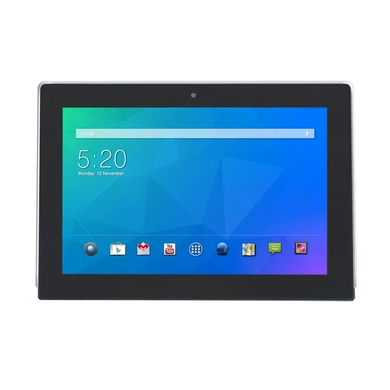

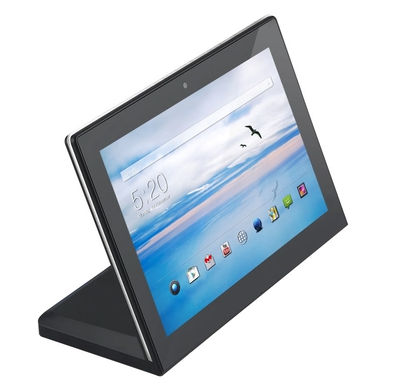

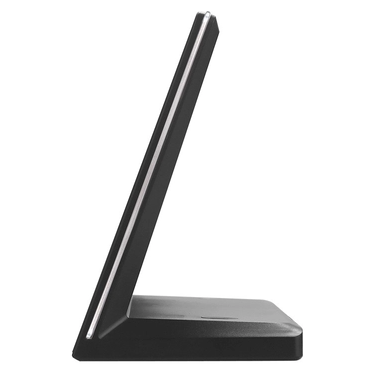

10.1 Inch Android Monitor1280*800 IPS Screen With Touch Capacitive With RK3128 Quad Core Product Image
