Unveiling the 10.4 Inch TFT LCD Display: Revolutionizing Visual Experience
Introducing the SF-TO104I-8957A-N, a cutting-edge 10.4” TFT Liquid Crystal Display module meticulously engineered to elevate your visual encounters. Boasting a vibrant LED backlight unit and a seamless 30-pin-and-1ch LVDS interface, this display module redefines clarity and brilliance. With a native support for the 1024×768 format, immerse yourself in a realm of true 16.2M colors, meticulously rendered (including 6-bits colors with FRC) for unparalleled visual fidelity.
But that’s not all – embedded within is a sophisticated converter module for the LED backlight, ensuring optimal luminance and contrast. Witness stunning visuals come to life with a contrast ratio of 1000:1, visible from all angles with uncompromised clarity.
Compatible with the esteemed Innolux model ZE104IA-03D, the SF-TO104I-8957A-N is the epitome of versatility and reliability. Designed to thrive in diverse environments, this TFT LCD Display Module operates flawlessly in temperatures ranging from –30℃ to +80℃. Whether it’s embedded systems, automation, GPS, medical equipment, or industrial and security devices, count on the SF-TO104I-8957A-N to deliver vivid, high-quality imagery, enriching every visual interface it graces. Experience the future of display technology – experience SF-TO104I-8957A-N.
Product Features:
- Excellent brightness (500 nits)
- Ultra high contrast ratio (1000:1)
- Fast response time (Ton+Toff average 25 ms)
- XGA (1024 x 768 pixels) resolution
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface
- Ultra wide viewing angle: 176(H)/ 176(V) (CR>10)
- MVAtechnology-180 degree rotation display option
- Color reproduction (Nature color)
- Wide operation and storage temperature range –30℃ to +80℃ Operation
| Product: | 10.4 Inch TFT LCD Display |
| Resolution: | 1024×768 |
| Interface: | LVDS |
| LED Lifetime: | 50,000 Hours |
| Viewing Direction: | All Viewing Angles |
| Operating Temp.: | –30℃ To +80℃ |
| Storage Temp: | –40℃ To +85℃ |
| Touch Screen: | Optional ( PCAP And Resistive Touch ) |
| Cover Glass Dimension: | ODM, Customizable |
| Surface Luminance: | 500 Cd/m2 |
| Pins: | 30 Pins |
| Connection: | ZIF / Plugging |
| Contrast Ratio: | 1000 : 1 |
| Compliance: | REACH & RoHS Compliant |

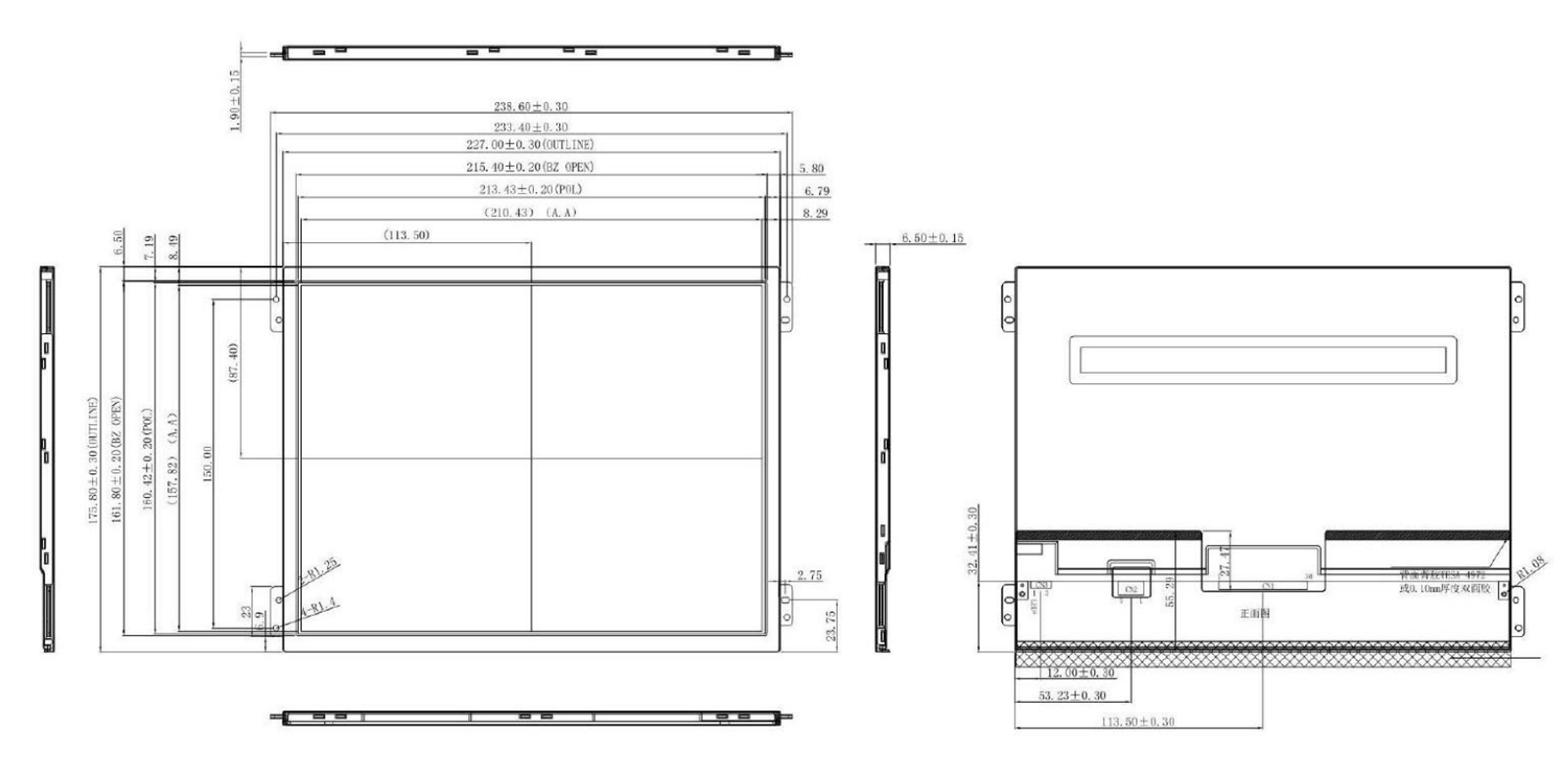

10.4 inch LVDS TFT Display 1024×768 Dot Resolution Module Drawing
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | MIN | TYP | MAX | UNIT | Test
Condition |
| Supply Voltage | Vf | 29 | 30 | 33 | V | If=20 mA |
| Supply Current | If | – | 0.25 | 0.35 | A | – |
| Reverse Voltage | Vr | – | – | 5 | V | – |
| Power dissipation | Pd | – | 3.1 | – | W | – |
| Luminous Intensity for LCM |
– |
– | 500 | – | Cd/m2 | If=20mA |
| Uniformity for LCM | – | 80 | – | – | ％ | If=20 mA |
| LED life time | Hr | 30000 | 50000 | – | Hour | – |
| Backlight Color | White | |||||
Reliability Test
| Item | Condition | Time (hrs) | Assessment |
| High temp. Storage | 85°C | 480 |
No abnormalities in functions and appearance |
| High temp. Operating | 80°C | 480 | |
| Low temp. Storage | -40°C | 480 | |
| Low temp. Operating | -30°C | 480 | |
| Humidity | 60°C/ 90%RH | 480 | |
| Thermal Shock Temp. Cycle | -20°C ¬ 25°C ®70°C
(0.5 hour ¬ 5 min ® 0.5 hour) |
30cycles | |

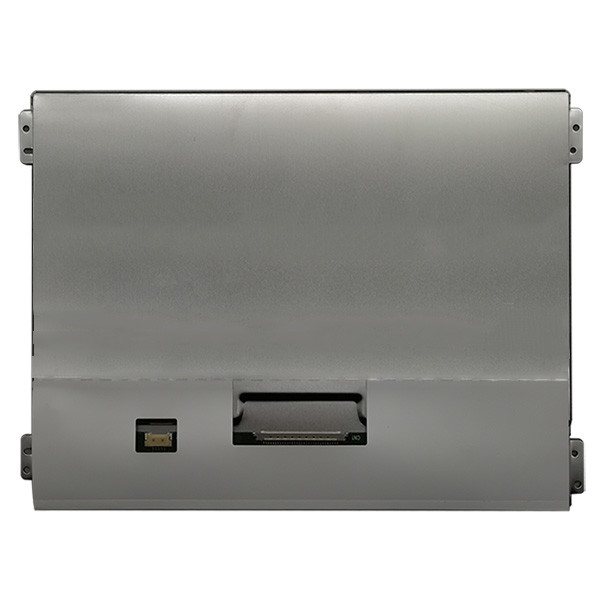

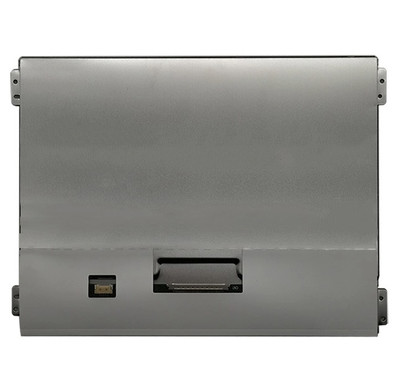

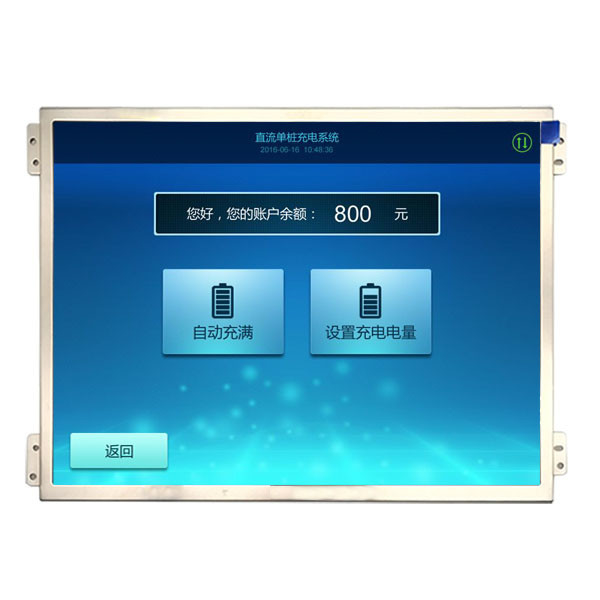

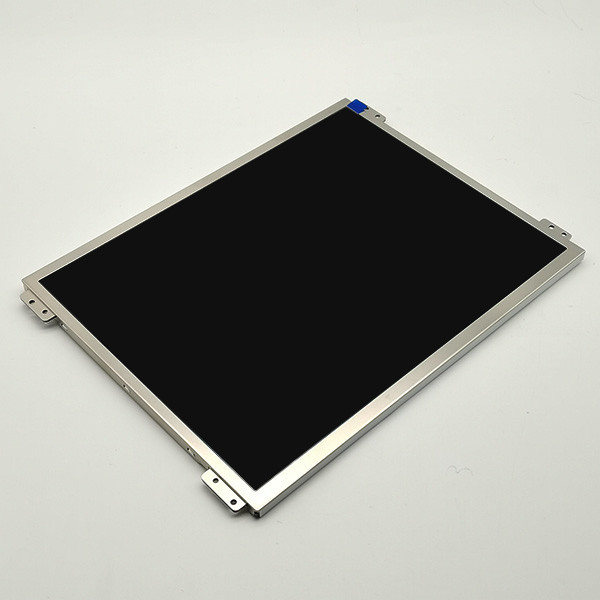

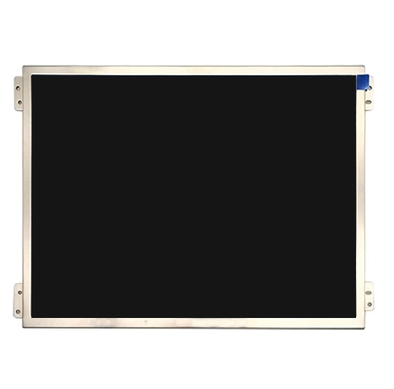

10.4 inch LVDS TFT Display 1024×768 Dot Resolution Module Product Image
