128×64 LCD COG Module: A Dive into Graphic LCD 128×64
Unveiling the SF12864-34, a revolutionary COG type graphic LCD module boasting a VA dimension of 53.6(L) x 28.0(W). SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTDpresents a groundbreaking range of COG LCD modules (Chip-on-Glass LCD Module), delivering monochrome displays spanning resolutions from 128×32 to 320×240. Dive into the realm of COG LCD character types, embracing sizes such as 16×2, 20×2, 20×4, 24×2 formats, all adorned with a 5×8 dot matrix.
Embrace the unparalleled quality of the COG package, amalgamating featherlight design with unparalleled energy efficiency. Elevate your experience by opting for a connection board, seamlessly transitioning from FPC to pins or cables. Our repertoire encompasses a myriad of pin out connections, tailored meticulously to cater to your unique requisites. Experience the epitome of technological finesse with COG LCM, ideal for applications yearning for compact package displays.
Delve into the Pin Definition:
- CS1B: Your gateway to chip select input pins.
- /RES: Initiate settings initialization by setting /RES to “L”.
- A0: Decipher the nature of access – data or command.
A0=“H”: Data display mode, signaling D[7:0] as display data.
A0=“L”: Command mode, with D[7:0] dedicated to commands.
- D6 (SCLK)
- D7 (SDA)
- VDD: Power up with MPU power supply terminal VDD.
- VSS: Ground yourself with the system GND at this 0V terminal.
- V0: Tune into bias voltage levels essential for LCD driving.
- XV0: Explore the negative operating voltage realm of COM-drivers.
- VG: Energize your SEG-drivers with the power of VG.
| Product: | 128×64 COG LCD Module |
| Resolution: | 128×64 Graphics |
| LCD Type: | STN, Positive, Transmissive |
| Backlight Color: | Green Backlight |
| Operating Voltage | 2.8 V |
| Optics: | 6 O’clock |
| Outline Dim.: | 65.0(L) X 38.6(W) X 4.9(T) mm |
| Viewing Area: | 53.6(L) X 28.0(W) mm |
| Driving Method: | 1/64 Duty, 1/7 Bias |
| Operating Temp: | -10°C To +60°C |
| Pin Number: | 10 Pins |
| Controller: | ST7567 Or Equivalent |
| Interface: | MCU |
| Compliance: | REACH & RoHS Compliant |

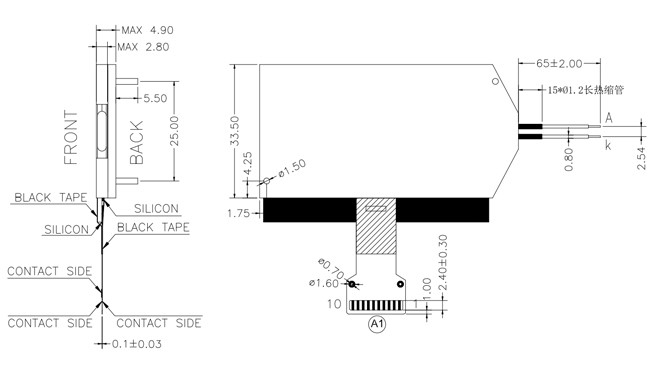

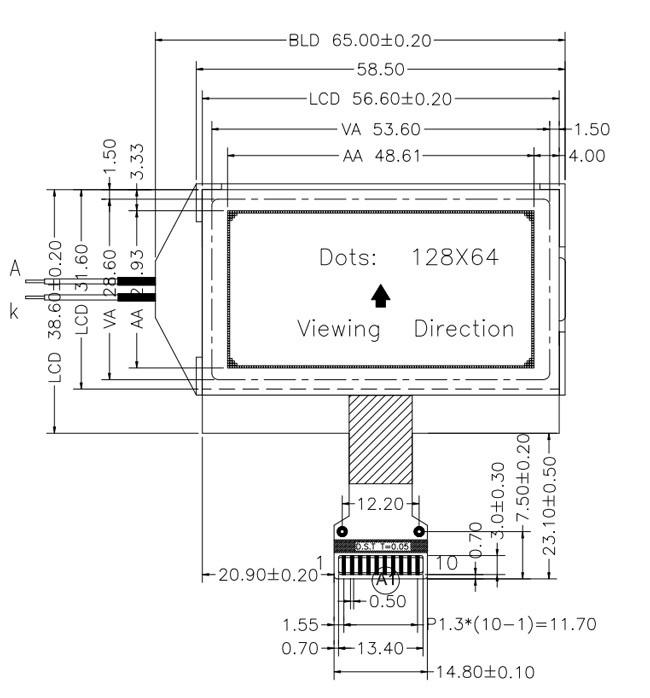

128×64 LCD COG Module, Graphic LCD 128×64 Drawing

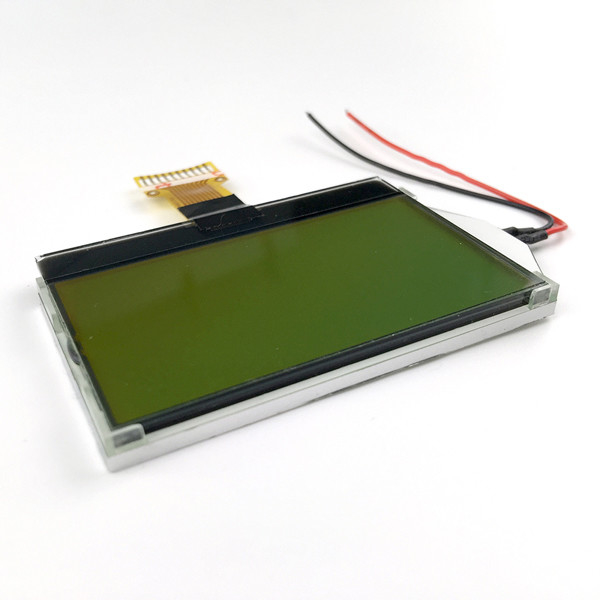

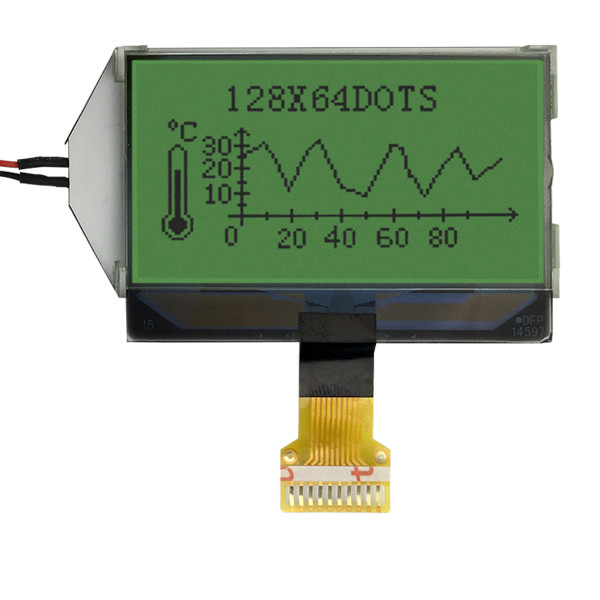

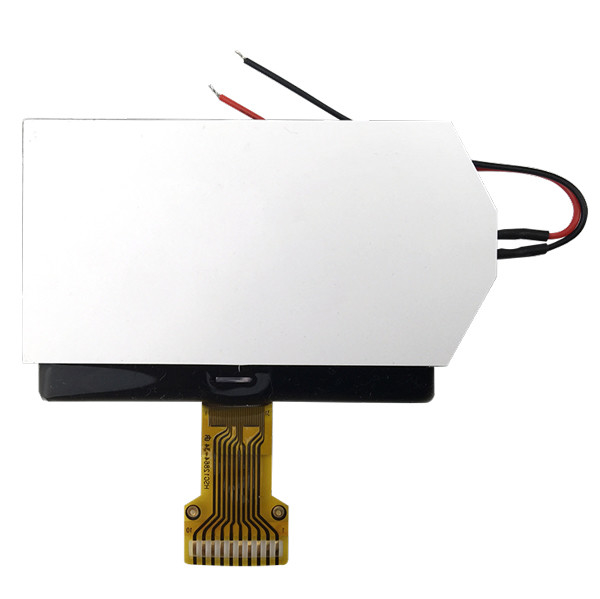

128×64 LCD COG Module, Graphic LCD 128×64 Real Product Image
