GV121WXM-N80 12.1 Inch TFT LCD Display HMI Screen with 30pins LVDS Interface
The BOE GV121WXM-N80 Industrial TFT display boasts a 12.1-inch IPS type screen offering full viewing angles and a resolution of 1280×800 pixels. This industrial-grade TFT LCD Display Module supports an LVDS interface and operates at a maximum voltage of 3.9V, with Vdd ranging from 3.0V to 3.6V.
Featuring a capacitive touch panel, the BOE GV121WXM-N80 offers both single touch and multi-touch options. With a luminance of 450cd/m2, this TFT LCD module GV121WXM-N80 ensures excellent visual quality under various conditions. Widely utilized in industrial and medical applications, POS terminals, HMIs, home automation, security systems, and more, this product stands out as a reliable choice for diverse needs.
Specifications:
- Display Size: 12.1 inches
- Display Type: TFT (Thin Film Transistor) LCD
- Technology: Color active matrix TFT LCD with amorphous silicon TFTs
- Design: PCAP (Projected Capacitive) with GOA + dual Gate design
- Color Gamut: Typical 50%, Minimum 45%
- Response Time: Typical 30ms, Maximum 35ms
- Resolution: 1280×800 pixels
- Contrast Ratio: Typical 1000, Minimum 800
- Interface: LVDS (Low Voltage Differential Signaling)
- Controller: HX8245-E04*2
| Product: | 12.1 Inch Industrial TFT Display |
| Resolution: | 1280 RGB X 800 |
| Surface Luminance: | 450 Cd/m2(nits) |
| Interface: | LVDS |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Pin Number: | 30pins |
| Outline Dim.: | 278.0(H)x184.0(V)×6.76(T) (mm) |
| Active Area: | 262.656(H)x164.16(V) (mm) |
| Surface Treatment: | Hard Coating(3H) |
| Connection: | ZIF |

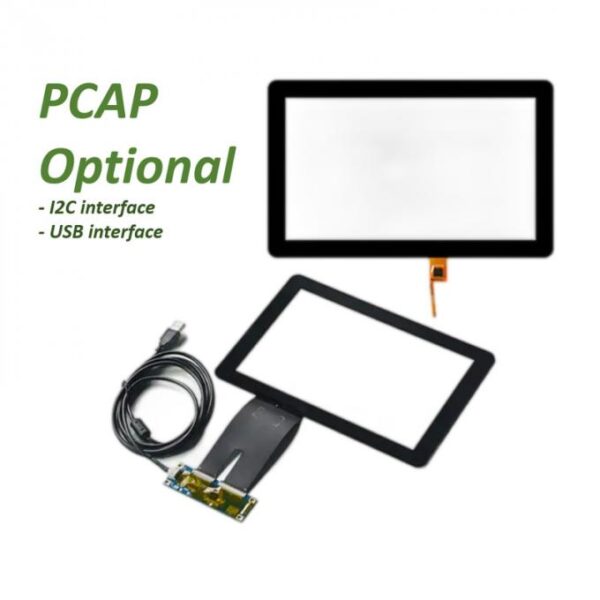

| Touch Screen: | CTP Optional |
| Display Colors: | 16.7 M |
| Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ |
| Compliance: | REACH & RoHS Compliant |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
12.1 Inch TFT LCD Display GV121WXM-N80 HMI Screen 30pins LVDS Drawing
LCD Module Electrical Specifications
Absolute Maximum Ratings
Note 1 : Temperature and relative humidity range are shown in the figure below. Wet bulb temperature should be 39 ℃ max. and no condensation of water
Power Consumption of Backlight
Optical Characteristics

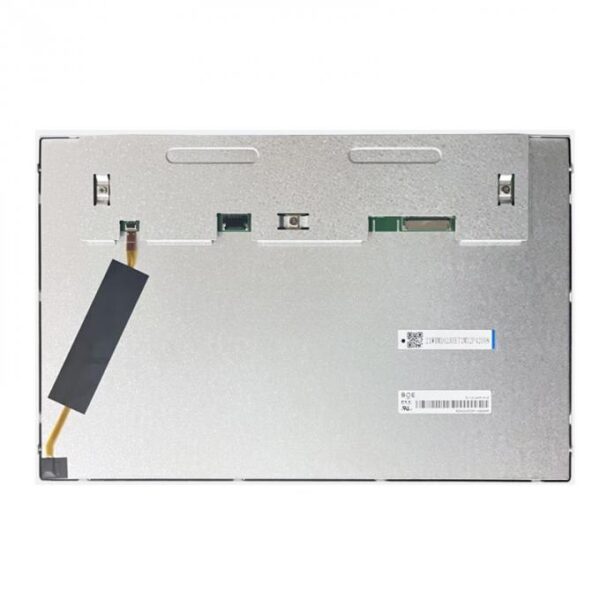

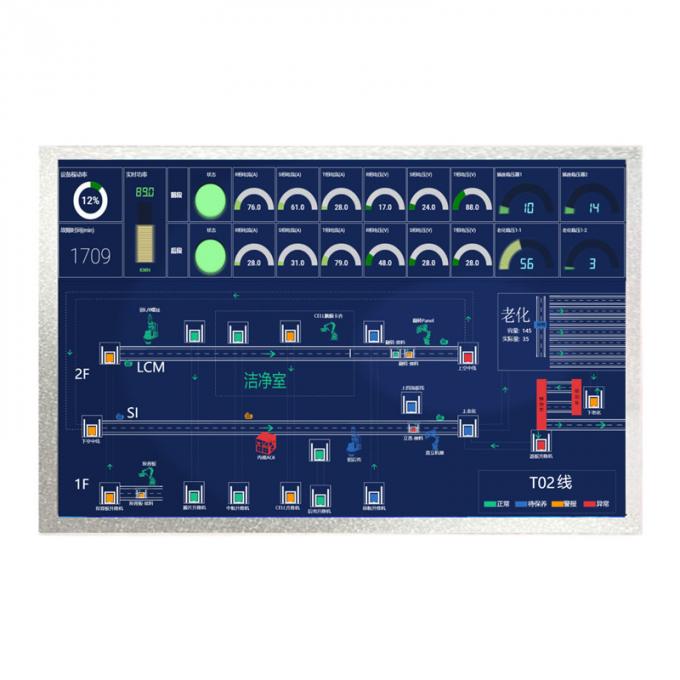

12.1 Inch TFT LCD Display HMI Screen 30pins LVDS Product Image
