12.1 inch Wall Mounted All In One Touch Screen Wifi Android Tablet Pc With Rj45 Poe

Innovative 12.1-Inch Wall Mounted Android Tablet PC with Touch Screen and RJ45 PoE Connectivity

Introducing the SFSR121T, a cutting-edge wall-mounted Android signage player featuring a 12.1-inch FULL HD IPS screen with a resolution of 1280×800 pixels. Versatile and sleek, the SR121T can be seamlessly integrated into any environment, whether wall-mounted or placed on a desktop stand.

Key Features:

1. Processor: Equipped with high-performance and energy-efficient CPUs such as A64, RK3188, RK3288, KR3688, or KR3399.
2. Memory: Comes with 2GB RAM (1GB or 4GB optional, with 8GB OEM configuration).
3. Storage: Offers 8GB of ROM (expandable up to 16GB, with 32GB or 64GB OEM options).
4. Display: Features a range of screen sizes from 10 inches to 32 inches, with IPS technology and high-contrast LED backlighting.
5. Touchscreen: Optional 10-point capacitive multi-touch functionality.
6. OS: Runs on Android operating systems ranging from Android 4.4 to 11.
7. Interfaces: Includes a variety of ports such as DC input, USB, Mini-USB (OTG), audio, RJ45 Ethernet, SD card slot, HDMI, and optional NFC.
8. Installation Options: Can be wall-mounted, installed in-wall, placed on a holder or stand, or customized with OEM open-frame designs.

Display Specifications:

• Screen Size: 12.1 inches
• Screen Type: FULL HD IPS
• Resolution: 1280×800 pixels
• Brightness: 300 cd/m²
• Contrast Ratio: 1000:1
• Aspect Ratio: 16:10
• Display Area: 261×163mm

Standard Configuration:

• CPU: Rockchip RK3288 quad-core processor clocked at 2.0GHz
• RAM: 2GB
• ROM: 16GB
• OS: Android 6.0/7.1/8.1/9.0

Network Connectivity:

• WiFi: 802.11b/g/n
• Ethernet: RJ45 interface
• Bluetooth: Version 4.0
• 3G/4G: Supports external USB dongles

Interface Information:

• SD Card Slot: 1 slot (up to 32GB)
• Mini USB: 1 port for USB OTG functionality
• USB 2.0: 3 ports for various peripherals
• RJ45: 1 network interface
• Earphone Jack: 3.5mm headphone jack
• Power Jack: 4.0mm DC power input

Multimedia Features:

• Video Support: MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV (up to 1080P)
• Audio Support: MP3, WMA, AAC, etc.
• Image Support: JPEG, JPG

Additional Specifications:

• Wireless Mouse/Keyboard Support
• Dual 2W Speakers
• Optional 2MP or 5MP Camera
• Multilingual OSD Support
• Pre-installed applications for various functionalities

Accessories:

• DC 12V/2A Adapter
• Desktop Bracket (optional)
• User Manual
• Theftproof Cover Plate

Product Dimensions:

• Outer Box: 10 pieces per carton
• Dimensions (L×W×H): 39×38×65cm
• Net Weight: 10kg
• Gross Weight: 11kg

Applications: Ideal for a wide range of environments including shopping malls, retail stores, restaurants, coffee shops, home decor, weddings, automotive showrooms, digital signage, electronic menus, and promotional venues.

Innovative Features:

• Capacitive Touch Panel with 10-point multi-touch support for enhanced interactivity.
• Versatile Applications: Suitable for public spaces, museums, stadiums, supermarkets, bars, exhibitions, hotels, and more.
• Multiple Ports: RJ45, HDMI, USB, MicroSD, DC for flexible connectivity options.
• APP Installation Support: Easily install applications from the Play Store for customized functionalities.

Please Note: Products come with power plugs designed for use in the United States. Compatibility with sockets and voltages in other countries may require adapters or converters. Please verify compatibility before purchase.

Are you truly acquainted with the Android touch all-in-one?

As the Android mobile operating system gradually asserts its dominance worldwide, the multifaceted nature of its capabilities has catalyzed the proliferation of smarter electronic devices among the populace. With the iterative refinement of the Android system, the individual user market has seen a steady expansion. The evolution of commercial applications has propelled the emergence of Android all-in-one computers, with their core value gradually permeating various facets of daily work, life, public services, and business endeavors.

The open-source nature of the Android touch all-in-one system empowers manufacturers to customize the operating system to a significant extent, facilitating better alignment with their hardware configurations and fostering seamless integration.

Furthermore, the development-friendly environment of the Android platform offers third-party developers ample freedom within a vast and unrestrictive ecosystem, envisioning a plethora of innovative and bespoke software applications tailored for Android touch all-in-one devices.

These inherent advantages of the Android system, coupled with the utilization of single-chip solutions, enhance our control over devices, thereby broadening the spectrum of applications for Android touch all-in-one machines in our daily lives. With support for dual input methods, keyboard compatibility, and access to a myriad of applications, the Android touch all-in-one transcends its conventional perception as a mere utilitarian device, imbued instead with a touch of humanity.

SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD presents customers with intelligent display solutions ranging from 7 to 32 inches in diameter. The Android touch all-in-one features a ten-point capacitive touch screen, open ROOT permission for secondary development, front-facing HD camera, built-in NFC/ID card reader, POE network port for power supply, support for both wired and wireless networks, high-definition HDMI output, and 485/232 serial port communication. Moreover, the product offers customization options including interface, size, and appearance to cater to diverse preferences and requirements.

Do you really know about Android touch all-in-one?

As the Android mobile operating system gradually becomes the mainstream device in the world, the diversification of its functions has promoted more intelligent electronic products to be further popularized among the public. With the iterative maturity of the Android system, the market for individual users has gradually expanded. The development of commercial use has driven the emergence of the Android all-in-one computer with this as the core value, which has gradually appeared widely in people’s daily work and life, public services and business activities.

Android touch all-in-one system open source, Android is open source, allowing modification, which to a large extent allows Android touch all-in-one manufacturers to change the version according to their own hardware, so as to better adapt to the hardware, and form a good combination with it.

Android touch all-in-one development convenience, Android platform to provide third-party developers with a very broad, free environment, will not be hindered by various rules and regulations, you can imagine, how many novel and unique software will be applied to Android touch all-in-one.

These advantages of the Android system and the use of a single chip in the Android system will make our control more perfect, and the Android touch all-in-one machine is widely used in our lives. Support keyboard dual input and the installation of tens of thousands of applications, when you think of the Android touch all-in-one machine, the impression in your mind is no longer just a cold machine, but a little bit of “human touch”.

SAEF TECHNOLOGY LTD provides customers with 7-32 inch center size intelligent display application solutions. Android touch all-in-one ten-point capacitive touch, open ROOT permission to support secondary development, front HD camera, built-in NFC/ID card reader, POE network port power supply network, support wired/wireless network, high-definition HDMI output, 485/232 serial port communication. The product supports customized interface, customized size, and customized appearance.

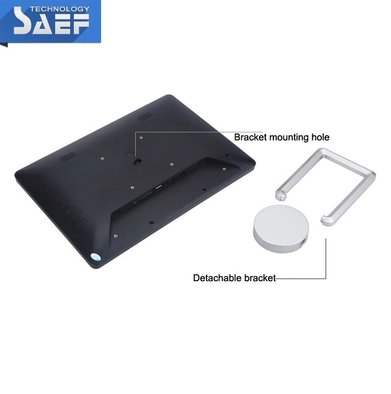

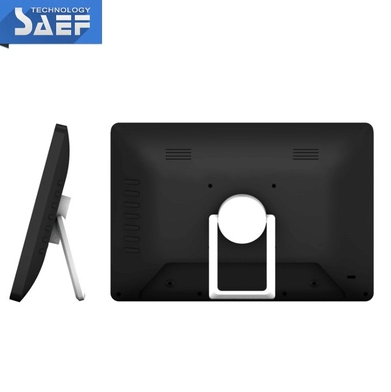

12.1 inch Wall Mounted All In One Touch Screen Wifi Android Tablet Pc With Rj45 Poe Product Drawing

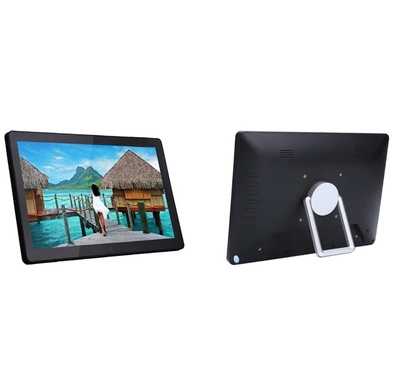

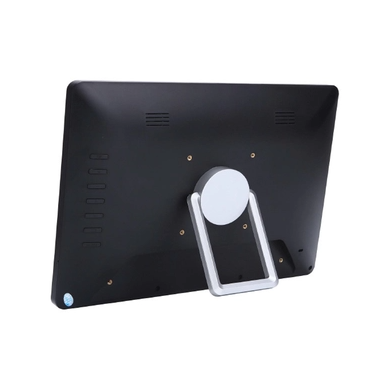

12.1 inch Wall Mounted All In One Touch Screen Wifi Android Tablet Pc With Rj45 PoeProduct Image
