128X64 dots Monochrome Graphic LCD Display Module COG with ST7567 IC FSTN Positive

Monochrome LCD Module Graphic Type 128X64 Dots COG with ST7567 IC FSTN Positive LCD

A Glimpse into the 128×64 COG Graphic LCM

Experience the innovation with ShenZhen Techstar Electronics Incorporated Co., Ltd’s SF-BS12864H-GW, a monochrome graphic type 128×64 COG LCD module.

Key Highlights:

• Screen: Graphic Monochrome LCD Module
• Clarity: 128×64 Resolution
• Optimal View: 6:00 Viewing Angle
• Sleek Design: 65×84.4×7.8mm Outline Dimension
• Powerhouse: Equipped with ST7567 Driver IC
• Connectivity: 4-line SPI LCM Interface Type
• Resilience: Operating Temperature: -20°C to +70°C; Storage Temperature: -30°C to +80°C
• Customize Your Experience: Touch Panel Optional

Features Unleashed:

• The SF-BS12864H-GW model boasts the ST7567 controller or an equivalent IC, seamlessly supporting a 4-line SPI serial interface.
• With a typical supply voltage of 3.3V, this SF-BS12864H-GW graphic Display LCD 128×64 module leads the pack.
• Illuminate your display with the white LED backlight of this FSTN Positive transflective mode SF-BS12864H-GW 12864 Graphic LCD module.
• From chilling -20℃ to scorching +70℃, this model’s versatility shines through, with storage capabilities ranging from -30℃ to +80℃.
• Tailor your experience with a customizable touch panel, although the LCD module comes sans touch panel originally.
• Versatile in application, this module finds its place in POS terminals, cash readers, handheld devices, mobile food ordering machines, meters and instruments, medical analyzers, and beyond.

Ensuring Quality Excellence

• Each item undergoes rigorous testing thrice to guarantee impeccable quality.
• With over 14 years of expertise in the LCD industry, our QA manager leads the team. Key manufacturing and QA operators boast 7-8 years of experience in the LCD sector. Our team members are exceptionally proficient and well-versed in the LCD domain, committed to ensuring top-notch quality for our clientele.

Frequently Asked Questions:

Q1. Can I request a sample order?

A: Absolutely, we encourage sample orders for quality assessment. We accept mixed samples of various item numbers.

Q2. What is the lead time?

A: For off-the-shelf products, in-stock samples are available immediately. Sample remaking takes 1-1.5 weeks, while mass production requires 4-6 weeks. For design-in products, expect a 2-3 day counter drawing proposal, 2 weeks for sample making upon drawing approval, and 5-6 weeks for trial-run/mass production post sample approval.

Q3. Are there any MOQ limits for sample and production orders?

A: We have a low MOQ policy, with 3-5 pieces for sample checking and a standard mass production MOQ of 1K/lot. We accommodate quantities lower than the MP MOQ for trial-run/PP-run orders.

Q4. What are the shipping options and delivery times?

A: We ship via DHL, UPS, FedEx, or TNT, with delivery typically within 5-7 days. Airline and sea shipping are also available upon request.

Q5. How do I initiate an order for an LCD module?

A: Firstly, inform us of your requirements or application.

Secondly, we provide a quotation based on your specifications or our recommendations.

Thirdly, upon sample confirmation, place a deposit for the formal order.

Fourthly, we proceed with production.

Q6. Can I imprint my logo on the LCD product?

A: Certainly. Kindly notify us during the design stage, and we will create samples featuring your logo for testing and approval. Mass production will commence upon sample approval.

Q7: Do you provide a product guarantee?

A: Yes, we offer a 1-year warranty on all our products.

Q8: How are faulty products handled?

A: Firstly, our products undergo stringent quality control, ensuring a defective rate of less than 0.2%.

Secondly, during the warranty period, we replace defective LCDs with new orders for small quantities. For defective batch products, we offer repairs and reissue or discuss potential recall options based on individual circumstances.

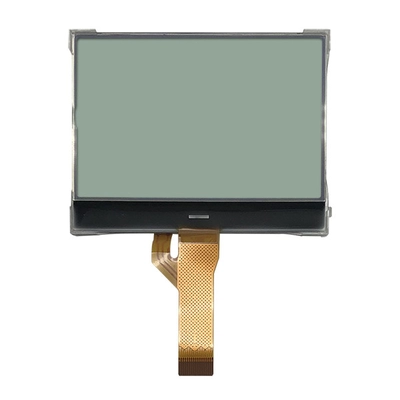

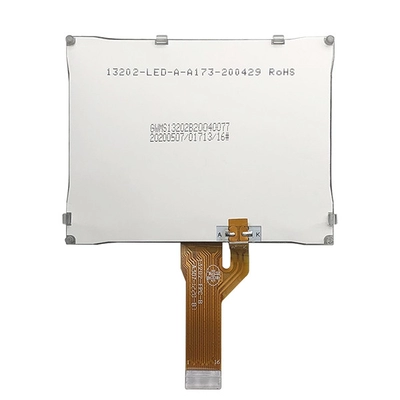

128×64 COG Graphic LCM Real Product Demostration
