14 Inch 1920*1080 Full Hd Ips Capacitive Multi-Touch Screenandroid Monitor

Introducing our 14-Inch Android Monitor with Full HD IPS Capacitive Multi-Touch Screen

Specifications:

• Screen Size: 14 inches (10.1 inches also available)
• Resolution: 1920×1080/1280*800
• Installation: Desktop

Key Features:

1. Processor: High-Performance and Energy-Efficient CPU Options – KR3128/A64/KR3566/KR3568/RK3288/KR3399
2. RAM: 2GB (1GB/4GB optional) (8GB OEM)
3. ROM: 8GB (16GB optional) (32GB/64GB OEM)
4. Screen Type: 10-inch/14-inch IPS Screen with Highlight LED Backlight
5. Touch Screen: Optional 10-Point Capacitive Multi-Touch
6. Operating System: Android 6.0/7.1/8.1/9.0/11…
7. Interfaces: DC Input/USB/Mini-USB(OTG)/Audio/RJ45 Ethernet/SD Card (POE power/HDMI Optional)
8. Installation Options: Wall Mounted/In Wall/Holder/Stand/OEM Open Frame

Display Screen Details:

• Size: 14 inches
• Resolution: 1920×1080
• Brightness: 300 cd/m²
• Contrast Ratio: >1000:1
• Aspect Ratio/Display Area: 16:9 / Display Area: 308×173mm

Standard Configuration:

• CPU: Rockchip RK3568 Quad-Core A55 Processor, Clock Speed 2.0GHz
• RAM: 2GB
• ROM: 16GB
• System: Android 11

Network Configuration:

• WiFi: 802.11b/g/n
• Ethernet: RJ45 Network Interface
• Bluetooth: BT 4.2
• 3G/4G: Supports External 3G/4G USB Dongle

Interface Information:

• TF Card: 1×TF Card Slot (Supports up to 32GB)
• USB 2.0: 2×USB 2.0 Interfaces (Support U Disk, Mouse, Keyboard, Printer, etc.)
• RJ45: 1×RJ45 Network Interface
• Earphone: 1×3.5mm Headphone Jack
• HDMI Out: 1×HDMI Out
• Power: 1×4.0mm Power DC Jack

Multimedia Features:

• Video: Supports MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (Up to 1080P)
• Audio: Supports MP3, WMA, AAC, and more
• Picture: JPEG, JPG

Other Specifications:

• Wireless Mouse/Keyboard: Supported
• Speakers: 2×2W
• Camera: Standard 2MP (Optional 5MP)
• OSD Language: Chinese, English, German, Korean, Russian, French, Spanish, Arabic, etc.
• Software Support: Pre-installed Applications (Maps, Games, Email, Self-Developing Apps, etc.)

Accessories:

• Adapter: One (Specifications: 12V/2A)
• Desktop Bracket: One (Remote Control Optional)
• User Manual: One

Product Size Information:

• Outer Box: 6pcs/Carton
• Dimensions: Length Width Height: 784229CM
• Net Weight: 10.4KG
• Gross Weight: 11.4KG

Applications:

• Face Recognition
• Robot Display
• POS System
• Security Monitoring
• Smart Home
• Self-Service Terminal
• Medical Device Display
• Advertising Information Display
• Rail Traffic Display

• Automatic Systems: Intelligent Self-Service Terminals, Intelligent Retail Terminals, O2O Smart Devices, Robot Equipment, etc.
• Public Places: Subway Stations, Airports, Train Stations, Gas Stations, Toll Stations, Bookstores, Parks, Exhibition Halls, Stadiums, Museums, Convention Centers, Ticket Agencies, HR Markets, Lottery Centers
• Business Organizations: Supermarkets, Large-Scale Shopping Malls, Exclusive Agencies, Chain Shops, Large-Scale Sales, Star-Rated Hotels, Restaurants, Travel Agencies, Pharmacies
• Financial Organizations: Banks, Securities Firms, Funds, Insurance Companies, Pawnshops
• Non-Profit Organizations: Telecommunications Companies, Post Offices, Hospitals, Schools
• Real Estate Properties: Apartments, Villas, Offices, Commercial Buildings, Model Rooms, Property Brokers
• Entertainment Venues: Movie Theaters, Fitness Centers, Country Clubs, Clubs, Massage Rooms, Bars, Cafes, Internet Cafes, Beauty Shops, Golf Courses, and more.

Advantages of the Product

IPS Full Viewing Angle (80/80/80/80): Experience exceptional viewing angles from all directions—whether positioned on top, placed on a table, or held in hand. Versatility at its finest.

Superb Display Performance: Delight in impeccable background color rendition, luminance, viewing angle, and intensity, ensuring an immersive visual experience.

Wide Temperature Range: Designed for industrial settings, withstand temperatures ranging from -30℃ to +80℃, ensuring reliable performance in diverse environments.

Customizable Touch Options: Tailor your experience with the option for resistive touch screen or opt for a personalized capacitive touch panel (CTP). Flexible Printed Circuit (FPC) customization available upon request.

Cost-Effective Solution: Enjoy cost savings without compromising quality—an affordable choice within the LCD industry.

Effortless Installation and Maintenance: Simplify your setup and upkeep with easy installation and maintenance procedures.

Understanding Resolution

Resolution serves as the yardstick for bitmap image detail.

Higher resolutions equate to more pixels, translating to sharper images and superior print quality. However, this comes with increased file storage requirements.

Resolution is quantified in metrics like DPI (dots per inch), LPI (lines per inch), and PPI (pixels per inch). Notably, LPI specifically denotes optical resolution, distinguishing it from DPI and PPI. Conversions between LPI and DPI are not feasible and must be approximated empirically. Furthermore, PPI and DPI often get conflated despite serving distinct purposes. Each metric operates in different domains—pixels pertain to computer displays, while dots are relevant in printing contexts.

14 Inch 1920*1080 Full Hd Ips Capacitive Multi-Touch Screenandroid Monitor Product Drawing

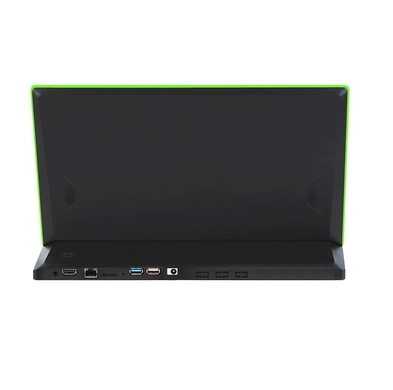

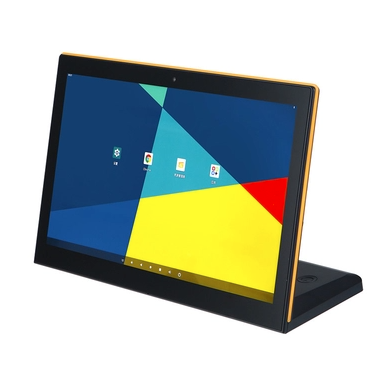

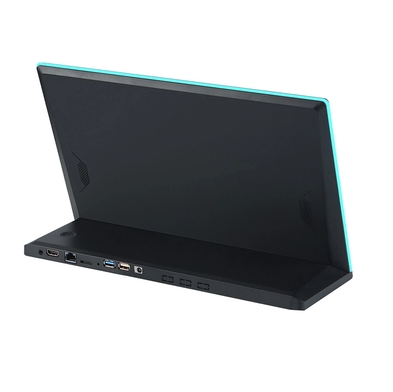

14 Inch 1920*1080 Full Hd Ips Capacitive Multi-Touch Screenandroid Monitor Product Image
