14 Inch Android Advertising Monitor 19201080 Full Hd Ips With Touch Capacitive With RK3568 Quad Core

Introducing the 14-Inch Android Advertising Monitor: Immersive Full HD Display with Touch Capacitive Technology and RK3568 Quad-Core Processor

Specifications:

• Screen Size: 14 inches (also available in 10.1 inches)
• Display Resolution: 1920×1080/1280*800
• Installation: Desktop

Key Features:

1. Processor: High-performance and energy-efficient CPU options including KR3128, A64, KR3566, KR3568, RK3288, KR3399.
2. RAM: Standard 2GB (optional 1GB/4GB, OEM 8GB).
3. Storage: Standard 8GB (optional 16GB, OEM 32GB/64GB).
4. Screen Type: Full HD IPS screen (available in 10-inch and 14-inch variants) with vibrant LED backlighting.
5. Touch Screen: Optional 10-point capacitive multi-touch capability.
6. Operating System: Supports Android versions 6.0 through 11.
7. Interfaces: Includes DC input, USB, Mini-USB (OTG), Audio, RJ45 Ethernet, SD card slot (with optional POE power/HDMI).
8. Installation Options: Wall-mounted, in-wall, with stand, or custom OEM open frame designs.

SFLR140T Android system initiates automatic picture or video rotation upon boot-up.

Key Functions:

• Automatic Startup: SFLR140T enables seamless auto-start broadcasting. Permissions for AndroidManif.xml are automatically configured, facilitating development for video and audio files within specified directories.
• Prioritized Playback: Prioritizes video playback when both video and picture content are present, ensuring optimal media experience.
• Customizable VideoView: Customizes video playback to eliminate black bar display issues, ensuring full-screen viewing.
• Permission Management: Utilizes system signatures to minimize dynamic permission requests, enhancing user experience.

Display Specifications:

• Screen Size: 14 inches with Full HD IPS display.
• Resolution: 1920×1080
• Brightness: 300 cd/m²
• Contrast Ratio: >1000:1
• Aspect Ratio/Display Area: 16:9, with a display area of 308×173mm

Standard Configuration:

• CPU: Rockchip RK3568 quad-core A55 processor clocked at 2.0GHz.
• RAM: 2GB
• ROM: 16GB
• Operating System: Android 11

Network Connectivity:

• WiFi: Supports 802.11b/g/n standards.
• Ethernet: RJ45 network interface supported.
• Bluetooth: Version 4.2
• 3G/4G: External 3G/4G USB dongle support.

Interface Details:

• TF Card Slot: 1×TF card slot (up to 32GB)
• USB 2.0: 2×USB 2.0 interfaces (support for U disk, mouse, keyboard, printer, etc.)
• RJ45: 1×RJ45 network interface
• Earphone Jack: 1×3.5mm headphone jack
• HDMI Out: 1×HDMI out
• Power Input: 1×4.0mm DC power jack

Multimedia Support:

• Video Formats: MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (up to 1080P)
• Audio Formats: MP3, WMA, AAC, and more
• Image Formats: JPEG, JPG

Additional Features:

• Wireless Mouse/Keyboard Support
• Dual 2W Speakers
• Standard 200MP Camera (optional 500MP)
• Multi-language OSD support including Chinese, English, German, Korean, Russian, French, Spanish, Arabic, etc.
• Pre-installed applications including maps, games, email, and customizable apps.

Accessories Included:

• Power Adapter: One (12V/2A)
• Desktop Bracket: One (Remote control optional)
• User Manual: One

Product Size Details:

• Packaging: 6 units per carton
• Outer Box Dimensions: Length 78cm, Width 42cm, Height 29cm
• Net Weight: 10.4kg
• Gross Weight: 11.4kg

Applications: Ideal for various applications including face recognition, robot displays, POS systems, security monitoring, smart homes, self-service terminals, medical device displays, advertising information displays, rail traffic displays, and more.

Suitable for:

• Automatic Systems: Intelligent self-service terminals, O2O smart devices, robotic equipment, etc.
• Public Places: Subway stations, airports, gas stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR markets, lottery centers, etc.
• Business Organizations: Supermarkets, malls, exclusive agencies, chain stores, hotels, restaurants, travel agencies, pharmacies, etc.
• Financial Organizations: Banks, securities firms, funds, insurance companies, pawnshops, etc.
• Non-profit Organizations: Telecommunication companies, post offices, hospitals, schools, etc.
• Real Estate Properties: Apartments, villas, offices, commercial buildings, model rooms, property agencies, etc.
• Entertainment Venues: Cinemas, fitness centers, clubs, massage parlors, bars, cafes, internet cafes, beauty salons, golf courses, etc.

The resolution of a bitmap image determines its level of detail. Broadly speaking, higher resolution translates to more pixels, yielding sharper images and enhanced print quality. However, this uptick in resolution also corresponds to increased file storage requirements. Units such as DPI (dots per inch), LPI (lines per inch), and PPI (pixels per inch) quantify resolution. Among these, only LPI directly correlates with optical resolution. While DPI and PPI fall under the resolution umbrella, they carry distinct meanings from LPI. Notably, LPI and DPI are not directly convertible and require empirical estimation. Moreover, there’s a tendency to conflate PPI and DPI, despite their disparate applications. Technically, “pixels” pertain solely to computer displays, while “dots” are exclusive to printing.

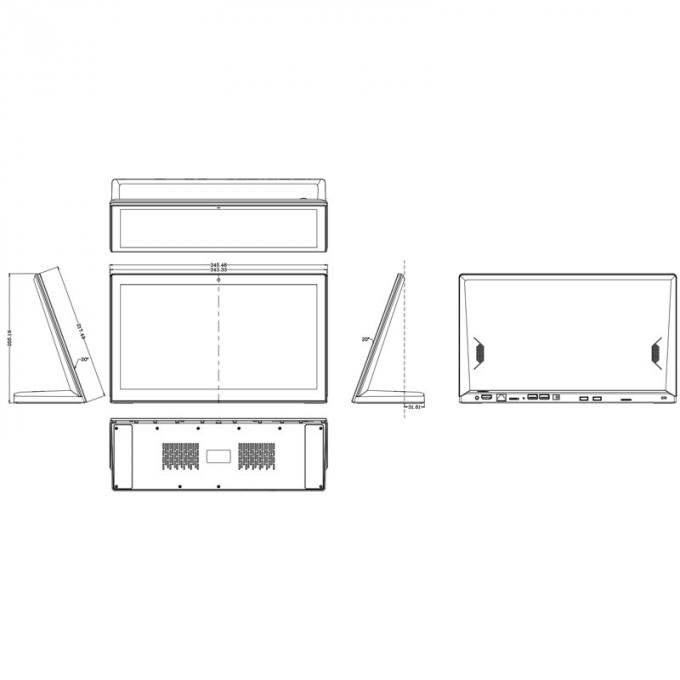

14 inch 1920*1080 full HD capacitive multi-touch screen Android monitor Product Drawing

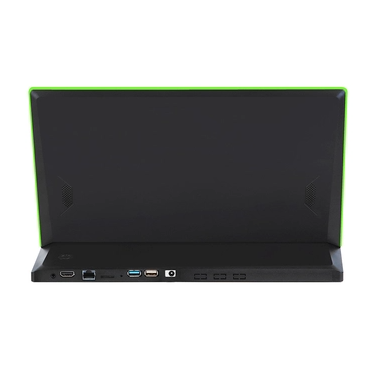

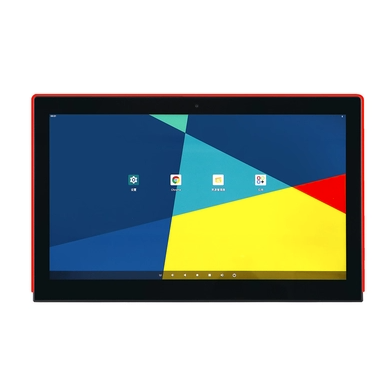

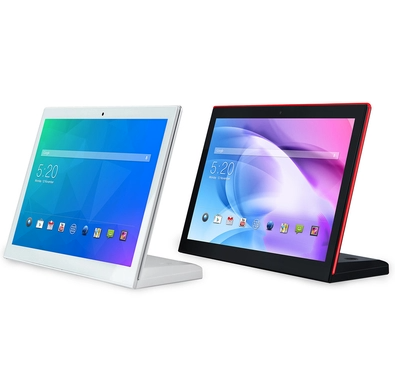

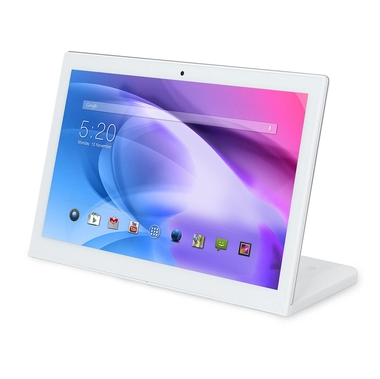

14 inch 1920*1080 full HD capacitive multi-touch screen Android monitor Product Image
