Description
14-inch IPS 16:10 Ratio TFT Monitor with 920×1200 Resolution & 5-Point Capacitive Touch Control
Introducing the SFTO1400JD-7087A-CT, a color active matrix TFT LCD module featuring amorphous silicon TFTs (Thin Film Transistors) as active switching devices. With a 14.0-inch diagonally measured active area, this module boasts Full-HD resolutions of 1920 horizontal by 1200 vertical pixel array. Each pixel is subdivided into red, green, and blue dots arranged in a vertical stripe formation, enabling the display of 16.2 million (6bit+2FRC) colors with a color gamut of 45%.
Primarily designed for Notebook PCs, this TFT-LCD panel incorporates a built-in LED driver for backlighting. All input signals are compatible with eDP1.2 interface standards, ensuring seamless integration and operation.
Product Specifications:
- Experience the brilliance of this 14-inch TFT display, boasting a sleek design and supporting a 2-lane eDP interface with impressive 2.7Gbps link rates.
- Enjoy the convenience of its slim and lightweight build, making it effortlessly portable for your on-the-go lifestyle.
- Dive into vibrant visuals with a color depth of 16.2 million (rounded up) and a color gamut of 45%, ensuring stunning clarity and accuracy in every image.
- Illuminate your workspace with ease, thanks to the built-in single LED lighting bar positioned at the bottom for a horizontal glow.
- Stay connected effortlessly with the Data Enable Signal mode, ensuring seamless communication and data transmission.
- Embrace sustainability with our environmentally friendly IPS TFT LCD, proudly RoHS and Halogen-free for a greener tomorrow.
- Enjoy enhanced functionality with the onboard LED driving circuit and EDID chip, streamlining performance for optimal user experience.
- Experience efficiency like never before with low driving voltage and minimal power consumption, perfect for prolonged usage without compromising on performance.
- Customize your viewing experience with adjustable backlight brightness in DC mode, allowing you to adapt to any lighting environment with ease.
| Keywords: | 14″ TFT Screen |
|---|---|
| Resolution: | 1920*1200 Pixels |

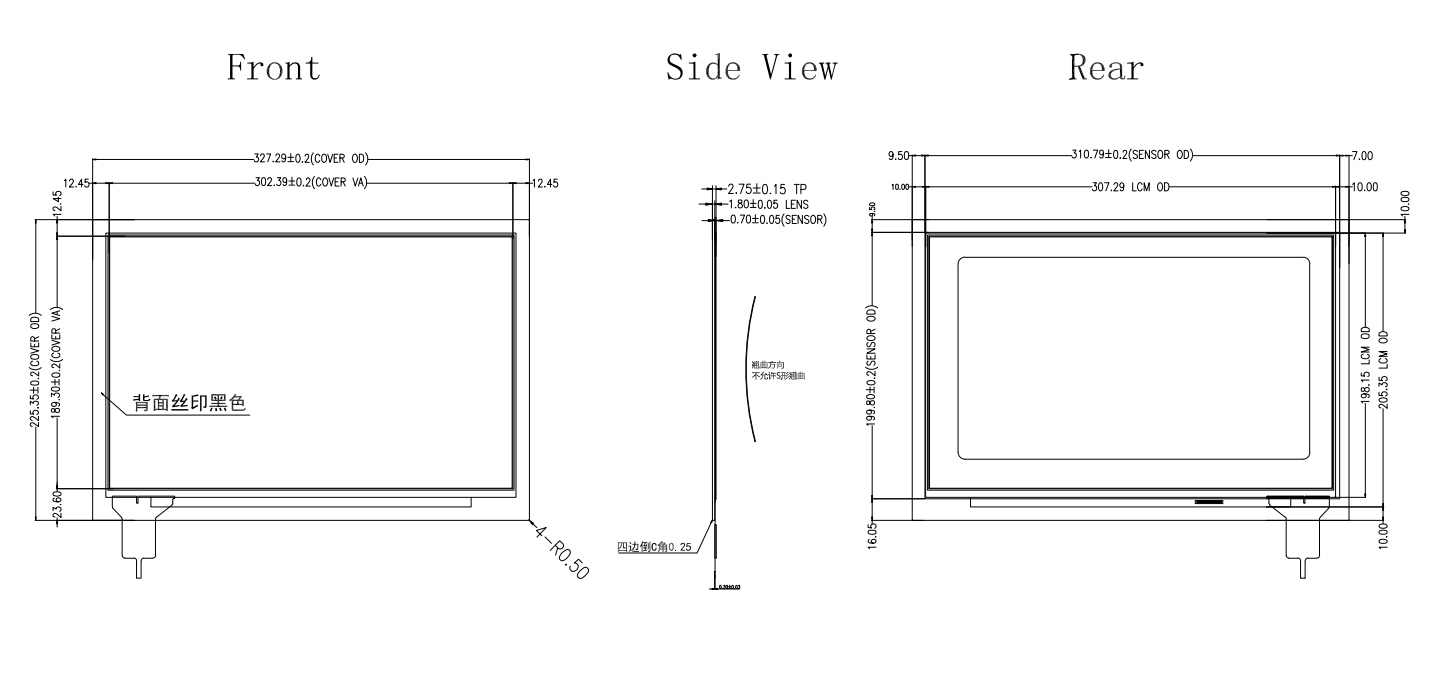

| LCD Size: | 307.29*198.15 mm |
| AA Dimension: | 301.59*188.49 mm |
| LCD Interface: | 2 Lane EDP Interface With 2.7Gbps Link Rates |
| CTP Interface: | IIC |
| Surface Luminance: | 300 Cd/m2 – 1000 Cd/m2 |
| Touch Screen: | CTP (Capacitive Touch Screen) |
| LED Lifetime: | 40,000 Hours |
| Operating Temp.: | –20℃ To +70℃ |
| Display Type: | IPS Full Viewing Angles |
| Compliance: | REACH & RoHS Compliant |

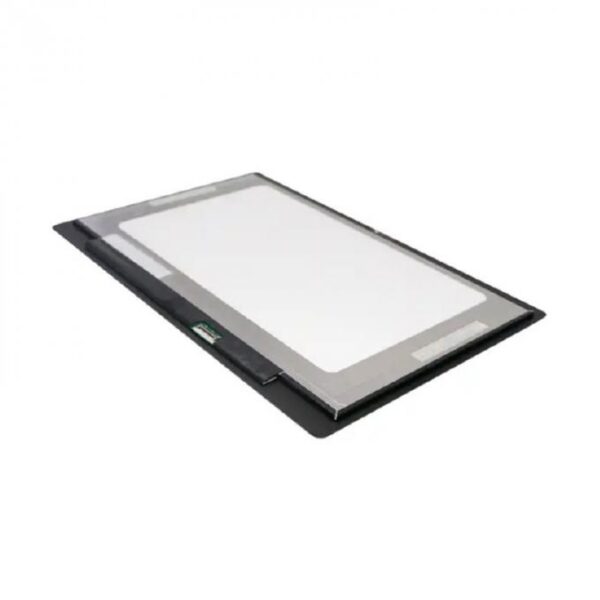

14 inch TFT Monitor 1920*1200 Dots EDP Interface Product Image
Pin Assignments for the Interface Connector
| Terminal | Symbol | Functions |
| Pin No. | Symbol | Description |
| 1 | NC | No Connection |
| 2 | H_GND | Ground |
| 3 | LANE1_N | eDP RX Channel 1 Negative |
| 4 | LANE1_P | eDP RX Channel 1 Positive |
| 5 | H_GND | Ground |
| 6 | LANE0_N | eDP RX Channel 0 Negative |
| 7 | LANE0_P | eDP RX Channel 0 Positive |
| 8 | H_GND | Ground |
| 9 | AUX_CH_P | eDP AUX CH Positive |
| 10 | AUX_CH_N | eDP AUX CH Negative |
| 11 | H_GND | Ground |
| 12 | LCD_VCC | Power Supply, 3.3V (typ.) |
| 13 | LCD_VCC | Power Supply, 3.3V (typ.) |
| 14 | NC | No Connection |
| 15 | H_GND | Ground |
| 16 | H_GND | Ground |
| 17 | HPD | Hot Plug Detect Output |
| 18 | BL_GND | LED Ground |
| 19 | BL_GND | LED Ground |
| 20 | BL_GND | LED Ground |
| 21 | BL_GND | LED Ground |
| 22 | BL_ENABLE | LED Enable Pin(+3.3V Input) |
| 23 | BL_PWM | System PWMÂ Signal Input |
| 24 | NC | No Connection |
| 25 | NC | No Connection |
| 26 | BL_POWER | LED Power Supply 5V-21V |
| 27 | BL_POWER | LED Power Supply 5V-21V |
| 28 | BL_POWER | LED Power Supply 5V-21V |
| 29 | BL_POWER | LED Power Supply 5V-21V |
| 30 | NC | No Connection |
 Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Remarks |
| Power Supply Voltage | VDD | -0.3 | 4.0 | V |
Note 1 |
| eDP input Voltage | VeDP | 0 | 2.0 | V | |
| Logic Supply Voltage | VIN | VSS-0.3 | VDD+0.3 | V | |
| Operating Temperature | TOP | 0 | +50 | °C |
Note 2 |
| Storage Temperature | TST | -20 | +60 | °C | |
 Electrical Specifications
| Parameter | Min. | Typ. | Max. | Unit | Remarks | ||
| Power Supply Voltage | VDD | 3.0 | 3.3 | 3.6 | V | Note 1 | |
| Permissible Input Ripple Voltag e | VRF | – 10%
VDD |
– |
+10% VDD | V | @ VDDÂ = 3.3Â V | |
| Power Supply Inrush Current | Inrush | – | – | 2 | A | ||
| Power Supply Curren t | Mosaic |
IDD |
– | – | 181.8 | mA |
Note 1 |
| RGB | – | – | 303 | mA | |||
|
Power Consumption |
Mosaic | PM | – | – | 0.6 | W | |
| RGB | PRGB | – | – | 1.0 | W | ||
| BLU | PBL | – | – | 3.95 | W | Note 2 | |
| Total | PTotal | – | – | 4.55 | W | @Mosaic | |
LED Driving Guideline Specifications
| Parameter | Min. | Typ. | Max. | Unit | Remarks | ||
| LED Forward Voltage | VF | – | – | 2.9 | V | ||
| LED Forward Current | IF | – | 14.5 | – | mA | ||
| LED Power Input Voltage | VLED | 5 | 12 | 21 | V | ||
| LED Power Input Current | ILED | – | – | 208.3 | mA |
Note 1 |
|
| LED Power Consumption | PLED | – | – | 3.95 | W | ||
| Power Supply Voltage for LED Driver Inrush | Iled
inrush |
– |
– |
2 | A | Note 3 | |
| LED Life-Time | N/A | 30,000 | – | – | Hour | IF = 14.5mA Note 2 | |
| EN Control Le vel | Backlight On |
VBL_EN |
2.5 | – | 5.0 | V | |
| Backlight Off | 0 | – | 0.5 | V | |||
| PWM Control Level | High Level |
VBL_PWM |
2.5 | – | 5.0 | V | |
| Low Level | 0 | – | 0.5 | V | |||
| PWM Control Frequency | FPWM | 200 | – | 10,000 | Hz | ||
| Duty Ratio | 5 | – | 100 | % | |||
Optical Specifications
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | Remark | |
|
Viewing Angle RÂ ange |
Horizontal | Θ3 |
CR >Â 10 |
80 | 85 | – | Deg. |
Note 1 |
| Θ9 | 80 | 85 | – | Deg. | ||||
| Vertical | Θ 12 | 80 | 85 | – | Deg. | |||
| Θ6 | 80 | 85 | – | Deg. | ||||
| Luminance Contrast Ratio | CR | Θ = 0。 | 600 | 800 | – | Note 2 | ||
| Luminance of W hite | 5 Points | Yw |
Θ = 0。 ILED = 14.5mA |
255 | 300 | – | cd/m2 | Note 3 |
| White Luminanc e Uniformity | 5 Points | ΔY5 | 80 | – | – | % |
Note 4 |
|
| 13 Points | ΔY13 | 60 | – | – | % | |||
| White Chromaticity | Wx | Θ = 0。 | 0.283 | 0.313 | 0.343 | Note 5 | ||
| Wy | 0.299 | 0.329 | 0.359 | |||||
|
Reproduction of Color |
Red | Rx |
Θ = 0。 |
Typ.-0.03 |
0.589 |
Typ.+0.03 |
||
| Ry | 0.366 | |||||||
| Green | Gx | 0.354 | ||||||
| G
y |
0.569 | |||||||
| Blue | Bx | 0.163 | ||||||
| By | 0.120 | |||||||
| Color Gamut | Min | 45 | – | % | ||||
| Response Time
(Rising + Falling) |
TRT | Ta= 25℃ Θ = 0。 |
– |
20 | 25 | ms | Note 6 | |
| Cross Talk | CT | Θ = 0。 | – | – | 2.0 | % | Note 7 | |

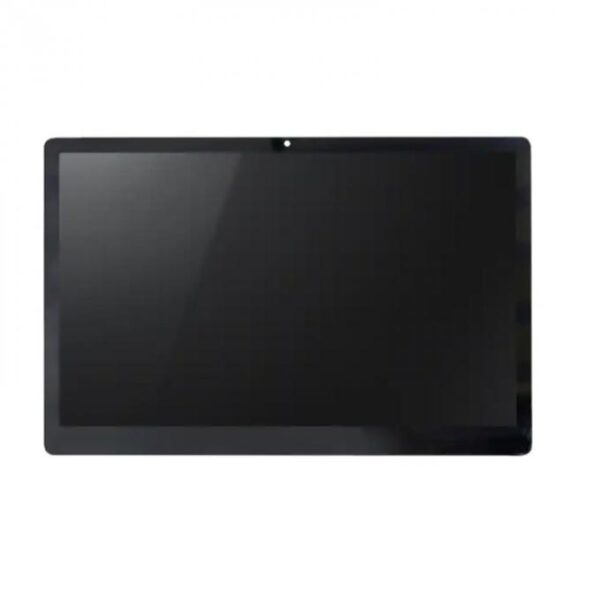

14 inch TFT Monitor 1920*1200 Dots EDP Interface Product Image
