15.6” Full HD LCD Digital Signage Display Commercial Advertising Video Media Player Android WiFi All in One PC

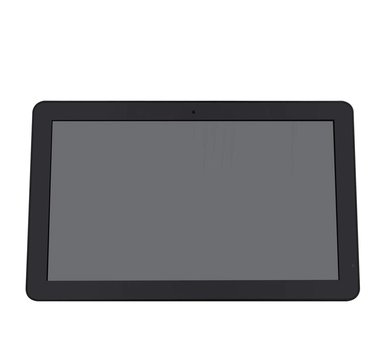

Introducing the SFYR156T: A Dynamic 15.6” Full HD LCD Digital Signage Display

Revolutionize your advertising strategy with the SFYR156T, a cutting-edge wall-mounted touch screen signage android player. Boasting a sleek 15.6-inch FULL HD IPS screen, this device is primed to captivate audiences with its stunning visuals, featuring a resolution of 1920×1080 dots. Whether mounted on a wall or placed on a desktop stand, the SFYR156T commands attention with its premium design and versatility.

Key Features:

1. Powerful CPU: Equipped with a high-performance and energy-efficient CPU, including options such as A64, RK3188, RK3288, KR3688, and KR3399.
2. Ample RAM: Enjoy seamless multitasking with 4GB of RAM (1GB/4GB options available, with 8GB OEM upgrade).
3. Spacious Storage: Store your media files effortlessly with 16GB of ROM (32GB optional, with 32GB / 64GB OEM configurations).
4. Vibrant Screen: Immerse yourself in vivid visuals on a 15.6-inch FULL HD IPS screen with a brightness of 350 cdm2 and a contrast ratio of 1000:1.
5. Intuitive Touch Screen: Optional 10 Points Capacitive multi-touch screen for seamless interaction.
6. Versatile Operating System: Choose from various Android versions, including Android 4.4, 5.1, 6.0, 7.1, 8.1, 9.0, and 11.
7. Flexible Connectivity: Featuring a range of interfaces including DC input, USB, Mini-USB (OTG), Audio, RJ45 Ethernet, SD card (with optional POE power/HDMI).

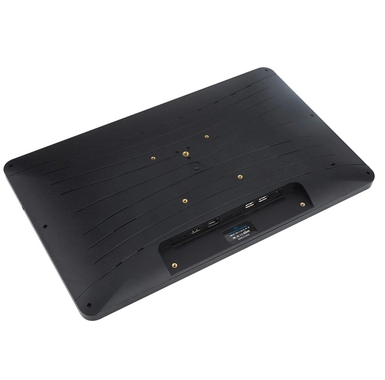

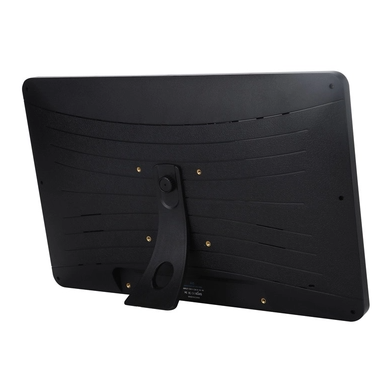

8. Installation Options: Mount the SFYR156T on the wall, in-wall, use a holder, stand, or opt for OEM open frame installation.

Display Specifications:

• Screen Size: 15.6 inches
• Resolution: 1920×1080
• Brightness: 350 cdm2
• Contrast Ratio: 1000:1
• Screen Scale/Display Area: 16:9 / 343×192mm

Standard Configuration:

• CPU: Rockchip RK3399Dualcore Cortex-A72+Quadcore Cortex-A53CPU
• RAM: 4GB
• ROM: 16GB
• System: Android 7.1 / 8.1 / 9.0 OS

Network Configuration:

• WiFi: 802.11b/g/n
• Ethernet: Supports RJ45 network interface
• Bluetooth: Bluetooth 4.0
• 3G/4G: External support via USB dongle

Interface Information:

• SD Card Slot: 1×SD card slots (up to 32GB)
• Mini USB: 1×USB OTG
• USB 2.0: 3×USB 2.0 interface
• RJ45: 1×RJ45 network interface
• Earphone Jack: 1×3.5mm headphone jack
• Power Jack: 1×4.0mm power DC jack

Multi-Media Features:

• Video: Supports MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (up to 1080P)
• Audio: Supports MP3, WMA, AAC, and more
• Picture: JPEG, JPG

Additional Parameters:

• Wireless Mouse & Keyboard Support
• Speakers: 2×2W speakers
• Camera: Standard 2.0MP (optional 5.0MP)
• OSD Language: Multiple language support including Chinese, English, German, Korean, Russian, French, Spanish, Arabic, etc.
• Software Support: Pre-installed applications for maps, games, email, and more.

Accessory Information:

• Adapter: DC-In 12V/2A
• Desktop Bracket: Optional remote control
• User’s Manual: Included

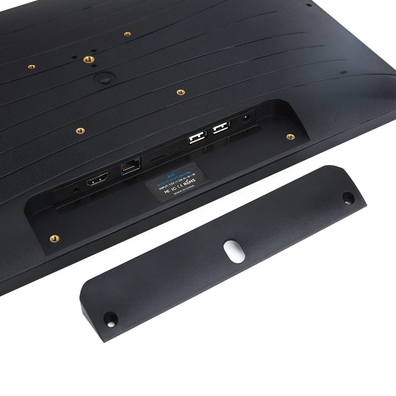

• Theftproof Cover Plate: Prevent theft by covering insert devices like U disks or SD cards.

Product Size Information:

• Outer Box: 10pcs/Carton
• Dimensions (L×W×H): 464275CM
• Net Weight: 21.8KG
• Gross Weight: 22.8KG

15.6 Inch 4GB+16GB WiFi display boasting a dazzling 350 nit Brightness and an exceptional IPS panel, delivering crystal-clear images from virtually any perspective. Perfect for a myriad of settings including shopping malls, retail outlets, eateries, home décor, events, photography studios, automotive showcases, and more.

Featuring a Capacitive Touch Panel, our display offers a responsive 10 Points Multi-touch screen, enabling seamless interaction between users and the device.

This versatile display finds its application in a plethora of scenarios such as public spaces, museums, sports arenas, shopping centers, bars, corporate offices, exhibitions, entertainment venues, hotels, academic institutions, and dining establishments. It serves a multitude of purposes including wayfinding, communication, advertising, and marketing.

Equipped with multiple ports including RJ45 100/1000M, HDMI-OUT, USB-A, MicroSD card slot, and DC, our display ensures connectivity to various devices and peripherals.

With support for APP installation from the play store, users can customize functionalities such as CMS, Screen Mirroring, split-screen viewing, weather updates, streaming media, and real-time cloud video downloads.

Please note, while our products are designed for use in the United States, compatibility with sockets and voltages in other countries may vary. Kindly ensure compatibility before making a purchase.

Key Advantages:

1. Exceptional IPS full viewing angle (80/80/80/80) ensures optimal visibility from various orientations.
2. Superior display performance including background color accuracy, luminance, viewing angle stability, and intensity.
3. Wide temperature range (-30℃ to +80℃) makes it suitable for industrial applications.
4. Flexible options including resistive touch screen compatibility and customizable CTP and FPC designs.
5. Cost-effective solution compared to competitors in the LCD industry.
6. Easy installation and maintenance, ensuring hassle-free operation.

Introducing our Android Autoplay Ad Demo Product model: SFYR156T – Loop Play – TV Vertical Display, developed on an Android set-top box platform. Ideal for advertising demonstrations with autoplay functionality upon booting.

Our set-top boxes, featuring civilian price tags, utilize H2, RK3128, and H8 chips, all priced under USD40, allowing for firmware customization including desktop modifications, APK management, and various additional functionalities.

Catering to diverse industrial needs, our set-top boxes find application in routers, download stations, GPS devices, dash cams, walkie-talkies, warehouse recording devices, advertising displays, and more.

In response to customer specifications:

1. First TV displays static menu upon startup, second TV showcases multiple product promotional images, while the third TV plays videos.
2. Two TVs require vertical placement, necessitating 90 or 270-degree screen rotation.
3. Each TV supports USB disk content replacement without internet connectivity.
4. Automatic playback upon startup without remote control dependency, ensuring cost-effectiveness.

Auto-run at startup feature utilizes Boot Broad Cast Receiver to initiate playback app upon android.intent.action.BOOT COMPLETED event.

USB flash drive acquisition process:

1. Iteration through all directories under system mnt for USB detection.
2. Generation of USB Receiver dedicated to recording USB, menu, movie, and promotional video directories.
3. Automatic picture rotation facilitated by gyroscope sensors in set-top boxes, eliminating the need for manual adjustments.

SFYR156T features include:

1. Automatic playback upon startup.
2. Playback selection based on directory contents: menu, promotional images, or videos.
3. Option for 90 or 270-degree screen rotation for vertical displays.
4. Continuous autoplay until power-off, ensuring uninterrupted operation.
