Description

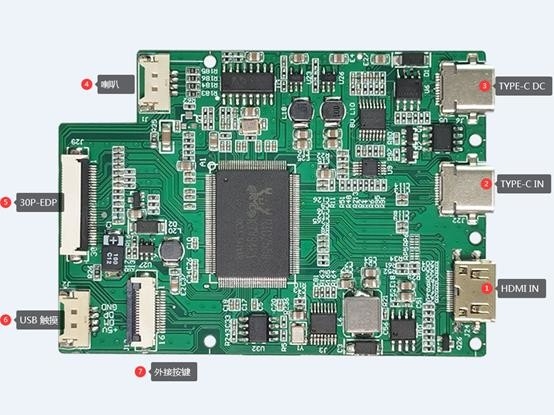

Introducing the SFHDMI156H-19201080A-CT, a marvel in display technology, boasting a 15.6-inch TFT LCD screen seamlessly fused with a capacitive touch panel and a cutting-edge driving board. This versatile module redefines visual experiences with its FHD display capability, supporting a maximum resolution of 2560X1440 @60HZ.
Dive into the world of connectivity with support for EDP screen interface signal output.
Explore a multitude of OSD languages, catering to diverse preferences.
Stay updated effortlessly with online software updates available directly from the motherboard.
Experience intuitive control with the capacitive touch screen feature.
Expand your horizons with dual HDMI 1.4 support, coupled with HDCP version 2.0 compatibility.
Enhance functionality with a built-in USB HUB, featuring two external USB2.0 ports for seamless mouse and keyboard connections.
Power up with ease, thanks to support for the PD bidirectional power supply protocol.
Immerse yourself in rich audio with 1.5W*2 power amplifier output.
Unleash the potential of the TYPEC port with DisplayPort Alt Mode compatibility.
|
Video input |
HDMI |
1080p | ||
| HDCP Version | 2.0 | |||
|
TYPE-C |
1080p | |||
| PD management | ||||
| USB2.0 HUB | ||||
| Operating power supply | DC 5~20V | |||
| Standby power consumption | ＜0.25W | |||
|
LCD Display |
Display | TFT LCD | ||
| Screen interface | EDP | |||
| Maximum Resolution | 2560*1440@60HZ | |||
| Operating Voltage | 3.3V(R33),5V(R5) | |||
| Headphone output | ＞150MW (32Ω/0dB 信号) | |||
| Speaker output | 2X1.5W THD+N＜10%@1KHZ | |||
| LED | Light adjusting method | PWM | ||

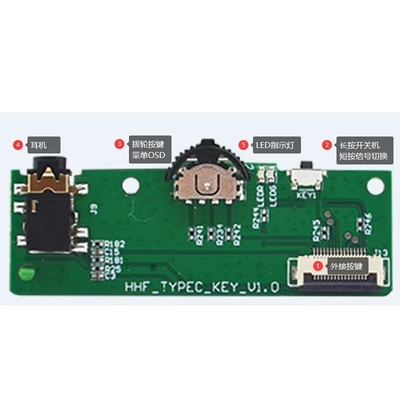

| Keyboard | POWER,KEY1,KEY2,AUTO,MENU, Optional | |||
| OSD language | Chinese/English/German/Korean/French/Spanish/Japanese and others | |||
HDMI 15.6 inch Display, Raspberry Pi 15.6″ Touch LCD Product Image
