Description
Introducing the SFTO1560SMT-7050A3-N PCAP TFT display, a cutting-edge 15.6-inch industrial display from a premier China supplier. This multi-media powerhouse boasts an optimum Full-HD resolution with an impressive 1000 Nits brightness, setting a new standard in visual excellence.
Crafted with precision, this display features an array of advanced technologies. Utilizing amorphous silicon TFTs as active switching devices, it delivers stunning graphics and crisp texts across its 15.6-inch screen. Each pixel is meticulously divided into RED, GREEN, and BLUE dots, arranged in a vertical stripe pattern, resulting in a vivid spectrum of 16.7 million colors with a color gamut of 45%.
But the innovation doesn’t stop there. The SFTO1560SMT-7050A3-N PCAP TFT display showcases its prowess with a 1920×3×1080 dotspanel and eDP Ver1.2 interface, ensuring seamless performance and compatibility. Plus, with a high-speed response and 6-bit color depth (utilizing Hi-FRC technology), this display delivers unparalleled clarity and precision in every frame.
Designed for versatility, this display excels in multimedia applications, thanks to its incorporated color filters that enhance brightness and picture clarity. Whether you’re gaming, designing, or streaming content, this display offers optimum viewing angles in all directions, ensuring a captivating visual experience every time.
And with features like edge-type LED backlighting, compatibility with RGB98% and NTSC45%, and compliance with RoHS and Halogen-free standards, this display prioritizes both performance and environmental responsibility.
Experience the future of visual technology with the SFTO1560SMT-7050A3-N PCAP TFT display. Upgrade your display experience today and witness the difference in clarity, brightness, and performance.
| Keywords: | USB PCAP TFT Display 15.6 Inch |
|---|---|
| Resolution: | 1920*1080 Pixels |
| LCD Size: | 350.76 X 204.96 X 2.9 Mm (w/o Touch) |
| LCD With Touch: | 384.4 X 231.3 X 9.25 Mm (with Touch) |
| Active Area: | 527.4 X 296.46 Mm |
| LCD Interface: | EDP |
| CTP Interface: | USB |
| Touch Screen: | CTP (Capacitive Touch Screen) |
| Surface Luminance: | 300 Cd/m2 – 1000 Cd/m2 |
| Operating Temp.: | -10℃ To +60℃ |
| Storage Temp.: | -20℃ To +60℃ |
| Display Type: | IPS Full Viewing Angles |
| Surface Treatment: | Haze 25%, 3H |
| Contrast Ratio: | 1000 |
| Display Color: | 16.7 M |
| LED Lifetime: | 30,000 Hours |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |

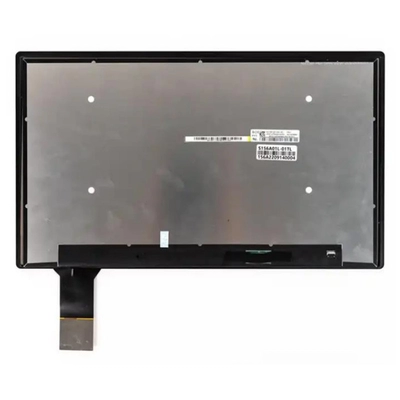

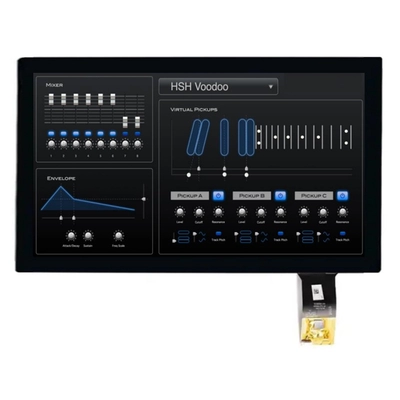

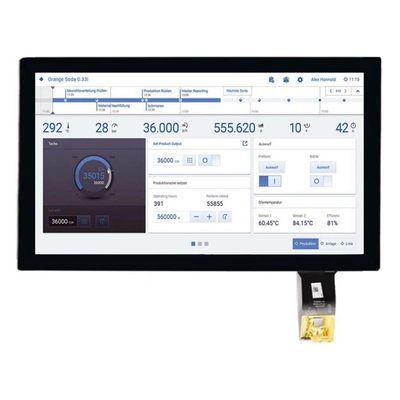

15.6 Inch Industrial TFT Display China Supplier, Multi-Media Optimum 15.6 Inch FHD TFT LCD Display With 1000 Nits Product Image
15.6 Inch Industrial TFT Display China Supplier, Multi-Media Optimum 15.6 Inch FHD TFT LCD Display With 1000 Nits Product Drawing
