Description
15.6-Inch TFT LCD Display with 1000 Nits Brightness and Full-HD Resolution for Outdoor Use
The SFTO1560SMT-7050A3-N PCAP TFT display is a 15.6-inch color active matrix TFT LCD module employing amorphous silicon TFTs (Thin Film Transistors) as active switching devices. Featuring a 15.6-inch diagonally measured active area with Full-HD resolutions (1920 horizontal by 1080 vertical pixel array), each pixel is subdivided into red, green, and blue dots arranged in a vertical stripe. This module can display 16.7 million (6bit+2FRC) colors with a color gamut of 45%. The built-in LED driver handles back-light driving.
Designed for showcasing graphics and texts on a 1920×3×1080 dotspanel with 16.7 million (8bit) colors, the display uses an eDP (Embedded Display Port) Ver1.2 interface and operates with a +3.3VDC supply voltage for TFT-LCD panel driving. The SFTO1560SMT-7050A3-N TFT-LCD panel incorporates color filters for excellent color performance, delivering brighter and clearer pictures, making it ideal for multimedia applications. It offers optimum viewings in all directions and comes without a backlight-driving LED controller. The EDP transfer rate specification is 2.7Gbps/2 lane 8bit.
Key Features:
- Reserve Type
- eDP interface
- High-speed response
- 6-bit (Hi-FRC) color depth, Display 16.7M colors
- Incorporated edge-type (LED) backlight
- Compatible with RGB98% and NTSC45% (NTSC72% is available as well)
- High luminance and contrast ratio, low reflection, and wide viewing angle
- DE (data enable) only
- RoHS and Halogen-free
- TEO 6.0, ES6.0 Compliant
- Gamma Correction
| Keywords: | USB PCAP TFT Display 15.6 Inch |
|---|---|
| Resolution: | 1920*1080 Pixels |
| LCD Size: | 350.76 X 204.96 X 2.9 mm (w/o Touch) |
| LCD With Touch: | 382.4 X 231.3 X 9.25 mm (with Touch) |
| Active Area: | 344.16 X 193.59 mm |
| LCD Interface: | EDP |
| CTP Interface: | USB |
| Touch Screen: | CTP (Capacitive Touch Screen) |
| Surface Luminance: | 300 Cd/m2 – 1000 Cd/m2 |
| Operating Temp.: | -10℃ To +60℃ |
| Storage Temp.: | -20℃ To +60℃ |
| Display Type: | IPS Full Viewing Angles |
| Surface Treatment: | Haze 25%, 3H |
| Contrast Ratio: | 1000 |
| Display Color: | 16.7 M |
| LED Lifetime: | 30,000 Hours |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |

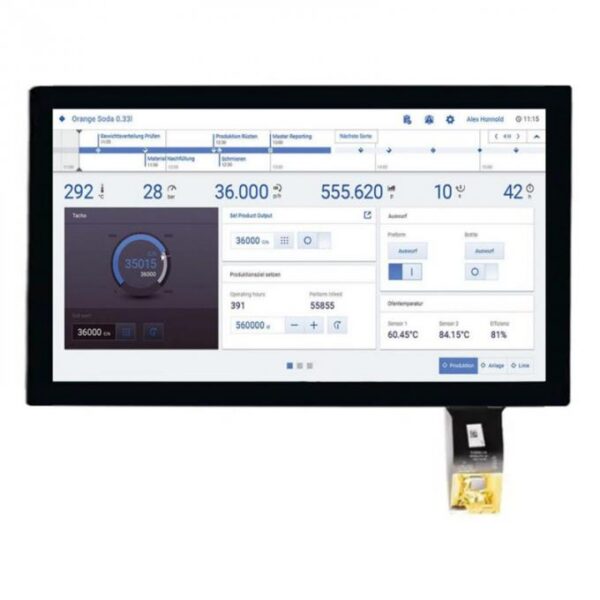

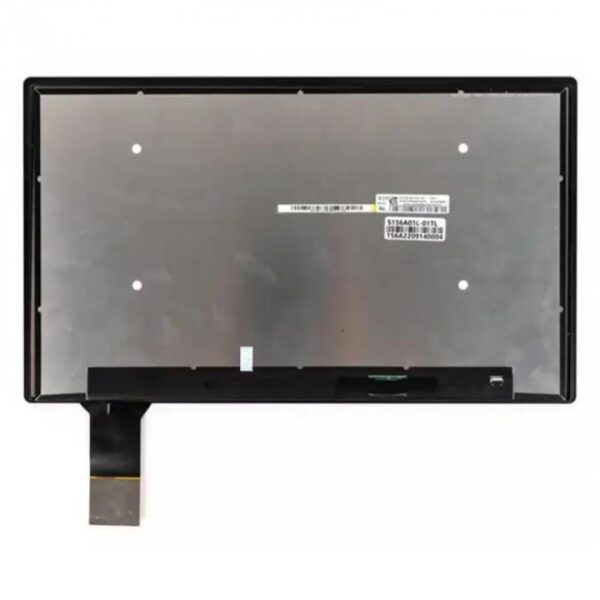

15.6 Inch TFT LCD 1000 Nits Brightness Outdoor Display Product Image
15.6 Inch TFT LCD 1000 Nits Brightness Outdoor Display Product Drawing
Mechanical Specifications
| Parameter | Specification | Unit | Note |
| Display size | 15.6” (Diagonal) | inch | |
| Active area | 344.16(H) ×193.59(V) | mm | |
| Pixel Format | 1920(H) ×1080(V) | pixel | |
| Pixel pitch | 0.17925(H) x 0.17925 (V) | mm | |
| Pixel configuration | R, G, B vertical stripe | ||
| Display mode | Normally black | ||
| Power Consumption | 2.94 | W | |
| Surface treatment of front polarizer | Anti-glare coating: (3H) | ||
Outline Dimensions
|
Parameter |
Min | Typ | Max | Unit | Remark | |
|
Unit outline dimensions |
Width | 350.46 | 350.76 | 351.06 | mm | |
| Height | 204.66 | 204.96 | 205.26 | mm | ||
| Depth | 2.7 | 2.9 | 3.1 | mm | w/o PWB.[Note3-2] | |
| Mass | – | – | – | g | ||
Interface Pin Definition
| Pin No. | Symbol | I/O | Function |
| 1 | NC | – | Reserved for CD |
| 2 | H_GND | P | High Speed round |
| 3 | Lane1_N | I | Complement Signal Link Lane 1 |
| 4 | Lane1_P | I | True Signal Link Lane 1 |
| 5 | H_GND | P | High Speed round |
| 6 | Lane0_N | I | Complement Signal Link Lane 0 |
| 7 | Lane0_P | I | True Signal Link Lane 0 |
| 8 | H_GND | P | High Speed round |
| 9 | AUX_CH_P | I | True Signal Auxiliary Channel |
| 10 | AUX_CH_N | I | Complement Signal Auxiliary Channel |
| 11 | H_GND | P | High Speed round |
| 12 | LCD_VDD | P | LCD logic and driver power(3.3V) |
| 13 | LCD_VDD | P | LCD logic and driver power(3.3V) |
| 14 | NC | I | Reserved for LCD manufacturer’s use |
| 15 | LCD_GND | P | LCD logic and driver ground |
| 16 | LCD_GND | P | LCD logic and driver ground |
| 17 | HPD | O | HPD signal pin |
| 18 | LED-1 | P | Backlight ground |
| 19 | LED-2 | P | Backlight ground |
| 20 | LED-3 | P | Backlight ground |
| 21 | LED-4 | P | Backlight ground |
| 22 | BL_ENABLE | I | Backlight on/off |
| 23 | BL_PWM_DIM | I | System PWM |
| 24 | NC | – | Reserved for LCD manufacturer’s use |
| 25 | NC | – | Reserved for LCD manufacturer’s use |
| 26 | BL_PWR | P | Backlight power |
| 27 | BL_PWR | P | Backlight power |
| 28 | BL_PWR | P | Backlight power |
| 29 | BL_PWR | P | Backlight power |
| 30 | NC | – | Reserved for LCD manufacturer’s use |
Absolute Maximum Ratings
| Parameter | Symbol | Condition | Ratings | Unit | |
| MIN | MAX | ||||
| +3.3V supply voltage | VDD | Ta=25℃ | -0.3 | +4.0 | V |
| Backlight supply voltage | VBL | Ta=25℃ | -0.3 | +26 | V |
| Input voltage(eDP) | VI | Ta=25℃ | -0.3 | +1.5 | V |
| Input voltage(BL) | VBL_I | Ta=25℃ | -0.3 | VDD+0.3 | V |
| Operation temperature | Topa | -10 | +60 | ℃ | |
| Storage temperature | Tstg | -20 | +60 | ℃ | |
