Description
Introducing the BOE DV150X0M-N10: A Cutting-Edge 15-Inch Industrial TFT LCD Display
Get ready to experience unparalleled clarity and vibrant visuals with the DV150X0M-N10, a state-of-the-art color active matrix TFT LCD MDL. Leveraging amorphous silicon TFTs (Thin Film Transistors), this display redefines excellence in visual technology. Featuring a generous 15-inch diagonal measurement, the active area dazzles with XGA resolutions, boasting a pixel-perfect array of 1024 horizontal by 768 vertical pixels.
But the brilliance doesn’t end there. Each pixel on this industrial marvel is meticulously divided into vivid RED, GREEN, and BLUE dots, elegantly arranged in vertical stripes. With a staggering capability to showcase 16.7 million colors, prepare to be immersed in a world of stunning visuals like never before.
Crafted for optimal viewing, the TFT-LCD MDL panel minimizes reflections while enhancing color depth, ensuring every detail pops with lifelike clarity. And for added convenience and versatility, the BOE DV150X0M-N10 comes equipped with a capacitive touch panel, offering both single-touch and multi-touch options to suit your needs.
But that’s not all. With a luminance surface brightness of 350cd/m², this display shines even in brightly lit environments, ensuring visibility is never compromised.
Seeking an even brighter solution for sunlight readability? Look no further than the SFTO1500XC-7121AN15 (1500 cd/m²) and SFTO1500XC-7121AN10 (1000 cd/m²) versions. Contact us today for more information and take your visual experience to new heights.
Characteristics:
- Incorporates LVDS interface with a ratio of 1 pixel per clock cycle.
- Exhibits rapid response times.
- Maintains high-quality image with minimal color shifting.
- Offers a color depth of 6 bits with Frame Rate Control (FRC), enabling the display of 16.7 million colors.
- Provides a wide viewing angle for enhanced visibility.
- Operates in DE (Data Enable) only mode.
- Utilizes ADS technology to ensure superior display quality.
- Complies with RoHS standards.
Product Features:
| Product: | 15 Inch Industrial TFT Display |
| Resolution: | 1024 RGB X 768 |
| Surface Luminance: | 350cd/m2(nits) |
| Interface: | LVDS Interface |
| Pin Number: | 20pins |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Outline Dim.: | 326.5(H) × 253.5(V) × 9.7(T) (mm) |
| Active Area: | 304.128(H) × 228.096(V) (mm) |
| Surface Treatment: | Hard Coating(3H) |
| Haze: | 25% |
| Touch Screen: | With CTP Optional |
| Display Colors: | 16.7 M |
| Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ |
| Back-light: | E-LED Light Bar Type |
| LED Lifetime: | 50,000 Hours |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |
15 Inch Industrial TFT LCD Display LVDS 1024×768 Pixel 350 Nits Product Drawing

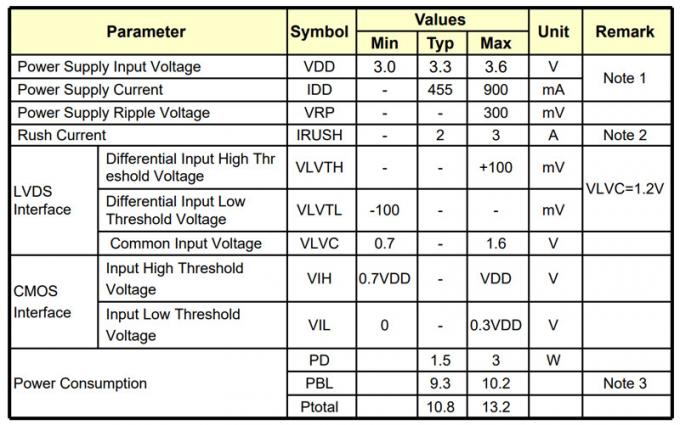

Electrical Specifications

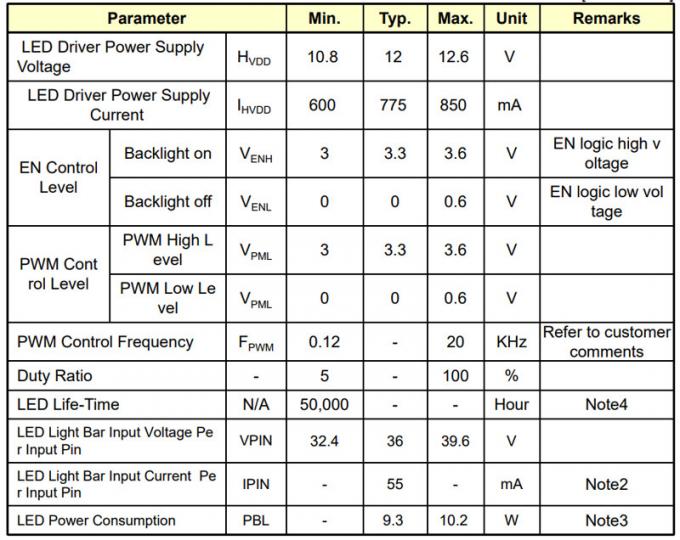

Backlight Unit Specification

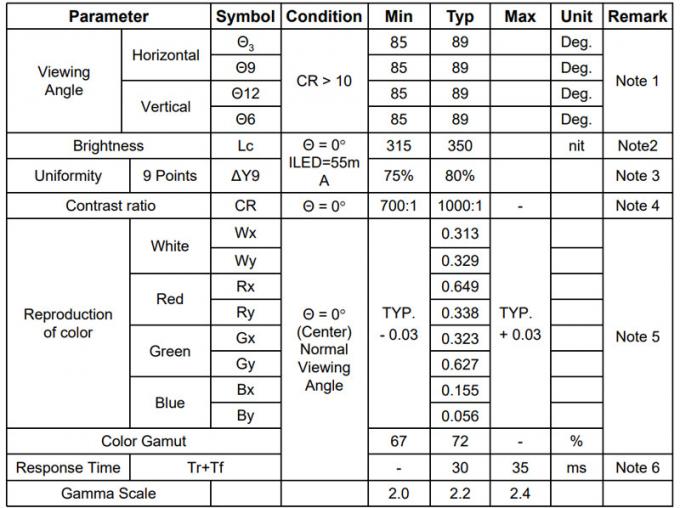

Optical Specifications
Electrical Specifications

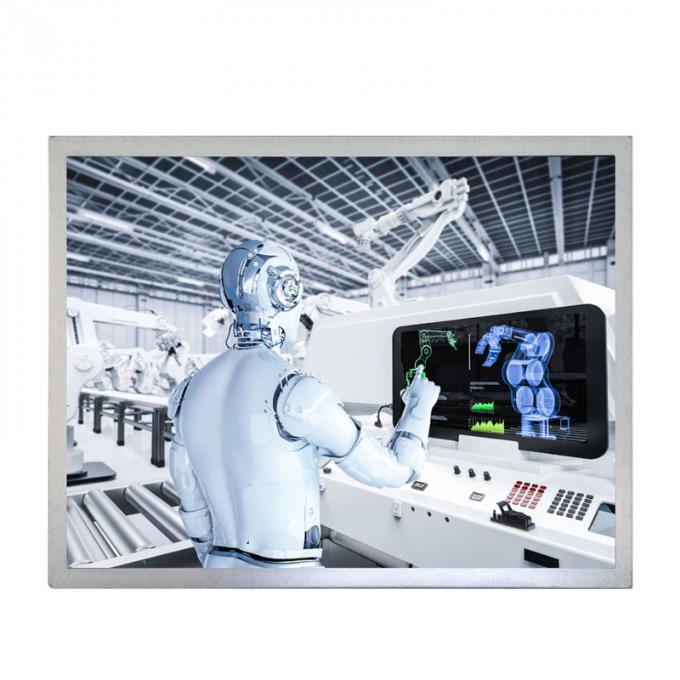

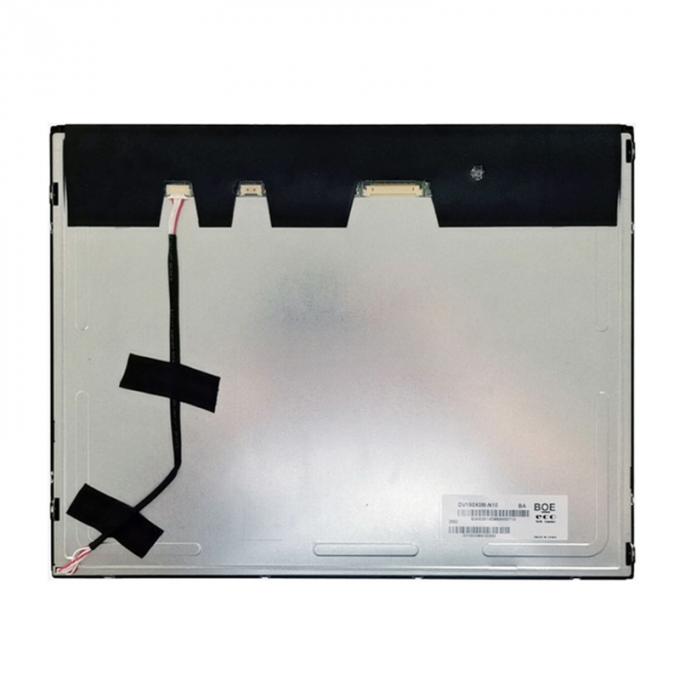

15 Inch Industrial TFT LCD Display LVDS 1024×768 Pixel 350 Nits Product Image

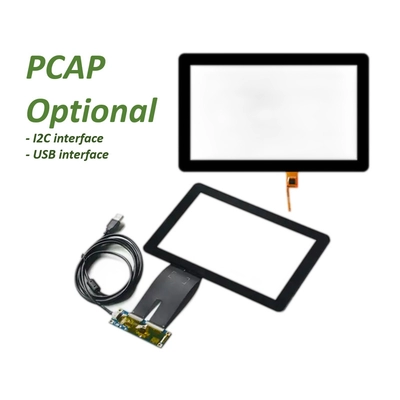

Projected Capacitive (PCAP) Touch Screen
