Description
Yellow Green Graphic LCD 128×64
The ShenZhen Techstar Electronics Incorporated Co., Ltd COG LCD SF12864-70L is a monochrome LCD display module equipped with the ST7567 IC, which supports an SPI interface. This display features outline dimensions of 39.0 x 31.1 x 3.5 mm and a VA size of 36.0 x 23.5 mm. Operating within a temperature range of -10℃ to +60℃, with storage temperatures ranging from -20℃ to +70℃, this LCD COG 128×64 display is particularly suitable for applications requiring compact displays.
Pin Definition:
Pin1, /CS1B, Chip Select , When /CS= “L”, chip is selected
Pin2, /RST, When /RST= “L”, the settings are initialized
Pin3, A0, Select register data when A0= “H”, and instruction when A0= “L”
Pin4, SCK, Serial clock input terminal
Pin5, SDA, Serial data input terminal
Pin6, VDD, Supply voltage for logic circuit +3.3V
Pin7, VSS, Ground
Pin8, V0, LCD driving voltage for common circuits at negative frame.
Pin9, XV0, LCD driving voltage for common circuits at positive frame.
Pin10, VG, LCD driving voltage for segment circuitsQuality Management
Quality Commitment
Our pledge is to consistently deliver high-quality products promptly,
Meeting and exceeding customer expectations through continuous enhancement.
EHS Commitment
We are committed to adhering to all laws and regulations,
Proactively preventing and managing pollution,
Striving to minimize emissions, conserve resources, and promote environmental awareness and improvement.
Implemented Strategies
- We will ensure transparency in our quality policy, fostering employee understanding and commitment through comprehensive training and education.
- Through the adoption of the ‘5S’ management methodology, we will maintain organized and efficient workspaces while providing adequate training for our staff.
- Our comprehensive ISO9001 quality assurance system will cover all aspects affecting product and service quality, integrating them into regulated and procedural management processes.
- While upholding quality standards, we will optimize production costs, including raw material expenses, and enhance production and managerial efficiencies.
| Product: | COG FSTN 160×96 LCD Module |
| Resolution: | 160×96 Graphics |
| LCD Type: | FSTN, Positive, Transflective |
| Optics: | 6:00 O’clock |
| Outline Dim.: | 50.0(L) X 40.0(W) X 4.1(T) mm |
| Driving Method: | 1/96 Duty Cycle, 1/10 Bias |
| Operating Temp: | -10°C To +60°C |
| Pin Number: | 9 Pins |
| Controller: | ST75161 Or Equivalent |
| Interface: | MPU ( Can Be Customized ) |
| Connector: | Plugging ( Customizable ) |
| Compliance: | REACH & RoHS Compliant |
| Operating Voltage: | 3.3V |
| Dot Size: | 0.292(L) X 0.275mm |
| Dot Pitch: | 0.272(L) X 0.255 (W) mm |
| Viewing Area: | 47.0(L) X 30.0(W) mm |
160×96 LCD, Graphic 160×96 MPU Display Drawing

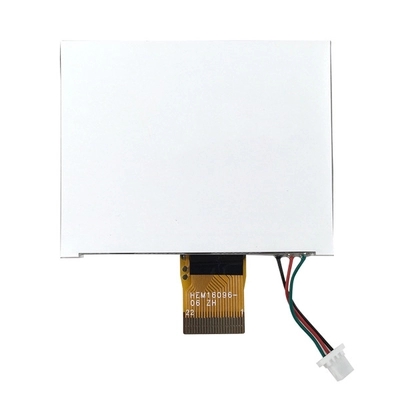

160×96 LCD, Graphic 160×96 MPU Display Real Product Image
