Description
16×2 Character LCD Display Module SF1602HX-A8 – Blue Backlight
This compact LCD module is ideal for projects requiring a simple and reliable text display. Key features include:
- Clear Display:Â 16 characters per row, across two rows, with a bright blue backlight.
- Flexible Interface:Â Choose from 8-bit parallel, SPI, or I2C interfaces for easy integration with various microcontrollers.
- Customizable:Â Select from different character fonts (English/Japanese, European variations, Cyrillic) to fit your project’s language needs.
- Color Options:Â Also available with green, white, yellow-green, amber, or red backlights.
Technical Specifications:
- Controller IC:Â ST7066 or equivalent
- Operating Voltage:Â 5V
- Dimensions:Â (Provide standard dimensions for 16×2 LCD modules)
Order yours today and start displaying project data with clarity!
Product Features
| Product: | 1602 COB Character LCD Display | ||
|---|---|---|---|
| Characters / Columns: | 16×2 | ||
| Optics: | 6 O’clock | ||
| Color: | White On Blue | ||
| Module Size: | 80(W)×36(H)×11.8 Max(T) mm | ||
| Glass: | Negative STN LCD Transmissive | ||
| Controller: | SPLC780D Or Equivalent | ||
| Pin Number: | 16 Pins | ||
| Interfaces: | 8-bit MPU, Option SPI/I2C | ||
| Compliance: | REACH & RoHS Compliant | ||
Mechanical Specifications
| Item | Standard Value | Unit |
| Outline Dimension | 80(L) X36(W) X11.0(T) | mm |
| Viewing Area | 64.5(L) X14.5(Â W) | mm |
| Dot size | 0.54(W) X 0.60(H) | mm |
| Dot pitch | 0.59(W) X 0.65(H) | mm |
| Character size | 2.9(W) X 5.15(H) | mm |
16×2 1602 COB Character LCD Display module LCM Drawing
Absolute Maximum Ratings Â
| Item | Symbol | Condition | Min. | Max. | Unit |
| System Power Supply Voltage | VDD | – | -0.3 | 5.5 | V |
| LCD Driver Supply Voltage | VLCD | – | VDD-12 | VDD-0.3 | V |
| Input Voltage | VIN | – | -0.3 | VDD + 0.3 | V |
| Operating Temperature | TOP | – | -20 | 70 | °C |
| Storage Temperature | TST | – | -30 | 80 | °C |
| Storage Humidity | HD | Ta < 40 °C | 20 | 70 | %RH |
DC Electrical Characteristics
VDD = 5.0V ± 0.2V, GND = 0V, Ta = 25°C
| Item | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Logic Supply Voltage | VDD | – | 3.0 | 5.0 | 5.5 | V |
| LCD Driver Supply Voltage | VLCD | 4.5 | 4.7 | 4.8 | V | |
| Input High Voltage | VIH | – | 0.8VDD | – | VDD | V |
| Input Low Voltage | VIL | – | GND | – | 0.3VDD | V |
| Output High Voltage | VOH | – | 0.7VDD | – | VDD | V |
| Output Low Voltage | VOL | – | GND | – | 0.2VDD | V |
Backlight Characteristics
| Item | Symbol | Conditions | Min. | Typ. | Max. | Unit |
| Forward Voltage | Vf | If=20mA | 4.8 | 5.0 | 5.2 | V |
| Reverse Current | Ir | If=5v | — | uA | ||
| Average Brightness | IV | If=20mA | cd/m2 | |||
| Wavelength
(Without LCD) |
λd | If=20mA | — | — | — | nm |
| Luminous Intensity
(without LCD) |
Lv Sub | If=20mA | cd/m2 | |||
| Uniformity | Δ% | IVMin / IVMax *100% | 75 | – | – | % |
| Color | WHITE | |||||

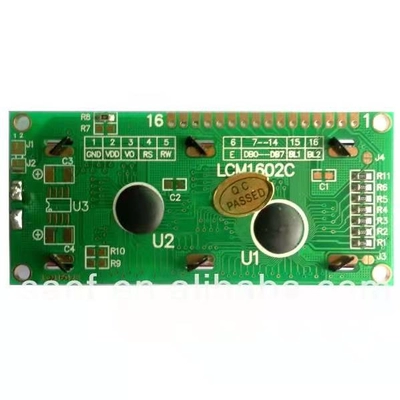

16×2 1602 COB Character LCD Display module LCM Product Image
