2.2 Inch ILI9225G SPI & RGB Touch TFT LCD Screen
The ShenZhen Techstar Electronics Incorporated Co., Ltd SF-TC220I-9752C-T offers a vibrant 2.2-inch diagonal full-color display with a resolution of 176×220 QCIF. This TFT LCD module is equipped with the versatile ILI9225G IC, supporting both 3-line SPI and RGB interfaces. With dimensions of 41.7×56.16×3.35 mm and an active area of 43.56 x 34.85 mm, this module integrates the ILI9225G controller and operates with a logic supply voltage range of 1.6V to 3.3V.
Designed primarily for portrait mode, this 2.2″ TFT LCD module can be adapted for landscape mode with additional technical support available upon request. Featuring a brightness of up to 200 cd/m2 (typical value), it is capable of functioning in temperatures ranging from -20℃ to +70℃, with storage temperatures spanning from -30℃ to +80℃.
The SF-TC220I-9752C-T is equipped with a Resistive Touch Screen (RTP), enhancing its functionality. Additionally, it boasts an anti-glare surface panel and a view direction of 12 o’clock, with gray scale inversion occurring at 6 o’clock. For those not requiring touch functionality, an option without the touch screen is also available under part number SF-TC220I-9752C-N.
| Product: | TFT LCD 2.2 Inch |
| Resolution: | 176×220 |
| Driver IC: | ILI9225G |
| Touch Screen: | Resistive Touch Panel (optional) |
| Cover Glass Dimension: | Customizable |
| Viewing Direction: | 12:00 |
| Interface: | SPI 3 Line RGB (customizable) |
| Pin Number: | 40 Pins (customizable) |
| Connection: | Plugging (customizable) |
| Surface Luminance: | 200 Cd/m2 (nits) (customizable) |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |
2.2 Inch ILI9225G SPI & RGB Touch TFT LCD Screen, 2.2″ QCIF TFT LCD Display Module with Resistive Touch Panel Product Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | LED-A | I | LED Anode |
| 2 | LED-K | I | LED Cathode |
| 3 | LED-K | I | LED Cathode |
| 4 | LED-K | I | LED Cathode |
| 5 | GND | I | Ground |
| 6 | YD | I | Touch Panel Input Signal |
| 7 | YU | I | Touch Panel Input Signal |
| 8 | XR | I | Touch Panel Input Signal |
| 9 | XL | I | Touch Panel Input Signal |
| 10 | GND | I | Ground |
| 11 | CS | I | Input pin for chip selection signal |
| 12 | VSYNC | I | Vertical Synchronizing Signal |
| 13 | HSYNC | I | Horizontal Synchronizing Signal |
| 14 | DOTCLK | I | Clock Signal to Sample each date |
| 15 | ENABLE | I | Display ON/OFF Signal In RGB Mode |
| 16 | RESET | I | LCM Reset input signal |
| 17 | SDI | I | Serial Data Input |
| 18 | SCL | I | Write strobe signal input pin; In SPI mode,it is
Synchronous clock! |
| 19 | GND | I | Ground |
| 20-37 | DB17-DB0 | I/O | Display Data I/O |
| 38 | GND | I | Ground |
| 39 | VCC | I | Power Supply 2.8V Voltage |
| 40 | GND | I | Ground |
| Â | Â |

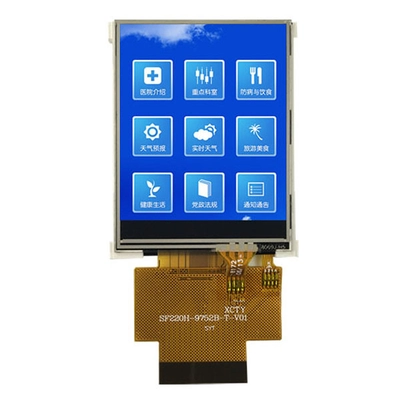

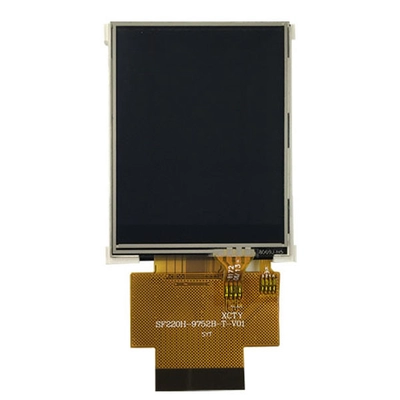

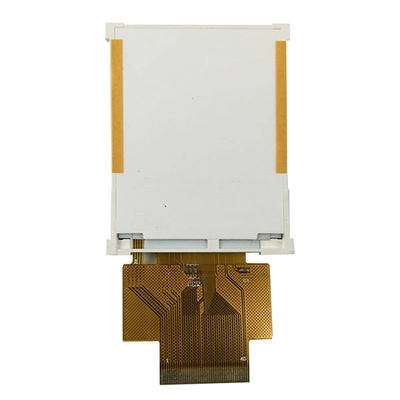

2.2 Inch ILI9225G SPI & RGB Touch TFT LCD Screen, 2.2″ QCIF TFT LCD Display Module with Resistive Touch Panel Product Image
