Description
Unveiling the Techstar SF-TC240H-8269B1-T: A 2.4-inch TFT LCD Display, embracing IPS technology, boasting a vibrant resolution of 240×320 pixels, all complemented by a responsive Resistive Touch interface.
Quick Product Overview:
- Display Dimensions: 2.4″
- Resolution Power: 240×320 QVGA,
- Viewing Angles: ALL
- Sleek Design: Measuring a mere 60.26x42.723. mm
- Engineered Efficiency: Equipped with LCD Driver IC ST7789V
- Seamless Connectivity: MCU LCD Interface Type
- Temperature Resilience: Top -20°C to +70°C; Tst -30°C to +80°C
- Responsive Interaction: Resistive Touch Screen (RTP)
Innovative Product Features:
- Introducing the SF-TC240H-8269B1-T, a cutting-edge TFT LCD module boasting a sleek 2.4-inch diagonal display, presenting visuals in vibrant 240xRGBx320 QVGA resolution for a captivating viewing experience.
- Seamlessly supporting SPI Interface, the SF-TC240H-8269B1-T model showcases a compact module dimension of 60.26×42.72 mm, with an active area spanning 36.72 x 48.96 mm, offering ample screen real estate.
- Empowered with the ST7789V controller, the SF-TC240H-8269B1-T operates within a logic supply voltage range of 2.6V to 3.3V, ensuring optimal performance across various applications.
- Designed to endure extreme conditions, this dynamic module functions flawlessly at temperatures ranging from -20℃ to +70℃, with storage capabilities extending from -30℃ to +80℃, ensuring reliability in diverse environments.
- Embracing versatility, the SF-TC240H-8269B1-T is a portrait-oriented LCD module, delivering a luminance of 300 cd/m2, with provisions for landscape orientation or enhanced luminance available upon request, underscoring our commitment to tailored solutions.
Versatile Applications:
Harnessing the power of innovation, the 2.4-inch TFT LCD module finds its place in an array of applications, including remote controls, medical handheld devices, small measuring instruments, analyzers, smartwatches, and wearable devices, among others, unlocking limitless possibilities.
Features:
| Product: | 2.4 Inch TFT Display |
| Resolution: | 240*320 |
| Viewing Direction: | All viewing angles, IPS |
| Pin Number: | 25 Pins (Customizable) |
| Surface Luminance: | 300 Cd/m2 (Customizable) |
| Driver IC: | ST7789V |
| Touch Screen: | Resistive Touch Panel (Customizable) |
| Cover Glass Dimension: | Customizable |
| Interface: | MCU (Customizable) |
| Connection: | ZIF FPC |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |
2.4-inch TFT LCD Display Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | LED_K | O | LED Cathode |
| 2 | LED_A | O | LED Anode |
| 3 | Â Â Â Â GND | I | Ground |
| 4 |     VCC | I | Power Supply 2.8V Voltage |
| 5 | IOVCC | I | Power Supply 2.8V/1.8V Voltage |
| 6 | FMARK | O | Tear effect output pin |
| 7 | Â Â Â Â /CS | I | Input pin for chip selection signal |
| 8 | RESET | I | LCM Reset input signal |
| 9 | Â Â Â RS | I | Register select signal |
| 10 | /WR | I | Write strobe signal input pin |
| 11 | Â Â Â Â /RD | I | Read strobe signal input pin |
| 12 | Â Â Â Â GND | I | Ground |
| 13-20 | Â DB7-DB0 | I/O | Display Data I/O |
| 21 | Â Â GND | I | Ground |
| 22 | XR | O | Touch Panel Pin |
| 23 | Â Â Â YD | O | Touch Panel Pin |
| 24 | Â Â Â XL | O | Touch Panel Pin |
| 25 | Â Â Â YU | O | Touch Panel Pin |
| Â | Â |
Maximum Absolute Limit
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 1.6~3.3 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
| Â |
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
Backlight Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition |
| Supply Voltage | Vf | 3.0 | 3.2 | 3.4 | V | If=80mA |
| Supply Current | If | – | 80 | – | mA | – |
| Reverse Voltage | Vr | – | – | 5 | V | – |
| Power dissipation | Pd | – | – | mW | – | |
| Luminous Intensity |  – | – | 250 | – | Cd/m2 | If=80mA |
| Uniformity for LCM | – | 80 | – | – | ï¼… | Â Â Â If=80Â mA |
| Â |

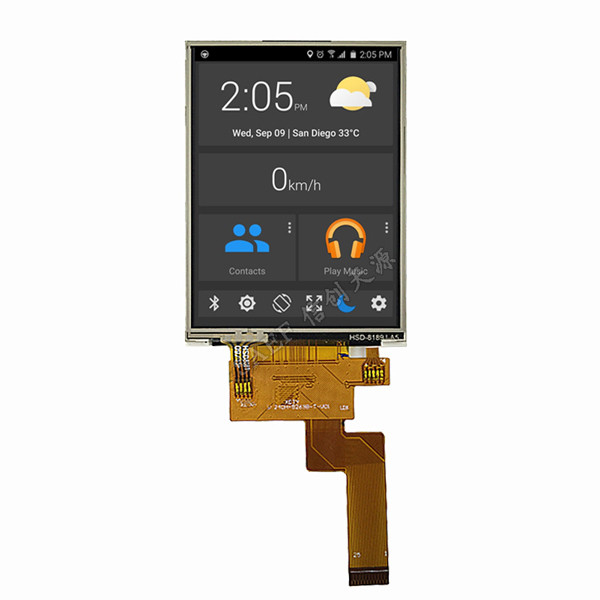

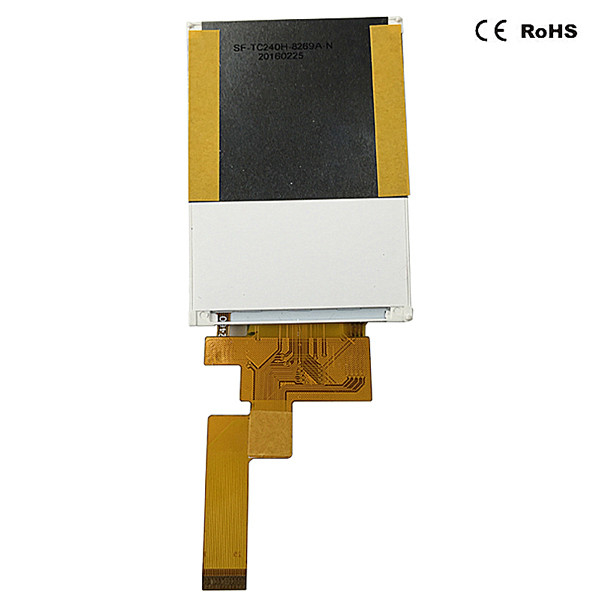

2.4 inch TFT LCD Display Product Image
