Description
Unveiling the 2.42-inch PMOLED Display Module, UG-2864ASWPG01, equipped with SSD1309, supporting both I2C and SPI interfaces along with 6800/8080 compatibility.
Behold the 2.42-inch OLED Display, a visual marvel with a resolution of 128×64.
ShenZhen Techstar Electronics Incorporated Co., Ltd proudly presents the UG-2864ASWPG01, a 2.42-inch OLED display boasting a COG OLED structure and a pixel arrangement of 128×64. Powered by the SSD1309 IC, this display communicates seamlessly through 6800, 8080, SPI, and I2C interfaces. These OLED COG modules redefine portability, being ultra-thin, lightweight, and energy-efficient—perfect for handheld instruments, meters, smart grids, IoT applications, and beyond.
Operating smoothly in temperatures ranging from -40℃ to +70℃, with storage capabilities spanning from -40℃ to +85℃, this OLED module guarantees resilience.
Product Features
| Product: | 2.42 Inch OLED |
|---|---|
| Resolution: | 128 X 64 Dots Resolution |
| Glass Type: | OLED (Organic Light Emitting Diode) |
| Optics: | All Viewing Angles (80/80/80/80) |
| Interface: | I2C, SPI, 6800, 8080 Optional |
| Outline Dim.: | 60.50 × 73.00 × 2.00 mm (including Polarizer) |
| Active Area: | 55.01 × 27.49 mm |
| Pixel Pitch: | 0.43 × 0.43 mm |
| Operating Temp: | -40°C To +70°C |
| Storage Temp.: | -40°C To +85°C |
| Pin Number: | 24 Pins |
| Controller: | SSD1309 Or Equivalent |
| Drive Mode: | 1/64 Duty Cycle |
| Connector: | COG+FPC |
| Contrast Ratio: | 2000:1 (Dark Room Contrast) |
| Compliance: | REACH & RoHS Compliant |
2.42 inch PMOLED Display Module With SSD1309 Driver IC Product Drawing

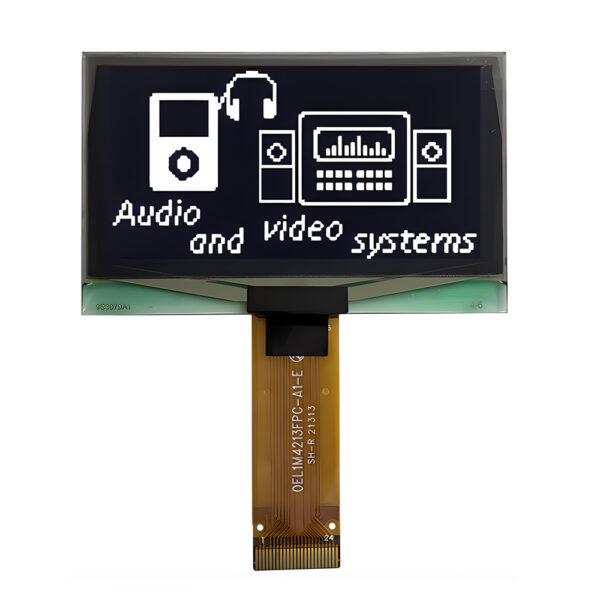

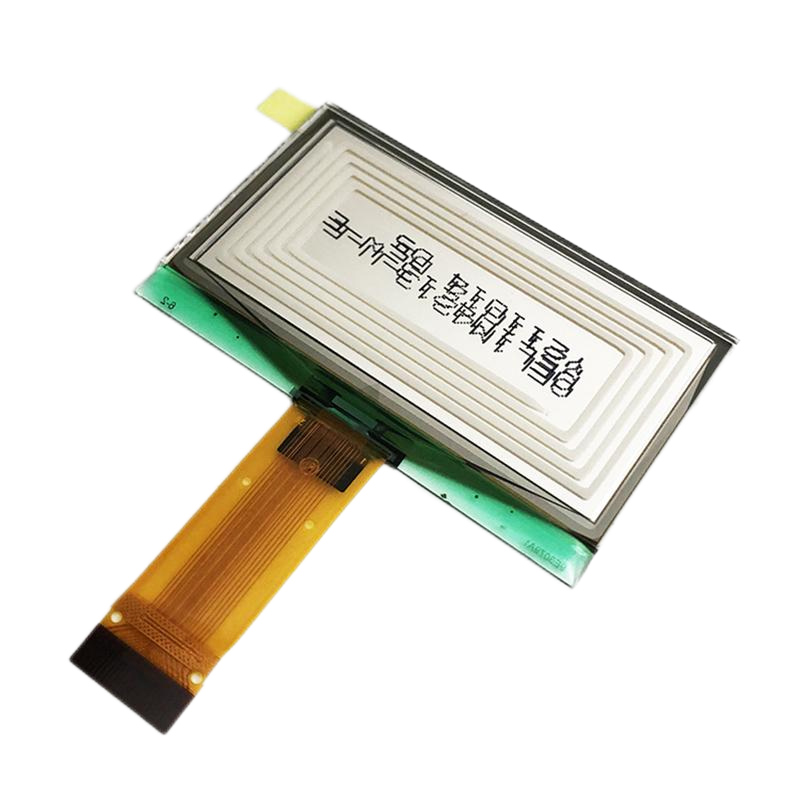

2.42 inch PMOLED Display Module With SSD1309 Driver IC Product Image
