Unveiling the Cutting-Edge: 2.8 Inch 256×64 OLED Display Module with SPI 6800/8080 Interface, 16 Shades of Grey, and a Vibrant Yellow and Blue Font
Experience the pinnacle of display technology with our OLED 2.8-inch wonder – the SFOM280YZ16-25664WB-01. Harnessing the power of Organic Light-Emitting Diode (OLED), this revolutionary technology promises brighter, clearer images coupled with unparalleled responsiveness. Embrace a world where complexity meets simplicity, and every pixel tells a vivid story.
Dive into the Specifications: This OLED module stands at the forefront of innovation, featuring a 256 x 64 dots individual mono-color display. Its lightweight, compact design ensures efficiency without compromising power. Choose from different interfaces, with default options of 3 and 4 lines SPI, and additional choices including 6800 and 8080 interfaces. The advantage? A seamless integration into your applications, thanks to the inclusion of a PCB board.
SFOM280YZ16-25664WB-01 Unveiled: Behold the dot matrix 256×64 COF graphic type passive matrix OLED display module, encapsulated in a 2.8” diagonal active area, with overall dimensions of 97 x 32.5 mm. Housing the potent IC SSD1322U, this display boasts an impressive high contrast ratio of 20,000:1. The logic supply voltage, ranging from 2.8V to 3.3V, ensures optimal performance, with a typical value pegged at 3V.
A Spectrum of Possibilities: With a spectrum of emitting colors including yellow and sky blue, this OLED display module stands out. Elevate applications across diverse domains, from medical devices and POS systems to home appliances and industrial instruments. Unleash its potential in automation, audio/visual display systems, personal care appliances, household goods, and even in automobile displays. Dynamic information displays find a perfect canvas in this technological masterpiece. Embrace innovation; embrace the future.
| Product: | 2.8″ Inch Graphic OLED Screen |
|---|---|
| Resolution: | 256×64 Pixels |
| Display Mode: | Passive Matrix |
| Interface: | 3/4 SPI, 6800 8080 Interface |
| Optics: | All Viewing Angles |
| Outline Dim.: | 97.0(L) X 32.5(W) X 6.4(T) mm |
| Active Area: | 69.1(L) X 17.26(W) mm |
| Pixel Pitch: | 0.27 X 0.27 mm |
| Driving Method: | 1/64 Duty Cycle |
| Operating Temp: | -40°C To +85°C |
| Storage Temp.: | -45°C To +90°C |
| Driver IC: | COF SSD1322 |
| Supply Voltage: | 3V |
| Grey Scale: | 16 Grey Scale |
| Pin Number: | 7 Header Pins, 4 Pins Optional |
| Compliance: | REACH & RoHS Compliant |

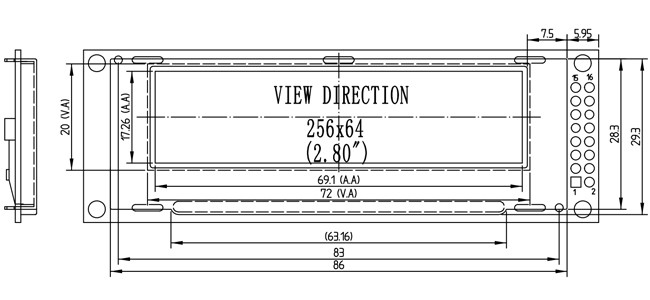

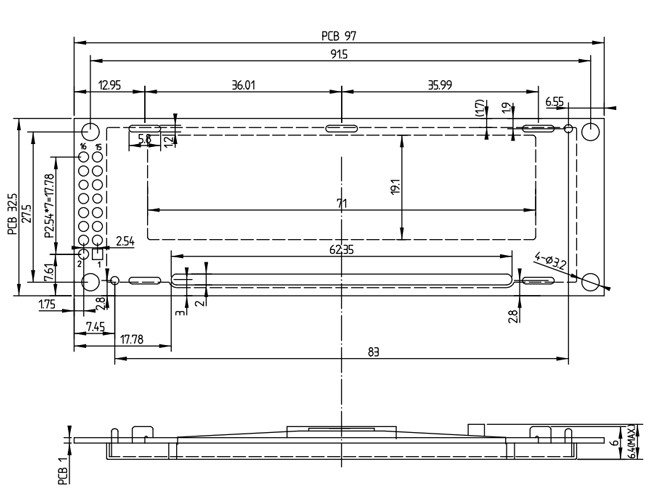

OLED 2.8 inch 256×64 Display, Grey Scale OLED 2.8 inch Product Drawing

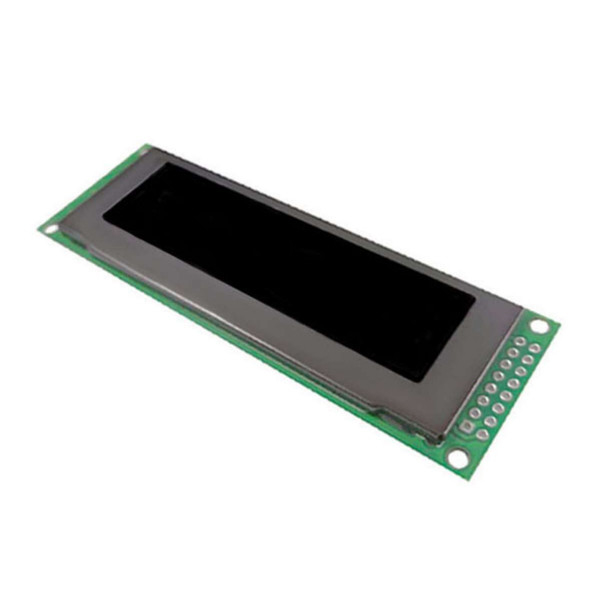

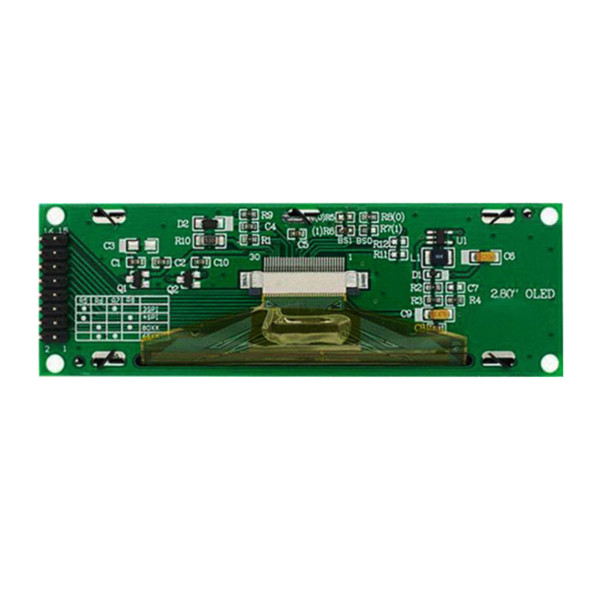

OLED 2.8 inch 256×64 Display, Grey Scale OLED 2.8 inch Product Image
