2.8 inch 480×480 Round TFT LCD Display Module 40pin ST7701S SPI RGB Interface LCD Display

2.8 inch Round TFT LCD Display – High-Resolution and Versatile

Product Description

The SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD SFTO280HD-7069A-N is a compact and high-quality 2.8-inch round TFT LCD display.  With its IPS technology, it delivers exceptional viewing angles and vibrant colors. The display’s 480×480 pixel resolution provides crisp and detailed images.

Key Specifications

• Display Type: IPS TFT LCD (superior viewing angles and color)
• Outline Dimension: 73(W) x 77.59(H) x 2.3(T) mm
• Resolution: 480 x 480 pixels
• Logic Power Supply (VDD): 1.6 ~ 3.3 V (typical 2.8 V)
• Input Voltage (Vin): VDD + 0.3 V

Important Notes

• Absolute Maximum Ratings: These are limits beyond which the display module may be damaged. Do not exceed them during operation.
• Background Color: The background color may shift slightly with changes in ambient temperature. This is normal and reversible.
• Environmental Limits:
  • For temperatures up to 70°C, the maximum relative humidity is 75%.
  • If the temperature exceeds 70°C, ensure the absolute humidity remains lower than the humidity of 75%RH at 70°C.
  • Storage or operation at -30°C should not exceed 48 hours.
  • Storage or operation at 80°C should not exceed 120 hours.

Let us know if you’d like more information or would like help integrating this display into your project!

2.8 inch 480×480 Round TFT LCD SPI&RGB Product Drawing

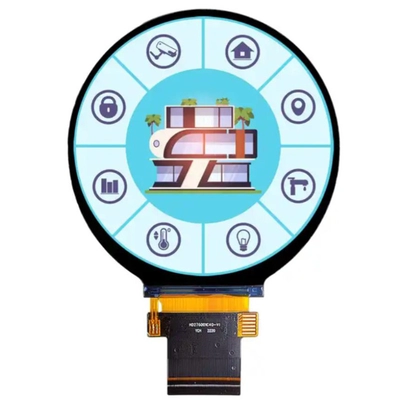

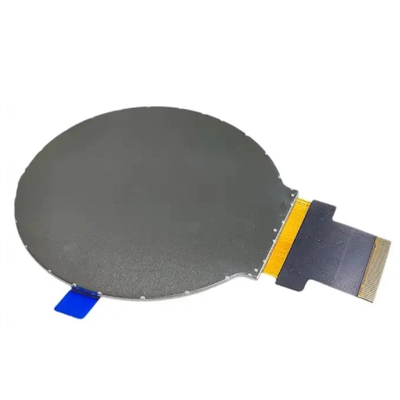

2.8 inch 480×480 Round TFT LCD SPI&RGB Product Image

With CTP Product Image as below

Applications
