2.8-Inch TFT LCD Module: A 240×320 QVGA IPS Display
Meet the SF-TC280H-8971A-N, a TFT LCD module featuring a 2.8-inch diagonal size with a resolution of 240xRGBx320, offering a vibrant full-color display. This versatile module supports RGB/SPI/MCU Interface, providing seamless integration options. With dimensions of 50.0 x 69.2 mm and an active area size of 43.2 x 57.6 mm, the SF-TC280H-8971A-N boasts a compact yet functional design.
Equipped with the ST7789V controller on module, the SF-TC280H-8971A-N operates within a logic supply voltage range of 2.4V to 3.3V, ensuring reliable performance. It is capable of functioning in temperatures ranging from -20℃ to +70℃, with storage temperatures extending from -30℃ to +80℃.
The SF-TC280H-8971A-N is designed in portrait mode, delivering a luminance of 300cd/m2 for optimal viewing. For those interested in landscape mode or seeking increased luminance, custom technical support is available upon request.
Product Quick Overview:
- LCD Size: 2.8” TFT
- Resolution: 240×320
- Viewing Angle: Free (80/80/80/80)
- Outline Dimension: 50.069.22.3
- Driver IC: ST7789V
- Interface Type: RGB/SPI/MCU
- Touch Panel: With or Without Resistive Touch Panel Optional
- Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
Key Product Advantages:
- IPS full viewing angle (80/80/80/80) ensures excellent visibility from various angles, suitable for diverse applications.
- Outstanding display performance including background color, luminance, viewing angle, and intensity.
- Wide temperature range of -20℃ to +70℃, ideal for industrial applications requiring high-quality displays.
- Flexibility to include or exclude resistive touch screens, with support for customized capacitive touch panels and customizable FPC.
- Competitive pricing with uncompromised quality within the LCD industry.
- Easy installation and maintenance for hassle-free integration.
Applications:
The 2.8″ TFT LCD Module is well-suited for a variety of applications including signal analyzers, benchtop laboratory equipment, security systems, home automation, mini audio players, baby monitors, and handheld devices.
Product Features
| Product: | 2.8″ Inch TFT |
|---|---|
| Touch Screen: | With/Without Resistive Touch Screen |
| Resolution: | 240×320 QVGA |
| Viewing Direction: | Free (80/80/80/80) |
| Interface: | RGB/SPI/MCU |
| Pin Number: | 40 Pins |
| Connection: | FPC Connector Type |
| Surface Luminance: | 300 Cd/m2 |
| Operating Temp.: | -20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant |
2.8 inch TFT LCD module, 240×320 QVGA IPS 2.8″ 240×320 Pixels Product Drawing
Interface Pin Definition

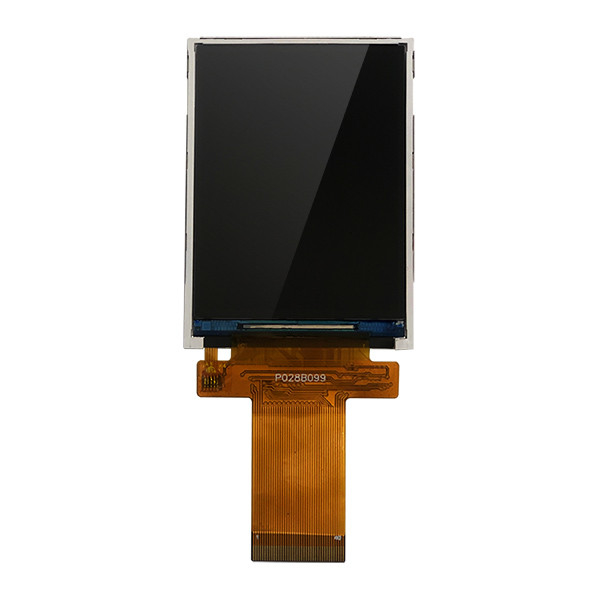

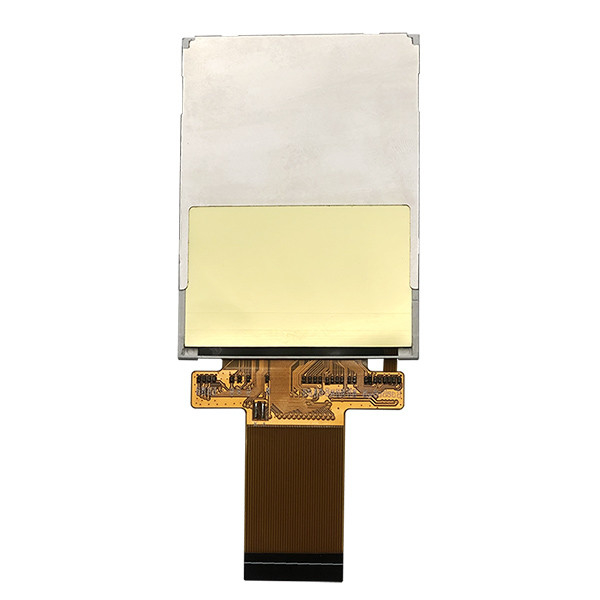

2.8 inch TFT LCD module, 240×320 QVGA IPS 2.8″ 240×320 Pixels Product Image
