Unveiling the Innovation: Introducing the 2-Inch TFT IPS LCD Screen with 480×360 Horizontal Pixels and MIPI Interface
Witness the breakthrough technology embodied in ShenZhen Techstar Electronics Incorporated Co., Ltd  Technology’s latest marvel, the SFTO200HC-7137AN. It transcends conventional LCD modules with its 2-inch diagonal expanse and a remarkable resolution of 480×360 pixels. Embracing innovation, this IPS TFT LCD display boasts the advanced ST7701S integrated circuit, offering seamless connectivity through the versatile MIPI interface, with an optional RGB interface for added flexibility.
Powering this cutting-edge display is a voltage spectrum spanning from 2.6V to 3.3V, with a typical value resting at 2.8V. Engage in immersive viewing experiences with its IPS viewing direction, ensuring a panoramic vista from any angle.
Breaking the barriers of traditional displays, the SFTO200HC-7137AN ignites brilliance with a luminosity of 350 nits in horizontal mode, extendable up to an astonishing 1000 nits to cater to bespoke customer demands. Enduring the rigors of diverse environments, this resilient 2-inch IPS TFT LCD thrives in temperatures ranging from a chilling -20 ℃ to a scorching +70 ℃, with storage resilience from -30 ℃ to +80 ℃.
From industrial equipment to home automation, from security systems to garden irrigation, embrace a myriad of applications with this versatile solution. Elevate your devices with the epitome of performance and functionality embodied in the SFTO200HC-7137AN, setting a new standard in display technology.
Feature:
| Product: | 2 Inch TFT LCD Display |
| Resolution: | 480×360 Dots |
| Interface: | MIPI (RGB Optional) |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| LCD Controller: | ST7701S |
| Surface Luminance: | 350 Cd/m2(nits) |
| Touch Screen: | Without |
| Cover Glass Dimension: | Customizable |
| Operating Temp: | -20°C To +70°C |
| Connection: | ZIF FPC |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |

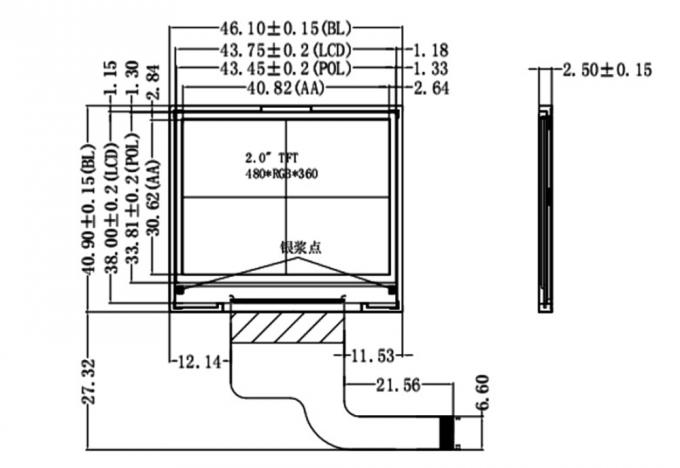

LCD Screen Display 2 Inch TFT IPS 480×360 Resolution Product Drawing

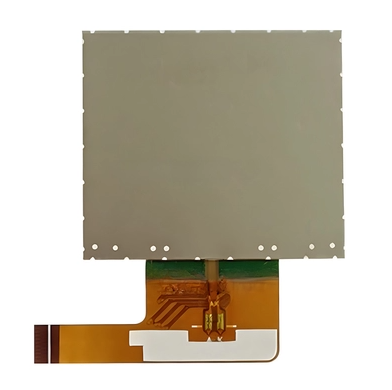

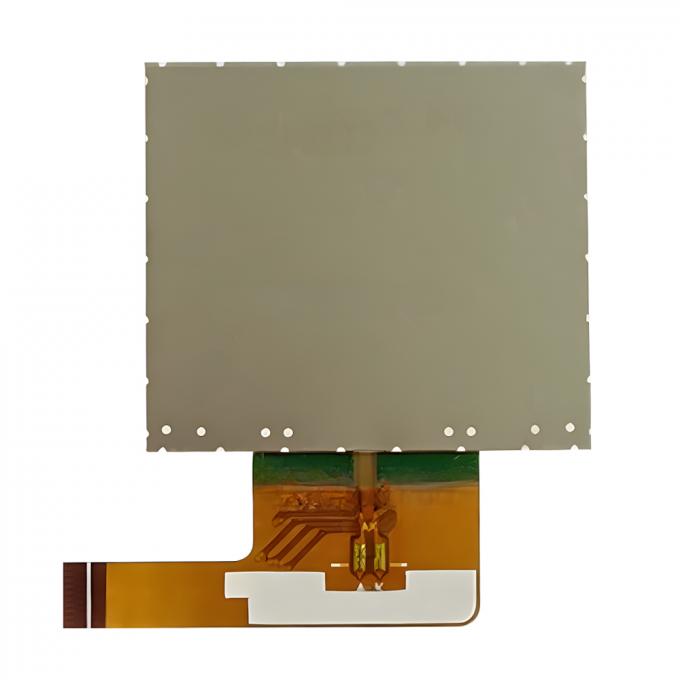

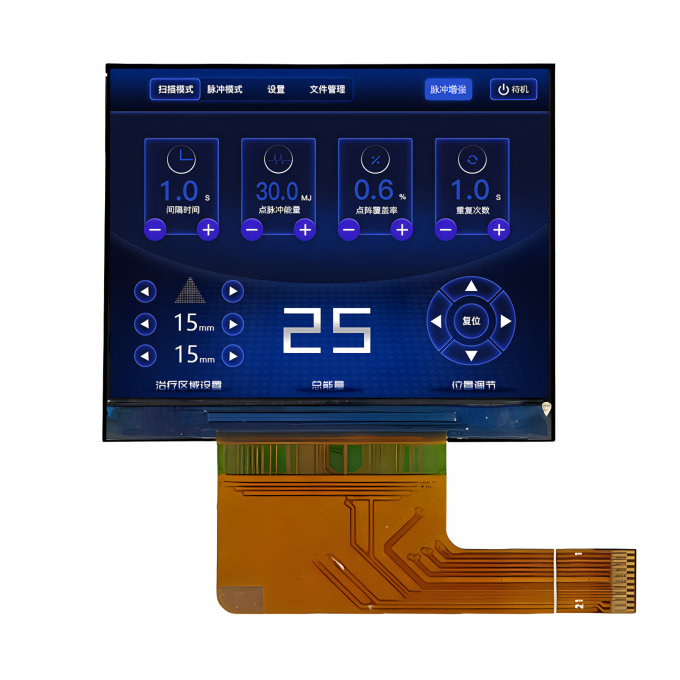

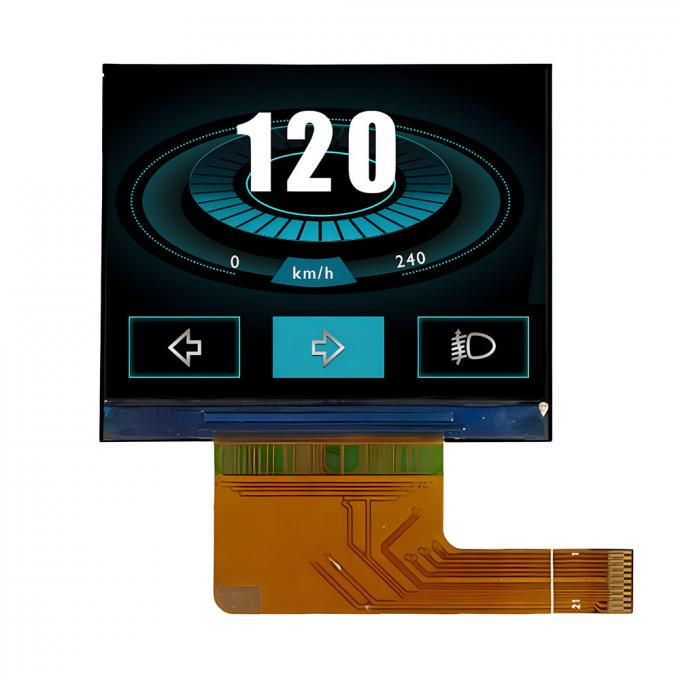

LCD Screen Display 2 Inch TFT IPS 480×360 Resolution Product Image

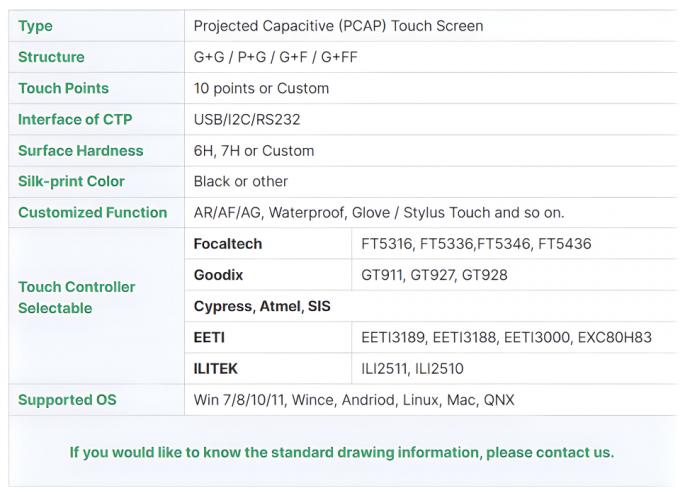

Projected Capacitive (PCAP) Touch Screen
Projected capacitive (PCAP) touch technology provides fast and responsive response and professional-grade reliability. Techstar’s projected capacitive touchscreens are designed for rigorous industrial, medical, and automotive applications. We can also combine PCAP touchscreens with liquid crystal displays (LCDs), an integrated embedded solution that helps streamline supply chains and assembly.

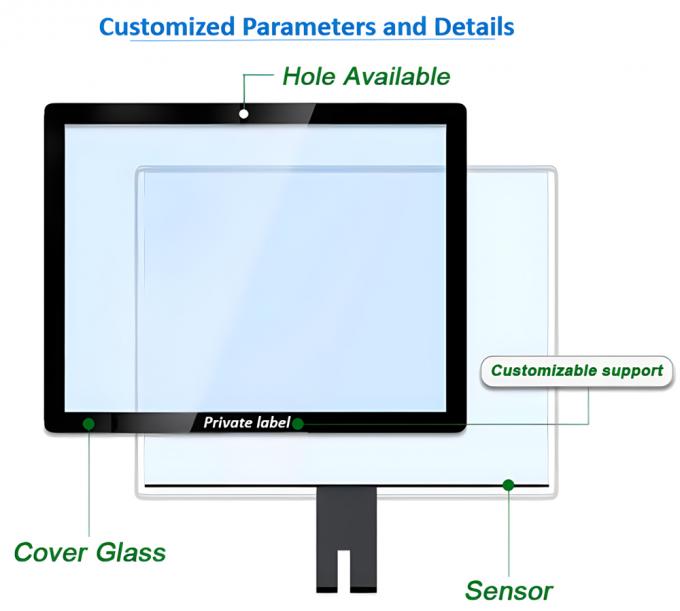

Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA

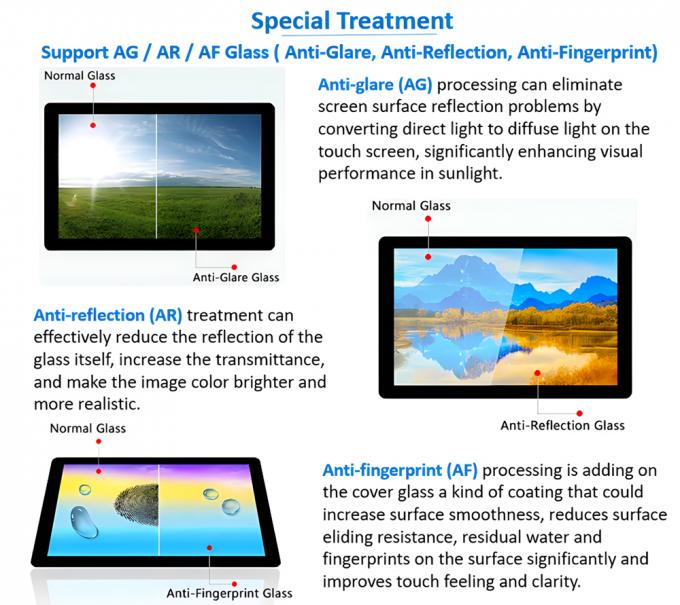

4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
