Unveiling the Cutting-Edge: 2” OLED Display with 128×32 Resolution
Experience the forefront of technology with our Organic Light-Emitting Diode (OLED), setting a new standard for brilliance and responsiveness. Introducing the SFOS200TW-12832W-01 OLED display, a 2-inch marvel boasting 128 x 32 dots of individual mono color. Unlike conventional displays, this OLED module combines lightweight design, low power consumption, and compact dimensions, offering versatile interface options including default SPI, Parallel, and I2C.
Measuring a 2” diagonal active area with a module dimension of 55.60(W) x 21.80(H) mm, and an active area dimension of 50.54 (W) x 12.62 (H) mm, this OLED display ensures a visually immersive experience. Equipped with the advanced IC SSD1309Z, it achieves an impressive high contrast ratio of 20,000:1. The logic supply voltage ranges from 1.65V to 3.3V, with a typical value of 3V, making it a versatile choice for various applications.
This 2-inch OLED display finds its utility across diverse sectors, including medical devices, POS systems, white goods, home applications, industrial instruments, automation, audio/visual display systems, personal care appliances, household goods, automobile displays, and dynamic information displays. Elevate your visual experience with our OLED technology, where innovation meets clarity.
Product Features:
| Product: | 2″ Inch Passive OLED 128×32 |
|---|---|
| Resolution: | 128×32 Pixels Resolution |
| Display Mode: | Passive Matrix |
| Interface: | Parallel, SPI, IIC Optional |
| Display Color: | White |
| Optics: | All Viewing Angles |
| Outline Dim.: | 55.60(W) X 21.80(H) X 1.45 (T) Mm |
| Active Area: | 50.54 (W) X 12.62 (H) Mm |
| Pixel Pitch: | 0.395 (W) X 0.395(H) |
| Driving Method: | 1/32 Duty Cycle |
| Operating Temp: | -20°C To +70°C |
| Storage Temp.: | -30°C To +80°C |
| Driver IC: | COG SSD1309Z |
| Supply Voltage: | 3V |
| Pin Number: | 31 Pins |
| Compliance: | REACH & RoHS Compliant |

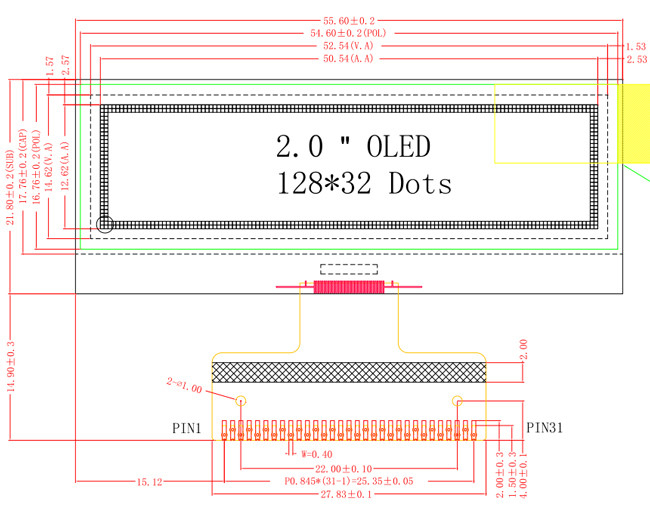

OLED 2” inch Display, 128×32 OLED Display Description Drawing
Interface Pin Definition
Pin1, NC, No connection.
Pin2, VCC, Power source for voltage driven by the panel.
Pin3, VCOMH, COM voltage level deselected for the signal.
Pin4, IREF, The segment output current reference pin is this pin.
Pin13, RD#, operates as the Enable (E) signal when interfacing with a 6800-series microprocessor. Read/write operations kick off when pulling this pin HIGH and selecting the chip. For connection to an 8080-microprocessor, this pin receives the Read (RD#) signal, initiating read operations when pulled LOW and the chip is selected. In serial interface mode, this pin must be linked to VSS.
Pin14, WR#, serves as the read/write control input pin for MCU interface. When interfacing with a 6800-series microprocessor, it acts as the Read/Write (R/W#) selection input, conducting read mode when pulled HIGH and write mode when LOW. In 8080 interface mode, this pin functions as the Write (WR#) input. Data write operations begin when pulling this pin LOW and selecting the chip. In serial interface mode, this pin should connect to VSS.
Pin15, D/C#, is the Data/Command data control pin. Low denotes command, while high signifies data.
Pin16, RES#, functions as the reset signal input. When the pin is LOW, chip initialization occurs. It’s crucial to keep this pin HIGH (connected to VDD) during normal operation.
Pin17, CS#, acts as the chip select pin, with an active low configuration.
Pin18, NC, signifies no connection.
Pin19, BS2, represents MCU bus interface selection pins. Refer to the accompanying table for detailed settings.
Pin20, BS1, also denotes MCU bus interface selection pins. Refer to the accompanying table for detailed settings.
Pin21, VDD, serves as the logic voltage supply for the IC.
Pin22~Pin29, NC, indicate no connection.
Pin30, VSS, stands for Ground.
Pin31, NC, represents no connection.

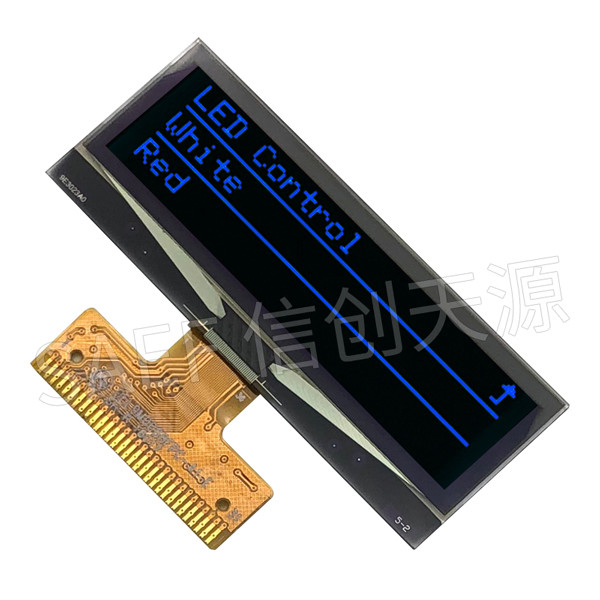

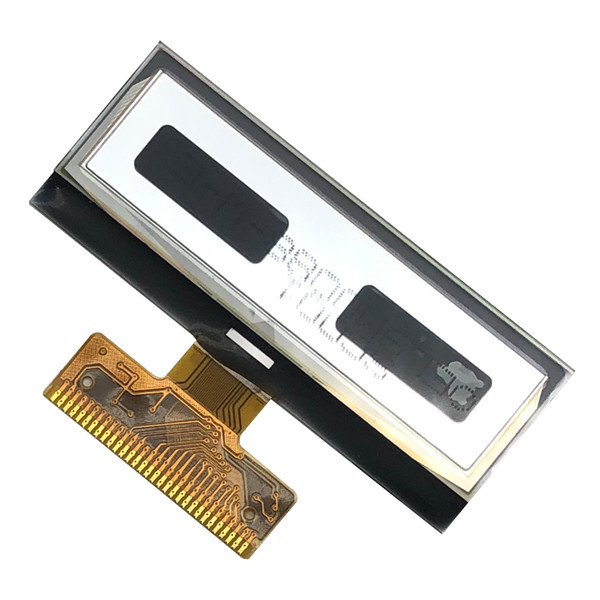

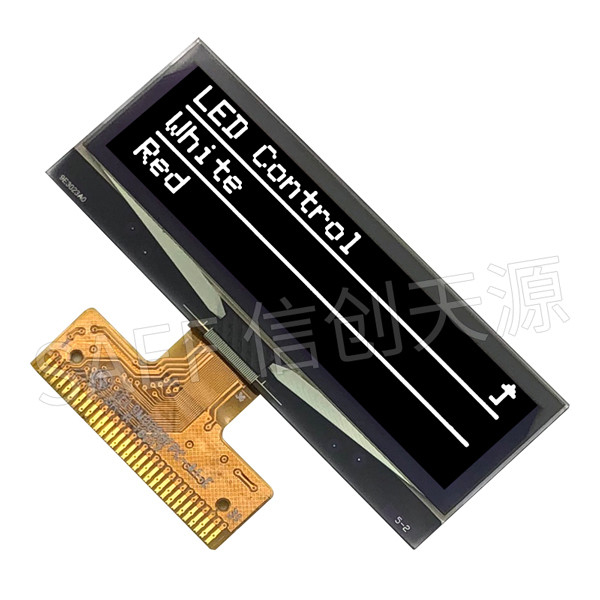

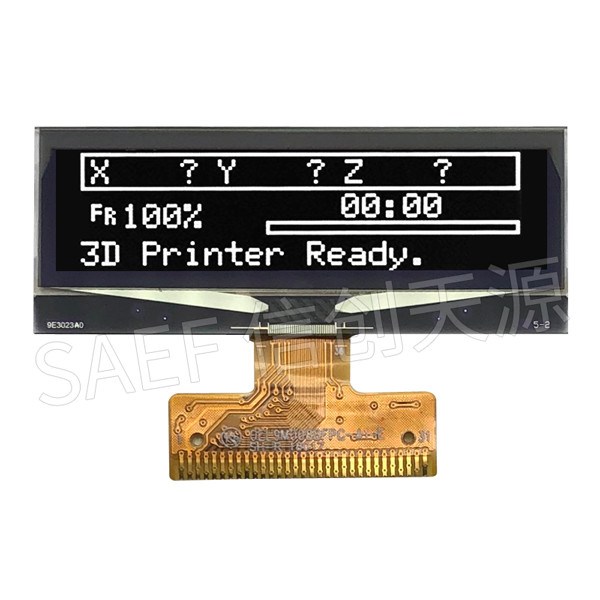

OLED 2 inch Display, 128×32 OLED Display Real Product Image
