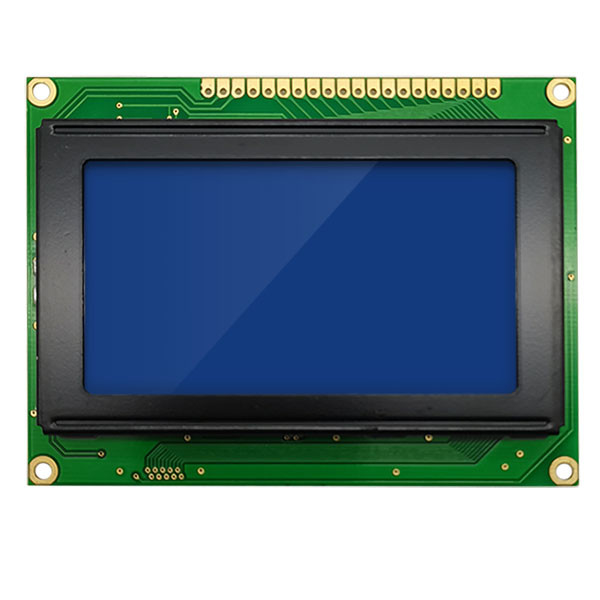

Monochrome Graphic COB 128X64 Dots Matrix LCM 20 Pin MPU STN Negative 128×64 COB Graphic LCM
The SF-HSM12864J1B by ShenZhen Techstar Electronics Incorporated Co., Ltd presents a monochrome graphic LCD module with a resolution of 128×64. Equipped with the NT7108 controller or its equivalent IC, this model facilitates a 6800 8-bit parallel interface. Operating on a 5V power supply, the SF-HSM12864J1B Graphic Display LCD 128×64 module offers versatility.
Available with or without backlighting, the SF-HSM12864J1B comes in various LCD panel colors, such as gray, yellow/green, and blue. With a temperature operating range spanning from -20℃ to +70℃ and a storage range from -30℃ to +80℃, this graphic LCD display ensures reliability in diverse environments.
Techstar Display is a professional Character and Graphic LCD manufacturer. Techstar’s graphic LCD displays (liquid crystal display) are available in dot matrix format of graphic resolution including 122×32, 128×64, 128×128, 144×32, 160×128, 160×160, 160×32, 160×80, 192×64, 192×128, 240×64, 320×240 and etc. The sizes are including 2 inch, 3 inch, 4 inch, 5 inch, 6 inch and etc. Techstar Graphic LCD modules are including different options of polarizer in reflective, transmissive or transflective types. Our LED backlights are available in various colors including yellow/green, white, blue, red, amber and RGB.
We have an extensive range of LCD graphic displays with various backlight and LCD type combinations. Techstar’s graphic LCD can be used on instrument and industry machinery equipment as well as electrical home appliances, consumer electronics including white goods, POS system, home applications, industrial instrument, automation, audio/visual display systems, and medical devices.
Product Features:
| Product: | Monochrome Graphic Display LCD 128×64 |
| Resolution: | 128×64 Dot Matrix |
| Optics: | 6 O’clock |
| Color: | Blue On White |
| Glass: | STN, NEGATIVE(BLUE), TRANSMISSIVE |
| Module Size: | 93(L) * 70(W) * 13.5(T) Max Mm |
| Viewing Area: | 70.7(L) * 38.8(W) |
| Controller: | 0107,0108 |
| Pin Number: | 20 Pins |
| Interfaces: | 8-bit MPU Interface |
| Operating Temp: | -20°C To +70°C |
| Driving Voltage: | 5 V |
| Life Time: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |

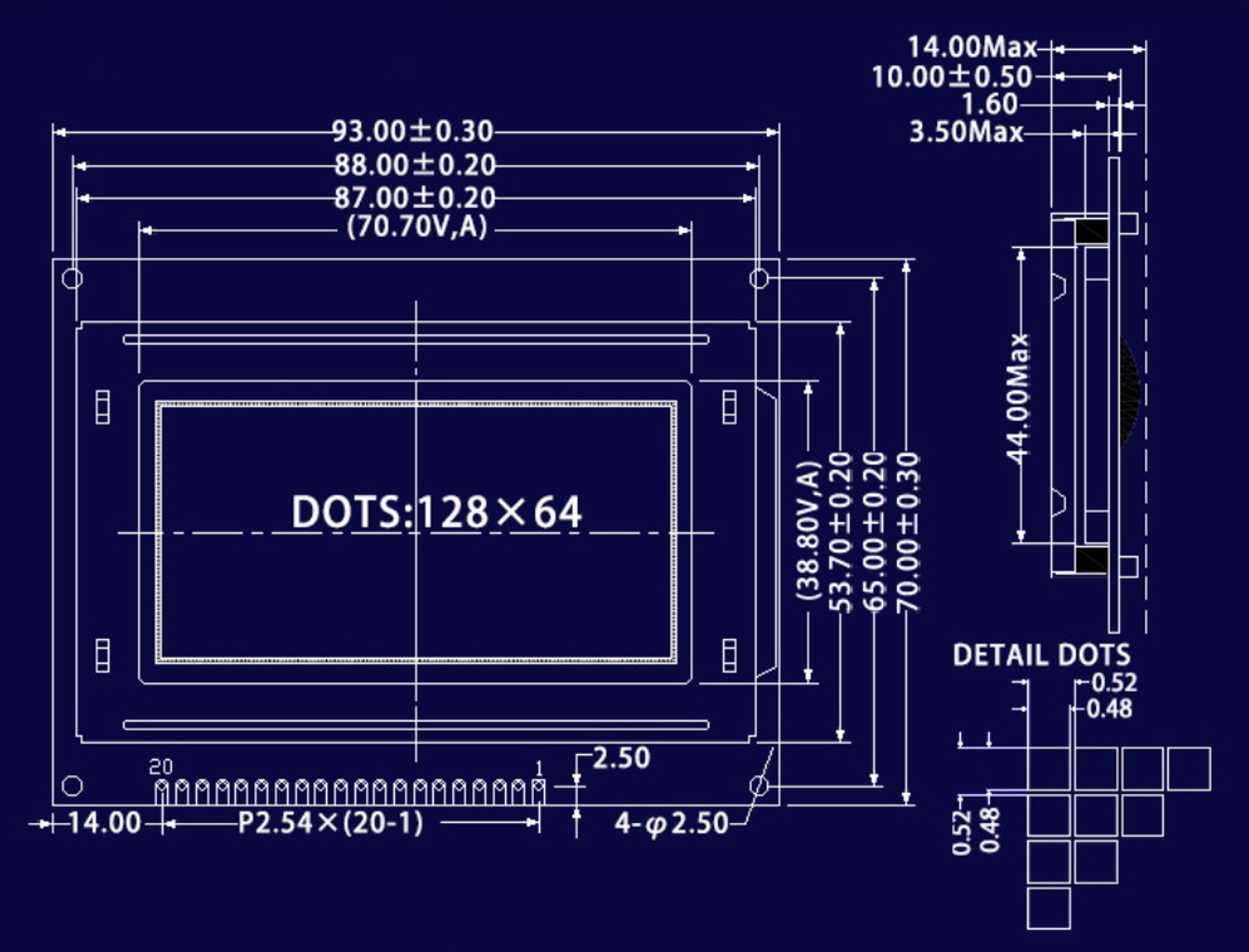

128×64 COB Graphic LCM Product Drawing
Interface Pin Definition
| No. | Symbol | Function |
| 1 | GND | Ground (0V) |
| 2 | VDD | Supply Voltage for Logic (+5V ) |
| 3 | VO | Contrast Adjustment |
| 4 | RS | Data/Instruction Select |
| 5 | R/W | Read/Write Select |
| 6 | E | Enable Signal |
| 7–14 | DB0—DB7 | Data Bus |
| 15 | CS1 | Chip Select active “H” |
| 16 | CS2 | Chip Select active “H” |
| 17 | /REST | Reset signal , active “L” |
| 18 | VOUT | Output voltage for LCD driving |
| 19 | LED_A | LED Power Supply + (5V) |
| 20 | LED_K | LED Power Supply -(0V) |
Reliability Test
| Item | Condition | Time (hrs) | Assessment |
| High temp. Storage | 80°C | 120 |
No abnormalities in functions and appearance |
| High temp. Operating | 70°C | 120 | |
| Low temp. Storage | -30°C | 120 | |
| Low temp. Operating | -20°C | 120 | |
| Humidity | 60°C/ 90%RH | 120 | |
| Thermal Shock Temp. Cycle | -20°C ¬ 25°C ®70°C
(0.5 hour ¬ 5 min ® 0.5 hour) |
10cycles | |

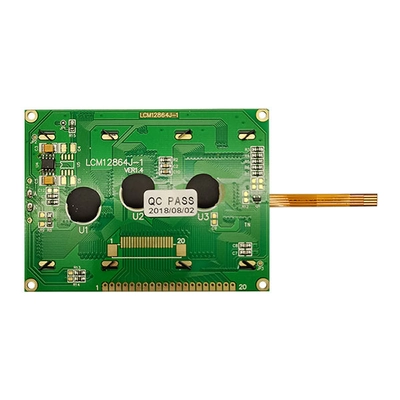

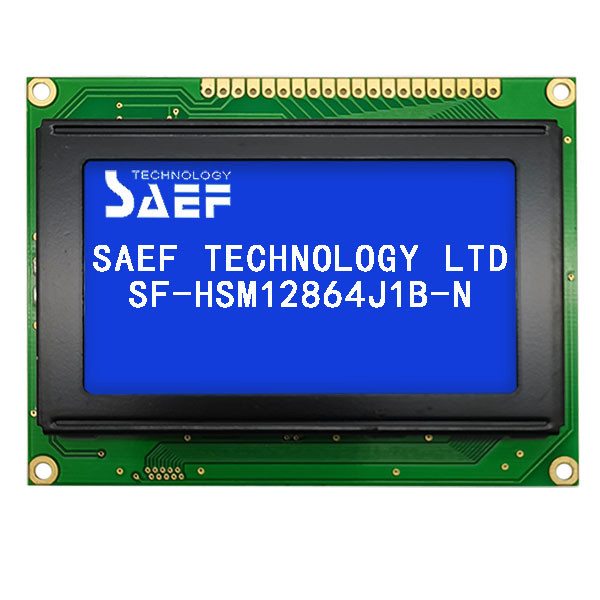

128×64 COB Graphic LCM Product Image
