Description
PCAP 21.5 Inch TFT LCD Display: Experience Full-HD Brilliance in Sunlight
Introducing the SFTO2150SMT-7048A-CT PCAP TFT display, a vibrant 21.5-inch color active matrix TFT LCD module employing amorphous silicon TFTs (Thin Film Transistors) as its active switching devices. With a diagonal measurement of 21.5 inches, the SFTO2150SMT-7048A-CT PCAP LCD display module boasts Full-HD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is intricately divided into RED, GREEN, and BLUE dots, arranged in a vertical stripe formation, enabling the display of 16.7M(Round up) (6bit+2FRC) colors with a color gamut of 72%. Additionally, this model integrates an LED driver for efficient back-light driving.
The SFTO2150SMT-7048A-CT PCAP TFT display showcases graphics and texts on a 1920×3×1080 dotspanel with 16.7M colors utilizing Dual-channel LVDS, 8 bits RGB data input, and delivering a +3.3VDC supply voltage for TFT-LCD panel driving. Incorporating color filters for exceptional color performance, this TFT LCD display panel ensures brighter and clearer pictures, making it an ideal choice for multimedia applications. Enjoy optimum viewings from all angles with the SFTO2150SMT-7048A-CT TFT LCD display panel.
Features:
- Resplendent 21.5-inch TFT Display, a testament to visual excellence.
- Seamlessly interfaces with LVDS, ensuring fluid connectivity.
- High-speed response empowers dynamic interactions.
- 6-bit (Hi-FRC) color depth, painting your world with 16.7M colors.
- Embraces an edge type (LED) backlight for enhanced clarity.
- Compatibility with RGB98% and NTSC45% (NTSC72% available).
- Revel in high luminance, contrast, and wide viewing angles.
- DE (data enable) only, simplifying your experience.
- Compliant with RoHS and Halogen standards
- TEO 6.0, ES6.0 Compliance ensures industry-leading performance.
- Enjoy Gamma Correction functionality, adding finesse to your touch experience.
| Keywords: | 21.5 Inch PCAP TFT Display |
| Resolution: | 1920*1080 Pixels |
| LCD Interface: | LVDS |
| LCD Size: | 495.6 X 292.2 X 10.57 mm (w/o Touch) |
| LCD With Touch: | 526 X 324 X 15.16 mm (with Touch) |
| Active Area: | 476.064(H) X 267.786(V) mm |
| CTP Interface: | USB |
| Surface Luminance: | 1000 Cd/m2 |
| Touch Screen: | CTP (Projective Capacitive Touch Screen) |
| Operating Temp.: | -10℃ To +60℃ |
| Storage Temp.: | -20℃ To +60℃ |
| Display Type: | IPS Full Viewing Angles |
| Contrast Ratio: | 1000 |
| LED Lifetime: | 30,000 Hours |
| Surface Treatment: | Haze 25%, 3H |
| Display Color: | 16.7 M |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |
PCAP 21.5 Inch TFT LCD Display FHD 1920*1080 Dots 1000Nits Product Drawing
Interface Pin Definition
| Pin No. | Symbol | Description | Remark |
| 1 | RxO0- | Negative LVDS differential data input (Odd data) | |
| 2 | RxO0+ | Positive LVDS differential data input (Odd data) | |
| 3 | RxO1- | Negative LVDS differential data input (Odd data) | |
| 4 | RxO1+ | Positive LVDS differential data input (Odd data) | |
| 5 | RxO2- | Negative LVDS differential data input (Odd data) | |
| 6 | RxO2+ | Positive LVDS differential data input (Odd data) | |
| 7 | GND | Ground | |
| 8 | RxOCLK- | Negative LVDS differential clock input (Odd clock) | |
| 9 | RxOCLK+ | Positive LVDS differential clock input (Odd clock) | |
| 10 | RxO3- | Negative LVDS differential data input (Odd data) | |
| 11 | RxO3+ | Positive LVDS differential data input (Odd data) | |
| 12 | RxE0- | Negative LVDS differential data input (Even data) | |
| 13 | RxE0+ | Positive LVDS differential data input (Even data) | |
| 14 | GND | Ground | |
| 15 | RxE1- | Negative LVDS differential data input (Even data) | |
| 16 | RxE1+ | Positive LVDS differential data input (Even data) | |
| 17 | GND | Ground | |
| 18 | RxE2- | Negative LVDS differential data input (Even data) | |
| 19 | RxE2+ | Positive LVDS differential data input (Even data) | |
| 20 | RxECLK- | Negative LVDS differential clock input (Even clock) | |
| 21 | RxECLK+ | Negative LVDS differential clock input (Even clock) | |
| 22 | RxE3- | Negative LVDS differential data input (Even data) | |
| 23 | RxE3+ | Positive LVDS differential data input (Even data) | |
| 24 | GND | Ground | |
| 25 | CTL | CTL_DVR | |
| 26 | CE | CE_DVR | |
| 27 | NC | No connection | |
| 28 | VDD | Power Supply Input Voltage | |
| 29 | VDD | Power Supply Input Voltage | |
| 30 | VDD | Power Supply Input Voltage | |
 PCAB USB Pin Definition
Pin1Â Â Â VBUS / VDD
Pin2Â Â Â DN / D-
Pin3Â Â Â DP / D+
Pin4Â Â Â GND
Electrical Characteristics
| Parameter | Symbol | Ratings | Unit | Remark | ||
| Min | Typ | MAX | ||||
| Power supply voltage | VDD | 4.5 | 5.0 | 5.5 | V | Note 1 |
| Power Supply Current | IVDD | 500 | 1200 | mA | ||
| In-Rush Current | IRUSH | 2.0 | 3.0 | A | Note 2 | |
| Permissible Input Ripple Voltage | VRF | 300 | mV | Note 3 | ||
| High Level Differential Input Threshold Voltage | VIH | +100 | mV | |||
| Low Level Differential Input Threshold Voltage | VIL | -100 | mV | |||
| Differential input voltage | VID | 200 | 600 | mV | ||
| Input voltage (BL) | VBL_I | -0.3 | VDD+0.3 | mV | V IH =100mV, V IL =-100mV | |
| Differential input common mode voltage | VCM | 1.0 | 1.2 | 1.5 |
[Note 5-3] |
|
| Power Consumption | VD | 2.5 | 6 | W | ||
Optical Characteristics
| Parameter | Conditions | Min. | Typ. | Max. | Unit | |
|
Viewing Angle (CR>10) |
Horizontal | θL | 85 | 89 | – |
degree |
| θ R | 85 | 89 | – | |||
| Vertical | θT | 85 | 89 | – | ||
| θB | 85 | 89 | – | |||
| Contrast Ratio | Center | 700 | 1000 | – | – | |
| Response Time | Tr+Td | – | 14 | 20 | ms | |
|
CFÂ Color Chromaticity (CIE1931) |
Red x |
Typ. -0.03 |
0 |
Typ. +0.03 |
0 | |
| Red y | – | – | ||||
| Green x | – | – | ||||
| Green y | – | – | ||||
| Blue x | – | – | ||||
| Blue y | – | – | ||||
| White x | 0.323 | – | ||||
| White y | 0.379 | – | ||||
| Center Luminance of white | YLI | 1000 | 1200 | cd/m2 | ||
| Cross Talk | Ct | 2.0 | % | |||

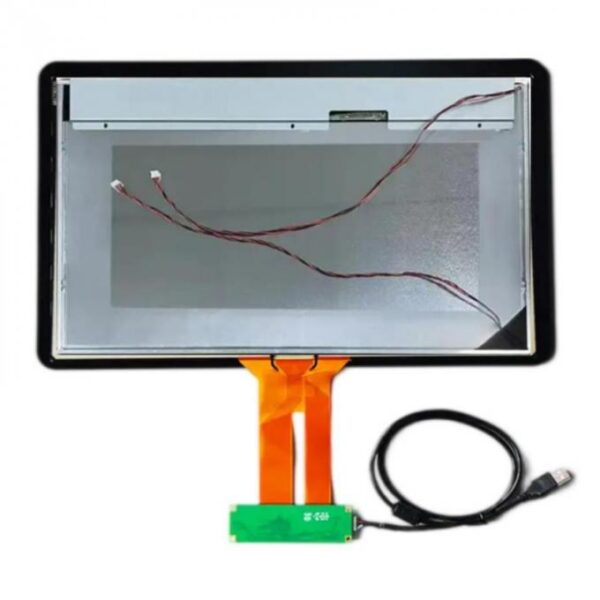

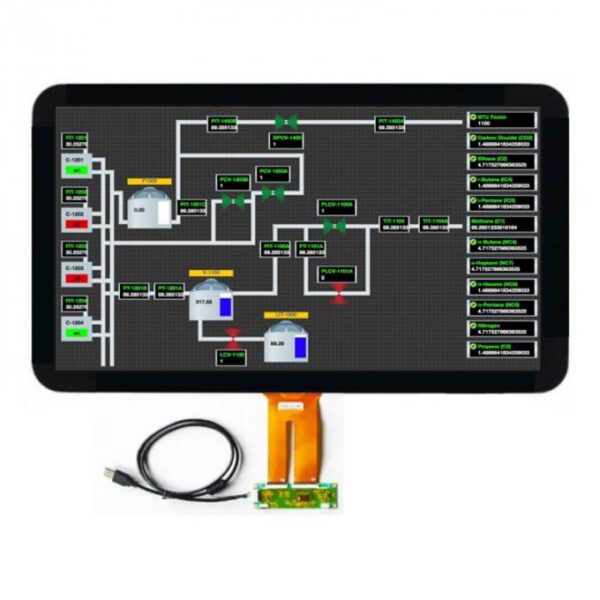

PCAP 21.5 Inch TFT LCD Display FHD 1920*1080 Dots 1000Nits Product Image
Projected Capacitive (PCAP) Touch Screen
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The Techstar’s projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
