COG Graphic LCD Module 240×128 LCD Display FSTN Positive MCU Interface Introduction
Product Quick Insights:
- Model No. SF-240128-004A
- Graphic LCD 240×128
- +3V power supply
- 1/128 duty cycle
- Internal boost option
- Interface: MCU
Description:
The SF-240128-004A is a monochrome 240×128 COG graphic LCD display module with a compact size of 66.0 x 44.3 x 5.1 mm. The viewing area measures 61 x 33.8 mm. Equipped with the UC1638C IC, the module supports a 6800 interface by default, with other interface options such as 8080, 3-line, and 4-line SPI also available.
The logic voltage for this LCD module ranges from 3V to 3.6V, with a typical value of 3V. Operating within a temperature range of -20°C to +70°C, this module ensures reliable performance. Additionally, it has a storage temperature range of -30°C to +80°C, making it suitable for various environments. The module features a white LED backlight, providing clear visibility for the graphical content displayed.
Techstar Display is a professional Character and Graphic LCD manufacturer. Techstar’s graphic LCD displays (liquid crystal display) are available in dot matrix format of graphic resolution including 122×32, 128×64, 128×128, 144×32, 160×128, 160×160, 160×32, 160×80, 192×64, 192×128, 240×64, 320×240 and etc. The sizes are including 3 inch, 4 inch, 5 inch Graphic LCD and etc. Techstar Graphic LCD modules are including different options of polarizer in reflective, transmissive or transflective types. Our LED backlights are available in various colors including yellow/green, white, blue, red, amber and RGB.
We have an extensive range of LCD graphic displays with various backlight and LCD type combinations. Techstar’s graphic LCD can be used on instrument and industry machinery equipment as well as electrical home appliances, consumer electronics including white goods, POS system, home applications, industrial instrument, automation, audio/visual display systems, and medical devices.
Features:
| Product: | Graphic LCD 240×128 Display |
| Resolution: | 240×128 Dots |
| LCD Type: | FSTN, Positive, Transflective |
| Optics: | 6:00 O’clock |
| Outline Dim.: | 66.0(L) X 44.3(W) X 5.1(T) mm |
| Viewing Area: | 61.0(L) X 33.8(W) mm |
| Dot Pitch: | 0.21 X 0.21 mm |
| Driving Method: | 1/128 Duty Cycle, 1/12 Bias |
| Operating Temp | -20°C To +70°C |
| Pin Number: | 30 Pins (Can Be Customized) |
| Interface: | MCU (Customizable) |
| VDD: | 3V |
| Connector: | ZIF FPC (Customizable) |
| Compliance: | REACH & RoHS Compliant |

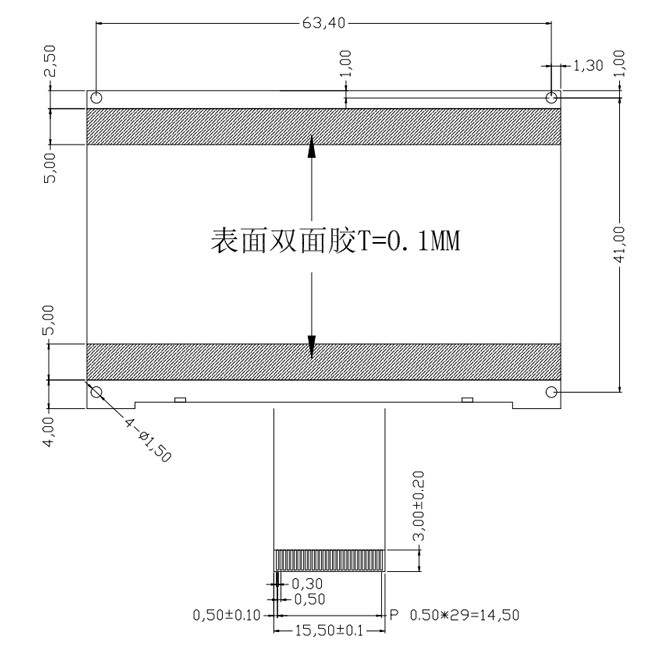

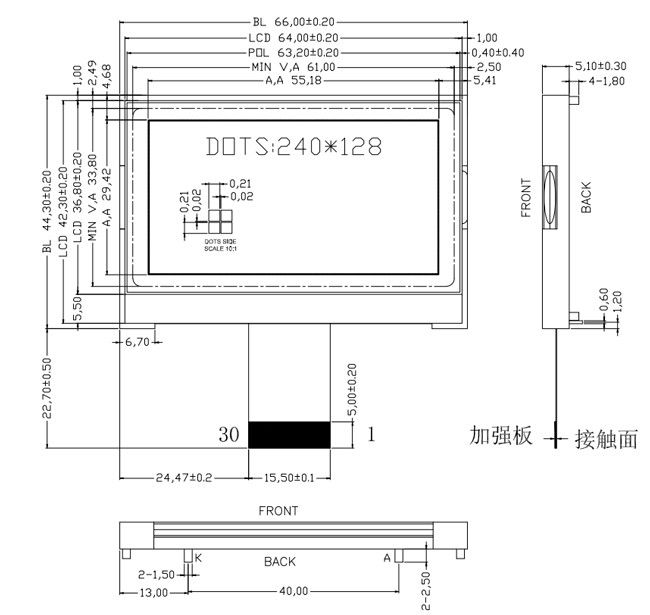

240×128 Graphic LCD Module Drawing

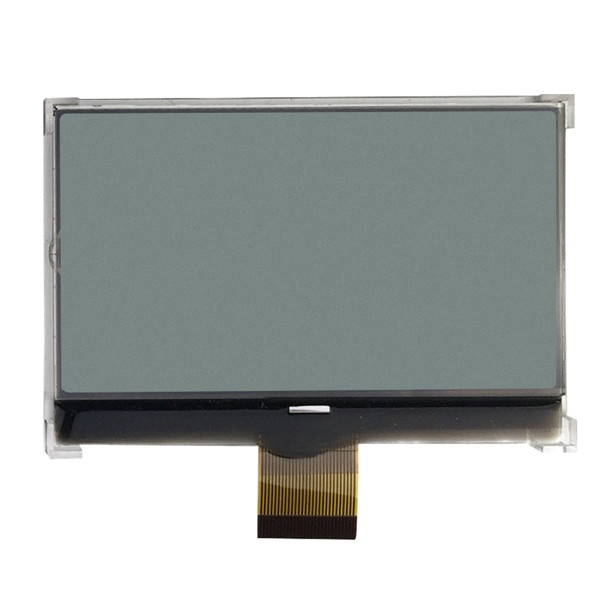

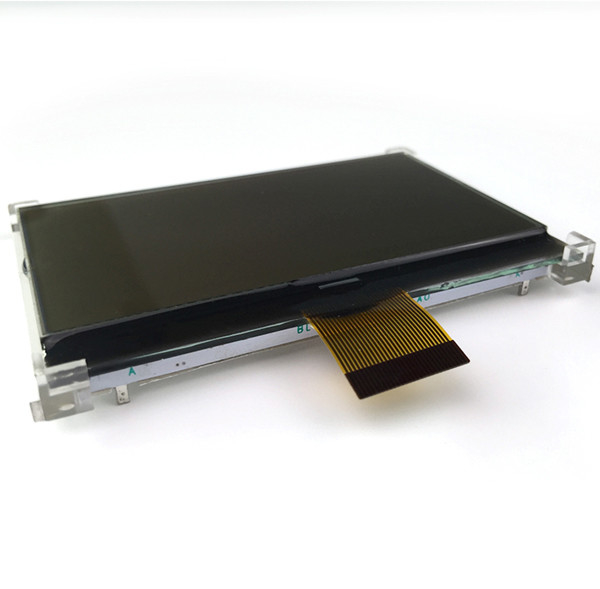

240×128 Graphic LCD Module Real Product Image
