Description
Introducing the SFTO2700B-7125AN industrial TFT display, boasting a generous 27-inch diagonal measurement for immersive viewing experiences. With Ultra High Definition (UHD) resolution comprising of 3840 horizontal x 2160 vertical pixel array, every detail is vividly portrayed.
This sophisticated display divides each pixel into vibrant red, green, and blue dots, elegantly arranged in vertical stripes, enabling a stunning spectrum of 1.07 billion colors. Crafted for versatility, its TFT-LCD panel caters to both low-reflection and high-color demands, ensuring optimal performance in diverse environments.
Engineered for seamless connectivity, the module supports an eDP interface, facilitating smooth interaction with compatible devices. Operating at a maximum voltage of 11V with a Vdd ranging from 9V to 11V, it delivers reliable performance under varying conditions.
The SFTO2700B-7125AN is equipped with a capacitive touch screen, offering both single-touch and multi-touch functionalities to suit individual preferences. With a luminance of 1000cd/m2, this TFT LCD module illuminates your content with remarkable clarity.
Renowned for its superior quality, this industrial-grade display finds widespread applications across industries, including industrial automation, medical equipment, POS terminals, HMIs, home automation systems, and security solutions. Experience excellence with the TFT touch LCD SFTO2700B-7125AN, your gateway to enhanced visual experiences.
Product Features:
| Product: | 27 Inch Industrial TFT Display |
| Resolution: | 3840(H) X 2160 (V) Pixels |
| Surface Luminance: | 1000 Cd/m2(nits) |
| Interface: | EDP Interface |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Pin Number: | 30pins |
| Outline Dim.: | 630.0(H) X368.2 (V)x20.98(T) (mm) |
| Active Area: | 596.736(H) X 335.664 (V) (mm) |
| Surface Treatment: | Hard Coating(3H), Haze 25% |
| Connection: | ZIF |
| Touch Screen: | CTP Optional |
| Color Depth: | 1.07 B (8bit+A-FRC) |
| Vsync Frequency: | 60HZ |
| Storage Temp.: | -30℃ To +80℃ |
| Operating Temp.: | -20℃ To +70℃ |
| Backlight: | Long Side, 2-LED Lighting Bar Type |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |

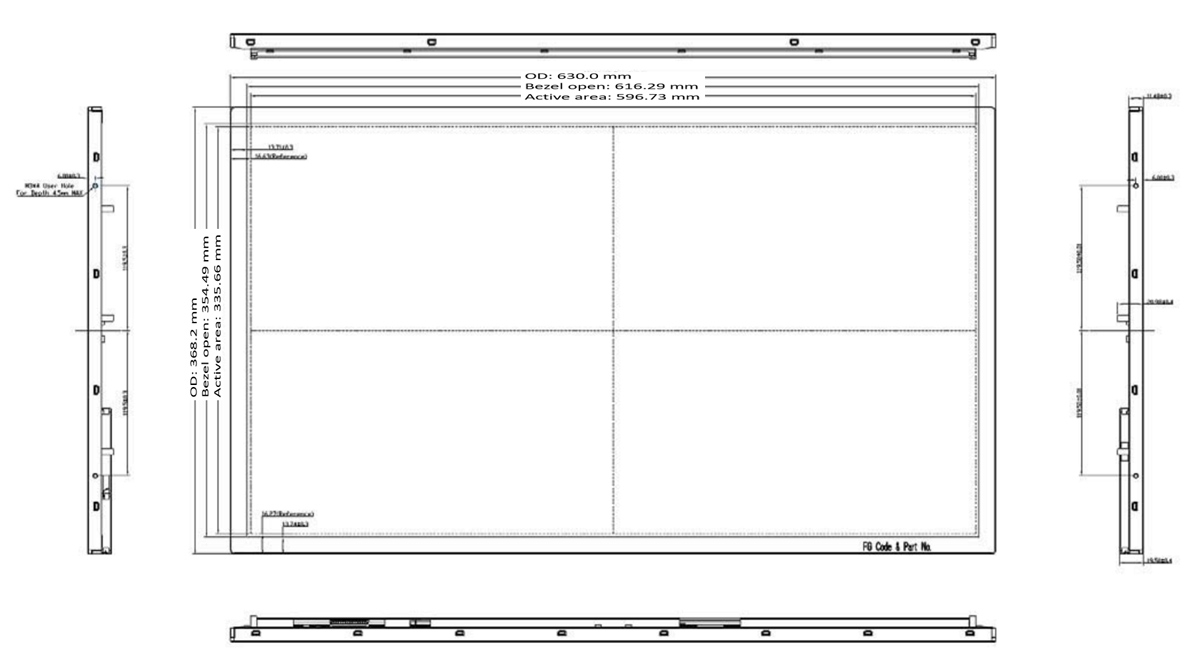

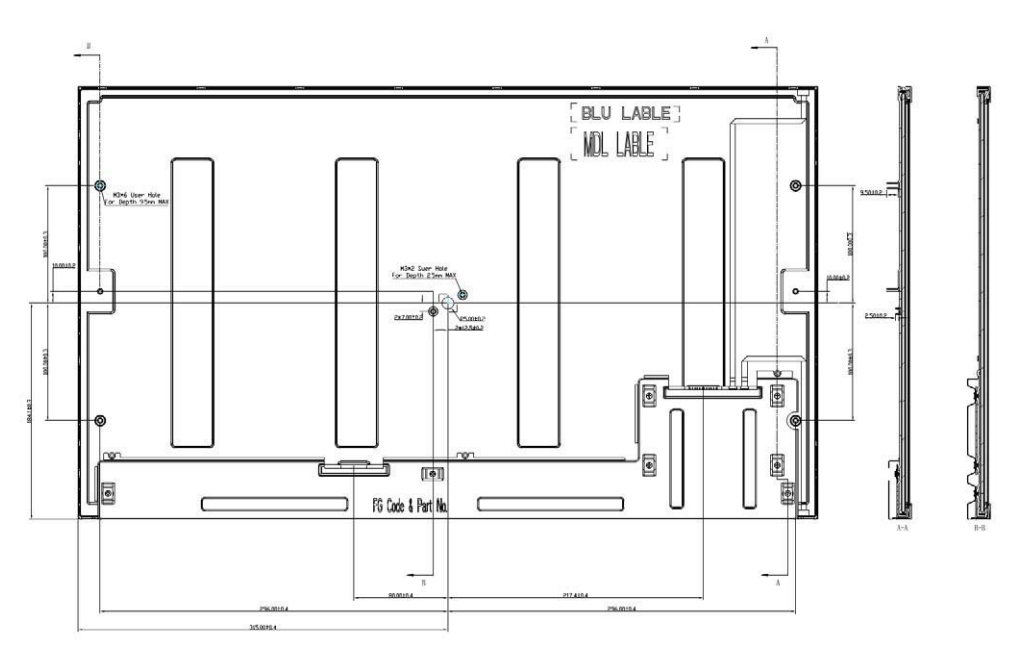

27 Inch 4K Color TFT Display EDP Interface 1000nits Product Drawing

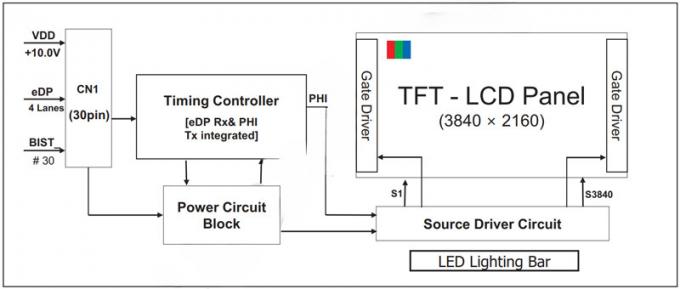

LCD Module Electrical Specifications

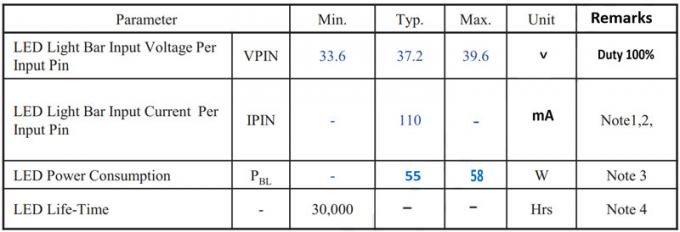

Backlight Unit Specifications

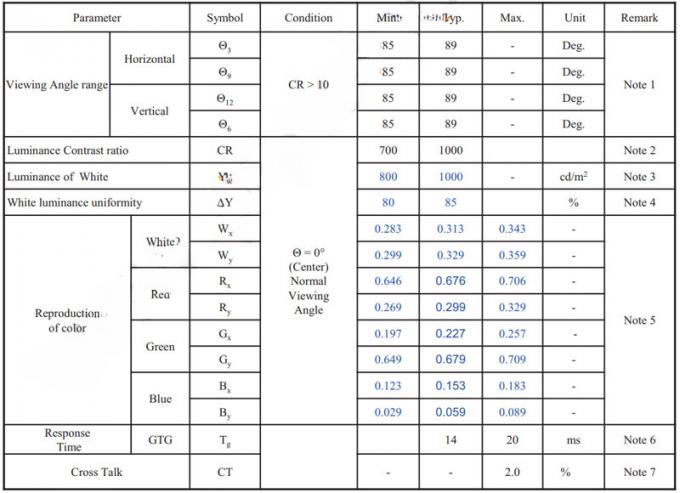

LCD Module Optical Specifications

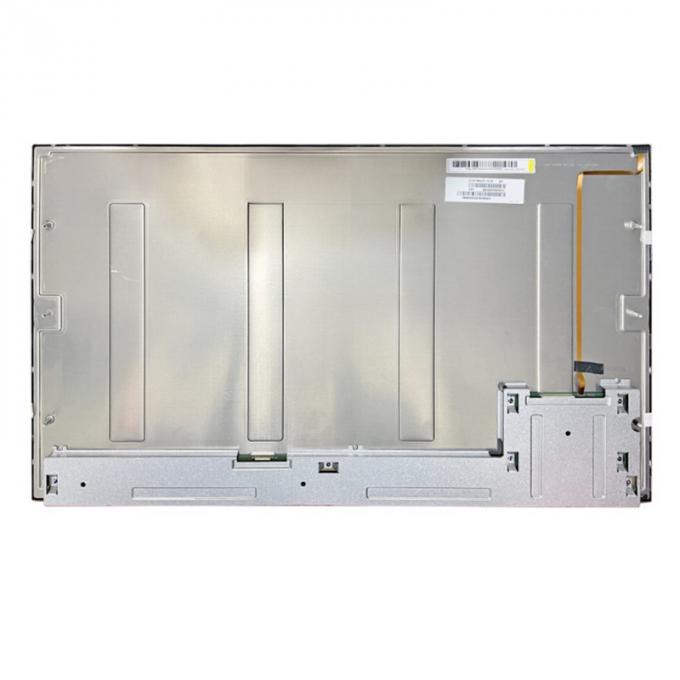

27 Inch 4K Color TFT Display EDP Interface 1000nits Product Image
