Unveiling the SF-TC320S-9951H-N: A 3.2-inch Jewel of Visual Brilliance
Introducing the SF-TC320S-9951H-N, a 3.2-inch portrait mode TFT LCD display boasting a vibrant 480×800 resolution. Its luminance shines at 350 cd/nits (typical value), paired with a contrast ratio of 500:1 (typical value). Powering this visual marvel is a supply voltage (VCC) ranging from 2.6V to 3.3V. From chilling -20 ℃ to toasty +70 ℃, this 3.2-inch IPS-LCD TFT remains steadfast, with storage between -30 ℃ and +80 ℃.
This diminutive yet powerful display finds its home in a myriad of applications:
- Internet of Things (IoT) Integration: Seamlessly embed into IoT ecosystems like smart homes and industrial controls.
- Medical Marvels: From life-saving portable defibrillators to precise insulin pumps, it’s the heartbeat of medical innovation.
- Industrial Automation: Revolutionize machine control and process monitoring with its precision.
- Gaming Galore: Elevate handheld gaming consoles with its immersive visual experience.
These are just glimpses into its boundless potential. Each application breathes life into its pixels, tailored to meet diverse needs and desires.
Key Features:
- Resolution: A crisp 480×800 pixel array paints the canvas of possibility.
- Driver IC: Powered by the HX8369, it’s the brain behind seamless RGB interfacing.
- Power Supply: With Vdd ranging from 2.6V to 3.3V, it ensures stable performance.
- Viewing Pleasure: Immerse yourself in its IPS glory, offering a full 85/85/85/85 viewing angle.
- Brightness Customization: From 350 nits to a dazzling 1000 nits, tailor it to your luminous dreams.
- Temperature Tolerance: Enduring from freezing -20 ℃ to sizzling +70 ℃, it’s your steadfast companion indoors and out.
Versatile, resilient, and visually captivating, the SF-TC320S-9951H-N transcends boundaries, promising a display solution as diverse as your imagination.
| Product: | 3.2″ IPS TFT LCD |
| Resolution: | 480×800 Pixels |
| Interface: | RGB Interface |
| Touch Screen: | Without Touch Screen |
| Connection: | ZIF FPC |
| Driver IC: | HX8369 |
| Viewing Direction: | IPS All Viewing Angles |
| Pin Number: | 39 Pins |
| Surface Luminance: | 350 Cd/m2 |
| Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ |
| Compliance: | REACH & RoHS Compliant |
3.2 Inch IPS TFT LCD 480×800 Pixels RGB Interface Product Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | GND | I | Ground |
| 2 | IOVCC | I | Power Supply 2.8V/1.8V Voltage |
| 3 | VCC | I | Power Supply 2.8V Voltage |
| 4 | CS | I | Input pin for chip selection signal |
| 5 | SCL | I | SPI Clock Signal |
| 6 | SDA | I/O | SPI Interface Input/output Pin |
| 7 | RESET | I | LCM Reset input signal |
| 8 | ENABLE | I | Input Data enable control |
| 9 | DOTCLK | I | Clock Signal to Sample each date |
| 10 | HSYNC | I | Horizontal Synchronizing Signal |
| 11 | VSYNC | I | Vertical Synchronizing Signal |
| 12-17 | B0-B5 | I/O | Display Data I/O |
| 18-23 | G0-G5 | I/O | Display Data I/O |
| 24-29 | R0-R5 | I/O | Display Data I/O |
| 30 | NC | – | Set Open |
| 31 | LED-K | O | LED Cathode |
| 32 | NC | – | Set Open |
| 33 | LED-A | O | LED Anode |
| 34 | NC | – | Set Open |
| 35 | XL | I | Touch Panel Pin |
| 36 | XR | I | Touch Panel Pin |
| 37 | YU | I | Touch Panel Pin |
| 38 | YD | I | Touch Panel Pin |
| 39 | GND | I | Ground |
| Â | Â |
Maximum Absolute Limit
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | Â 0.3~4.6 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
| Â |
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 30 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
Backlight Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | TestCondition |
| Supply Voltage | Vf | Â | 19.2 | Â | V | If=Â 20 mA |
| Supply Current | If | – | 15 | 20 | mA | – |
| Reverse Voltage | Vr | – | – | 5 | V | – |
| Power dissipation | Pd | – | 288 | – | mW | – |
| Luminous Intensity |  – | 280 |  | – | Cd/m2 | If= 20 mA |
| Uniformity for LCM | – | 80 | – | – | ％ | If= 20 mA |
| Â |

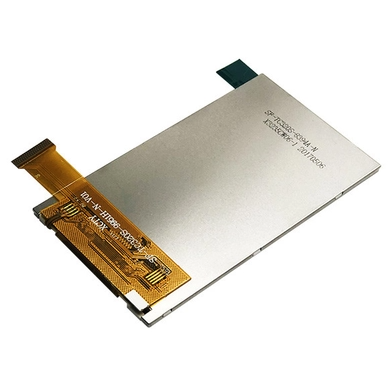

3.2 Inch IPS TFT LCD 480×800 Pixels RGB Interface Product Image
