High-Performance 3.4 Inch Round TFT LCD Display for Automotive and Beyond
Introducing the SFTO340XC-7093A-CT, a versatile 3.4-inch round TFT LCD display module delivering exceptional clarity and brightness.
Key Features & Benefits:
- Stunning Resolution: 800×800 pixels ensure crisp visuals and sharp text.
- Impressive Brightness: 1000 cd/nits for excellent visibility even in direct sunlight.
- Wide Viewing Angles: IPS technology provides consistent image quality from any direction.
- Temperature Resilience: Operates reliably in harsh conditions (-20°C to +70°C).
- Compact and Lightweight: Ideal for space-constrained applications.
Applications:
- Automotive: Enhance displays in dashboards, infotainment systems, and instrument clusters.
- IoT Devices: Bring visual interfaces to smart home controls, industrial systems, and more.
- Medical Devices: Integrate into portable diagnostic equipment and patient monitors.
- Industrial Automation: Upgrade displays in machine controls and process monitoring systems.
- Gaming: Power captivating visuals for handheld devices.
Why Choose the SFTO340XC-7093A-CT?
- Superior image quality for enhanced user experiences.
- Rugged design suited for demanding environments.
- Broad compatibility thanks to its MIPI interface.
Upgrade your project with this exceptional display solution!
| Product: | 3.4 Inch Circular TFT Display |
| Resolution: | 800×800 Pixels |
| Interface: | MIPI |
| Viewing Direction: | IPS Full Viewing Angle |
| Driver IC: | FL7707 |
| Pin Number: | 30 Pins |
| Surface Luminance: | 1000 Cd/m2 (nits) |
| Touch Screen: | Capacitive Touch Panel (CTP) Optional |
| CTP Controller: | HX8526-E30 |
| Top:: | -20°C To +70°C |
| Tst:: | -30°C To +80°C |
| Connection: | ZIF |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |
3.4 Inch Round TFT LCD Display 800×800 Pixels for Automotive Application Product Drawing
Definition Pin Assignment
| NO. | PIN NAME | Description |
| 1 | LEDA | LED anode |
| 2 | LEDK1 | LED Cathode |
| 3 | LEDK2 | LED Cathode |
| 4 | VCI | Power Supply 2.8~3.3V |
| 5 | IOVCC | Power Supply 1.8V-2.0V |
| 6 | RESET | LCM reset signals |
| 7 | TE | Tearing effect output |
| 8 | PWM | The PWM frequency output for LCD driver control. |
| 9 | GND | Ground |
| 10 | D0P | DSI-D0+ data signals |
| 11 | D0N | DSI-D0- data signals |
| 12 | GND | Ground |
| 13 | D1P | DSI-D1+ data signals |
| 14 | D1N | DSI-D1- data signals |
| 15 | GND | Ground |
| 16 | CLKP | DSI-Clock+ |
| 17 | CLKN | DSI-Clock- |
| 18 | GND | Ground |
| 19 | D2P | DSI-D2+ data signals |
| 20 | D2N | DSI-D2- data signals |
| 21 | GND | Ground |
| 22 | D3P | DSI-D3+ data signals |
| 23 | D3N | DSI-D4- data signals |
| 24 | GND | Ground |
| 25 | TP_INT | Touch Interrupt |
| 26 | TP_SDA | Touch IIC Data signal |
| 27 | TP_SCL | Touch IIC Clock signal |
| 28 | TP_RESET | Touch Reset Signal |
| 29 | TP_VCI | Touch Power supply |
| 30 | TP_IOVCC | Touch Power supply |
Absolute Maximum Ratings (GND=0V, Ta= 25℃)
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 0.3~3.6 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | 。C |
| Storage temperature | Tstg | -30 to 80 | 。C |
Electrical Characteristics
| Item | Symbol | Min | Type | Max | Unit | Test condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 30 | mA | VDD=2.8V,Ta=25。C |
| Input voltage | VIH | 0.8VDD | – | VDD | V |
– |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | – 1.0 | – | 1.0 | μA | VIN=VDD or VSS |
Backlight Characteristics
| Item | Symbol | Min | Typ | Max | Unit | Remark |
| Forward Current | IF | — | 40 | – | mA | |
| Forward Voltage | VF | – | 12.8 | – | V | |
| Connection mode | P | — | 4S2P | — | ||
| LED number | / | 8 | pcs | |||
| LED lifetime | 30000 | hours | ||||

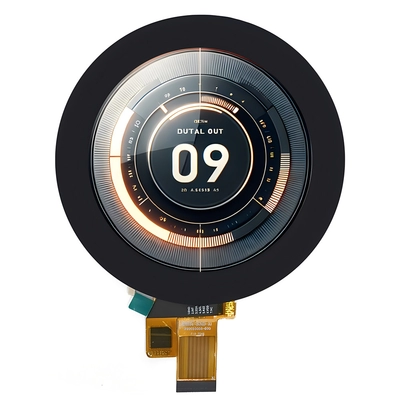

3.4 Inch Round TFT LCD Display 800×800 Pixels for Automotive Application Product Image
