Description

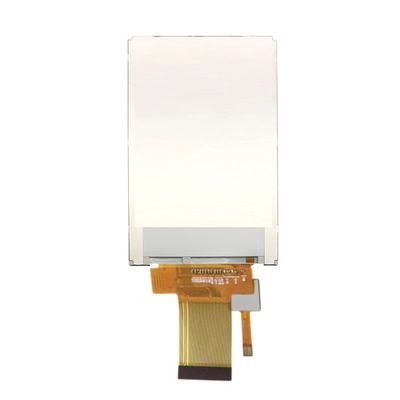

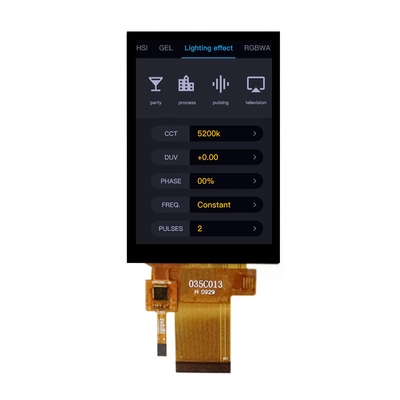

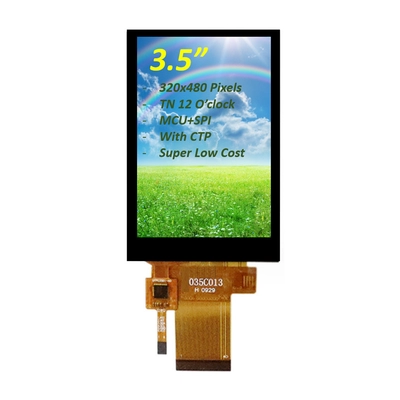

ShenZhen Techstar Electronics Incorporated Co., Ltd SFTO350PY-7118A-CT: A Cost-Effective, High-Brightness 3.5-Inch TFT LCD Touch Screen with 320×480 Pixels
The ShenZhen Techstar Electronics Incorporated Co., Ltd SFTO350PY-7118A-CT LCD touch screen is a versatile 3.5-inch display featuring TN type (12 o’clock) viewing direction, boasting a resolution of HVGA 320×480 pixels. Equipped with the ILI9488 controller or equivalent IC, this LCD touch screen module offers seamless compatibility with MCU 8/16BIT and SPI 3/4 wires interface. Operating at a low voltage of 2.8V (typical value), with Vdd ranging from 2.4V to 3.3V, it ensures efficient power consumption.
Designed with a capacitive touch panel, the SFTO350PY-7118A-CT offers both single-touch and multi-touch options, providing flexibility for various applications. This TFT module is optimized for portrait mode, delivering a luminance of 500cd/m2. For landscape mode or enhanced luminance requirements, tailored technical support is available upon request.
The SFTO350PY-7118A-CT TFT LCD touch screen finds widespread utility across diverse industries, including meter and instruments, GPS devices, POS terminals, cash readers, scanners, home automation systems, conference phones, analyzers, home appliances, and security systems.
For further inquiries or technical assistance, please don’t hesitate to reach out to us.
| Product: | 3.5 Inch TFT LCD Touch Screen |
| Resolution: | 320×480 HVGA |
| Interface: | MCU 8/16BIT, SPI 3/4wire |
| Pin Number: | 40pins |
| Viewing Direction: | 12 O’clock |
| Surface Luminance: | 500 Cd/m2(nits) |
| Outline Dim.: | 54.48(H)x84.71(V)x3.40(T) (mm) |
| Active Area: | 48.96(H)x73.44(V) (mm) |
| Touch Screen: | With Capacitive Touch Panel |
| CTP Driver: | FT6336U |
| Driver IC: | ILI9488 |
| Connection: | Plugging |
| Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |
Super Low Cost Hight Brightness 3.5 Inch TFT LCD Touch Screen 320×480 pixels Product Drawing
Optical Specification
