Description
The SF-TO351AS-8993A-N display module features a 3.51-inch TFT (Thin Film Transistor) display with a resolution of 340×800 pixels. This display utilizes a transmissive color active matrix liquid crystal display technology, with amorphous silicon TFT serving as the switching device. Comprising a TFT LCD module, driver circuit, and backlight unit, it can render up to 16.7 million colors for vivid and detailed imagery.
Advantages of the Product
- IPS Full Viewing Angle (80/80/80/80): Experience exceptional viewing angles suitable for various applications, whether it’s placed atop, on a table, or handheld.
- Outstanding Display Performance: Enjoy superior performance in background color, luminance, viewing angle, and intensity, ensuring an immersive experience.
- Premium Quality for Industrial and Medical Use: Designed to meet the highest standards, ideal for demanding industrial and medical applications.
- Customizable Touch Screen Options: Choose between resistive touch screen or opt for a customized CTP (capacitive touch panel) tailored to your needs. Additionally, the FPC is customizable for added flexibility.
- Competitive Pricing without Compromising Quality: Our solution offers competitive pricing while maintaining excellent quality, setting a benchmark in the LCD industry.
- Hassle-Free Installation and Maintenance: Designed for convenience, our product is easy to install and maintain, saving you time and effort.
| Product: | 3.51″ TFT Portrait |
| Resolution: | 340×800 |
| Driver IC: | ST77001S or Equivalent |
| Outline Dimension: | 36.67(H) X 88.45(V) X 1.61(T) mm |
| Surface Luminance: | 580 Cd/m2 (nits) |
| LED Lifetime: | 40,000 Hours |
| Touch Screen: | Capacitive Touch Panel (CTP) Optional |
| Viewing Direction: | IPS Full Viewing Angle(80/80/80/80) |
| Pin Number: | 31 Pins |
| Connection: | Plugging ( Can Be Customized ) |
| Interface: | MIPI |
| Compliance: | REACH & RoHS Compliant |
Portrait 3.51 inch TFT Display 340×800 Resolution Product Drawing
Pin Definition

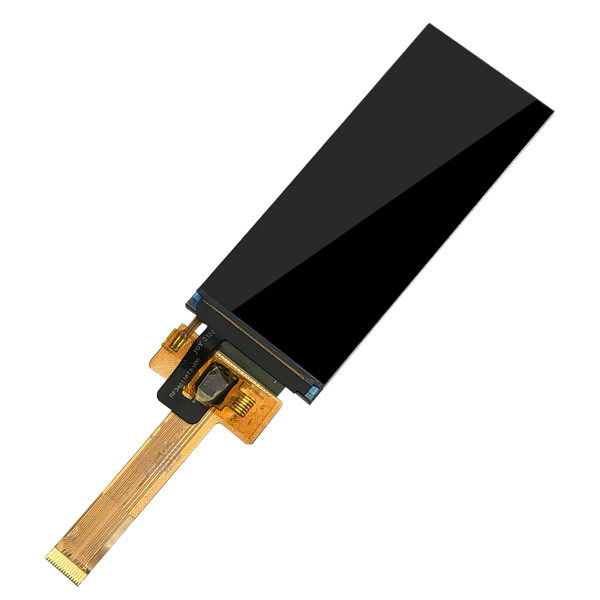

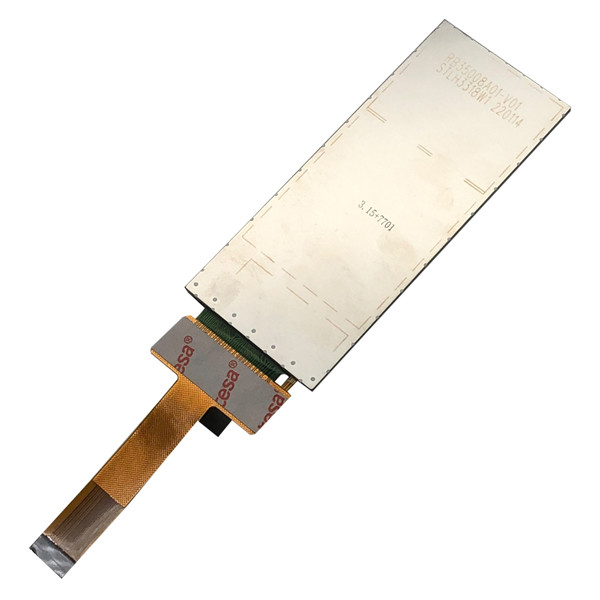

Portrait 3.51 inch TFT Display 340×800 Resolution Real Product Image
