TFT Display Factory Supply 3.7 Inch TFT LCD Display 480×800 Pixels Mipi/RGB Interface Optional

——————–

short description

Description

Unveiling the 3.7-Inch TFT LCD Display: Introducing the 3.7″ LCD Screen with 480×800 Pixels



Dive into its Features:



  • Embark on a visual journey with our 3.7-inch TFT LCD display, the SF-TC370S-9793B-N, boasting a diagonal size of 3.7 inches and a striking resolution of 480×800 pixels (480 horizontal by 800 vertical pixels array).
  • Harnessing the power of an HX8369-A01 driver IC, this 3.7 LCD display module seamlessly supports an RGB interface, ensuring vivid and dynamic visuals.
  • Experience versatility with a power supply voltage (Vdd) ranging from 2.6V to 3.3V (typical value of 2.8V), offering optimal performance across various settings.
  • Immerse yourself in unparalleled clarity with our IPS type display, providing a full view angle of 85/85/85/85 max, perfect for any orientation.
  • Elevate your viewing experience with a brightness of 300 nits, customizable up to 1000 nits to cater to diverse customer needs, ensuring visibility even in challenging lighting conditions.
  • Conquer extreme conditions with operating temperatures ranging from -20 ℃ to +70 ℃, coupled with a storage temperature spanning from -30 ℃ to +80 ℃, guaranteeing reliability in any environment.
  • Whether indoors or outdoors, our 3.7-inch TFT LCD display is engineered to excel, catering to a myriad of display requirements. From industrial equipment to home automation systems, scanners to security systems, unleash its multifunctional prowess across diverse applications with uncompromising performance.

Product Information

Product: 3.7″ Inch TFT Screen
Resolution: 480×800
Viewing Direction: IPS All Viewing Angles
Driver IC: HX8369-A01
Touch Screen: Without
Cover Glass Dimension: Can Be Customized
Interface: RGB 18 Bits
Connection: Connector Type
Surface Luminance: 300 Cd/m2(nits)
Operating Temp.: -20℃ To +70℃
Pin Number: 40 Pins
Outline Dim.: 53.48(H)*91.72(V)*1.6(T) (mm)
LED Lifetime: 40,000 Hours
Compliance: REACH & RoHS Compliant

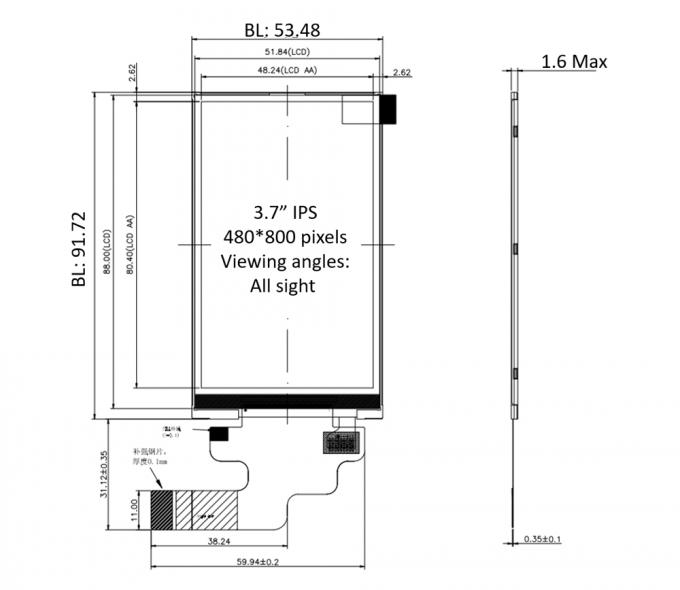

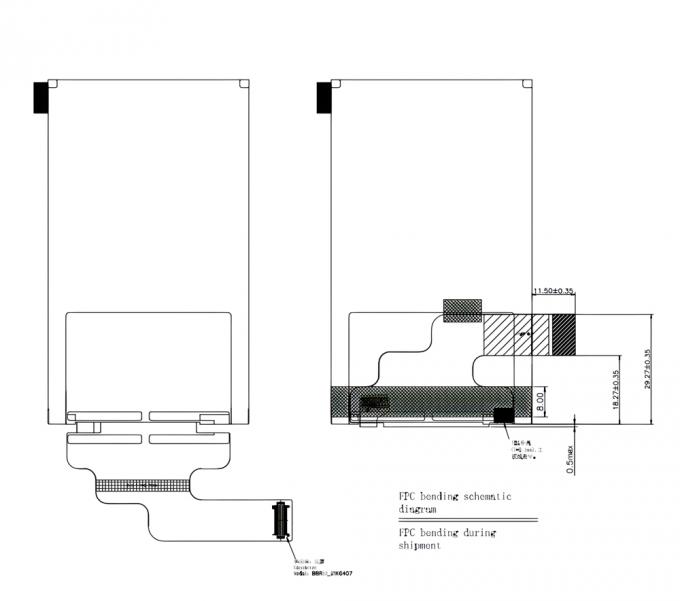

3.7 Inch TFT LCD Display, 3.7″ LCD Screen 480×800 Pixels Product Drawing

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 0

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 1

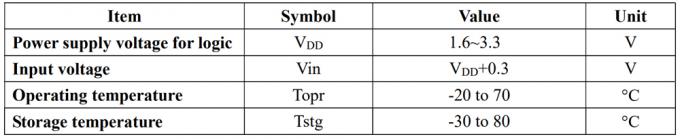

Maximum Absolute Limit

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 2

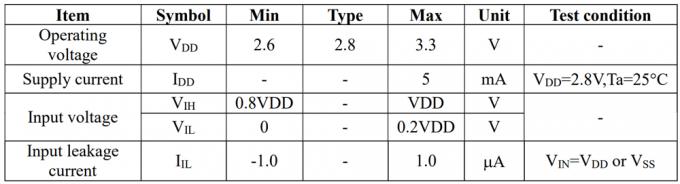

DC Characteristics

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 3

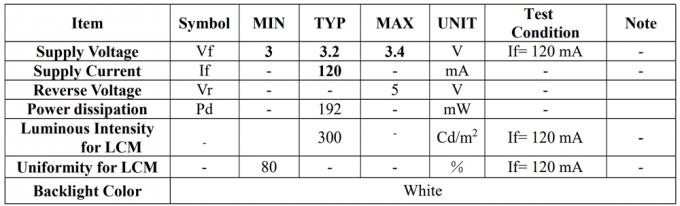

Backlight Electrical-optical Characteristics

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 4

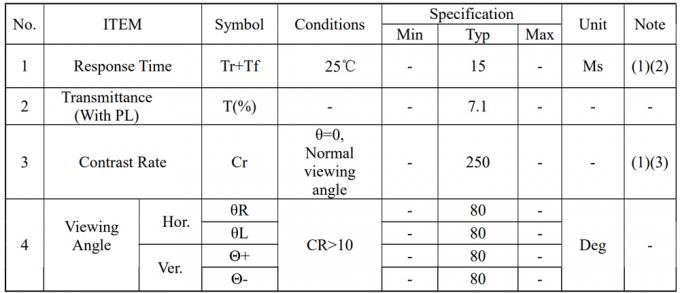

Optical Characteristics

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 5

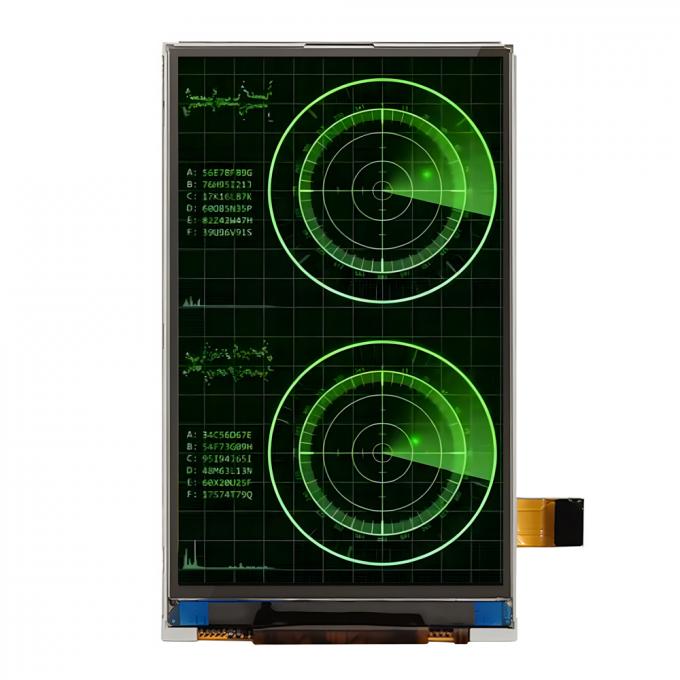

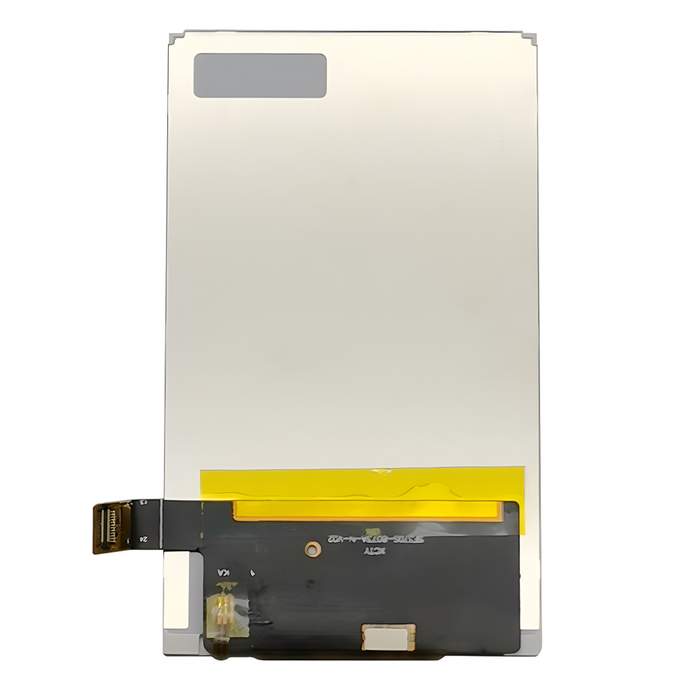

3.7 Inch TFT LCD Display, 3.7″ LCD Screen 480×800 Pixels Product Image

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 6

3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional 7



Additional information

Place of Origin

ShenZhen / China

Brand

ShenZhen Techstar Electronics

Model

SF-TC370S-9793B-N

Certification

ISO9001 / ISO14000

Minimum Order Quantity

3 pcs

Price

Negotiable

Packaging Details

Standard Exportation Package

Delivery Time

1-5 weeks

Payment Method

L/C, Paypal, T/T, Western Union

Supply Ability

3000K pcs per month
