Unveiling the Techstar SF-TC370S-9793A-N: A 3.7″ TFT LCD Marvel with 480×800 Resolution
Step into the world of cutting-edge technology with the Techstar SF-TC370S-9793A-N, a TFT LCD module boasting a 3.7″ diagonal size and an impressive resolution of 480×800 pixels. Powering this display is the advanced HX8369 IC, seamlessly integrating controller and driver functions. It effortlessly supports an RGB interface and operates within a versatile supply voltage (Vdd) range of 2.6V to 3.3V, with a typical value of 2.8V.
Embracing portrait mode, the SF-TC370S-9793A-N shines with a brightness of 200 nits (typical). This module offers adaptability with optional Resistive Touch Screen and Projected Capacitive Touch Screen features. Operating smoothly in temperatures ranging from -20℃ to +70℃ and storing gracefully between -30℃ to +80℃, it stands as a robust solution for various applications.
Beyond its technical prowess, this 3.7″ TFT LCD module finds utility in an array of devices, from coffee machines and microwave ovens to scanners, home automation systems, access control setups, monitoring equipment, analyzers, security systems, and even garden irrigation systems. Elevate your technological experience with the SF-TC370S-9793A-N – where innovation meets versatility.
Pin Definition
Pin1, GND, Ground.
Pin2, AVDD(2.8V), Power Supply 2.8V Voltage.
Pin3, VDDIO(1.8V), Power Supply 1.8V Voltage.
Pin4~Pin9, R5-R0, Display Data I/O.
Pin10~Pin15, G5-G0, Display Data I/O.
Pin16~Pin21, B5-B0, Display Data I/O.
Pin22, LCDC_RST, LCM Reset input signal.
Pin23, LCDC_VSYNC, Vertical sync. Signal in RGB I/F
Pin24, LCDC_HSYNC, Horizontal sync. Signal in RGB I/F.
Pin25, SPI_SDO, Serial output signal in SPI I/F.
Pin26, SPI_SDI, Serial input signal in SPI I/F.
Pin27, SPI_SCLK, A synchronous clock signal in SPI I/F.
Pin28, SPI_CS, Chip select input pin (“Low” enable) in SPI I/F.
Pin29, LCDC_PCLK, Pixel clock signal in RGB I/F.
Pin30, LCDC_DEN, Data enable signal in RGB I/F mode 1.
Pin31, LEDK8, LED Cathode
Pin32, LEDK7, LED Cathode
Pin33, LEDK6, LED Cathode
Pin34, LEDK5, LED Cathode
Pin35, LEDK4, LED Cathode
Pin36, LEDK3, LED Cathode
Pin37, LEDK2, LED Cathode
Pin38, LEDK1, LED Cathode
Pin39, LEDA, LED Anode
Pin40, GND, Ground
| Product: | 3.7″ Inch IPS TFT LCD |
|---|---|
| Resolution: | 480×800 Dots |
| Interface: | RGB |
| Touch Screen: | Customizable |
| Viewing Direction: | All Viewing Angles (IPS) |
| Driver IC: | HX8369 |
| Pin Number: | 40 Pins |
| Module Size: | 53.48 X 91.72 X 1.6 mm |
| Active Area: | 48.24 X 80.4 mm |
| Connection: | Connector Type (Can Be Customized) |
| Surface Luminance: | 200 Cd/m2 (nits) |
| Operating Temp.: | -20℃ To +70℃ |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |

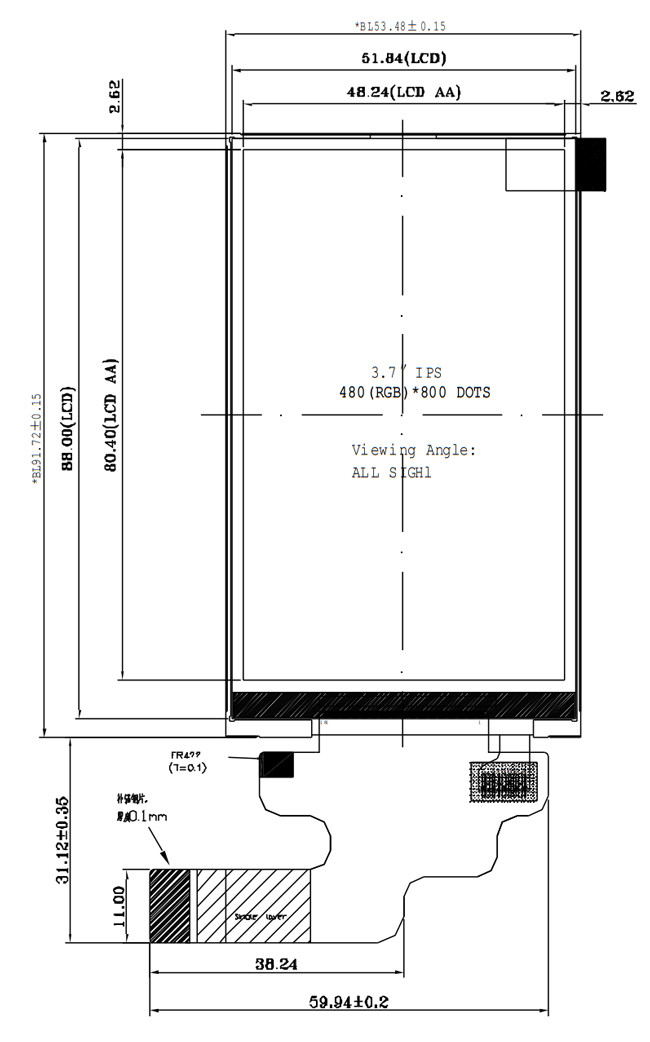

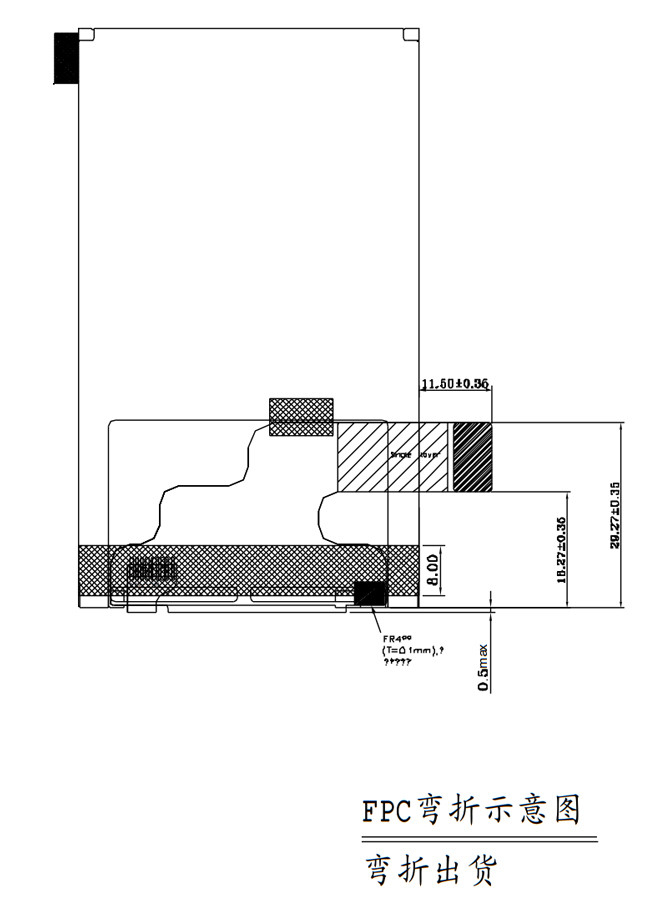

Portrait 3.7″ TFT LCD Module, 3.7″ 480×800 TFT Drawing

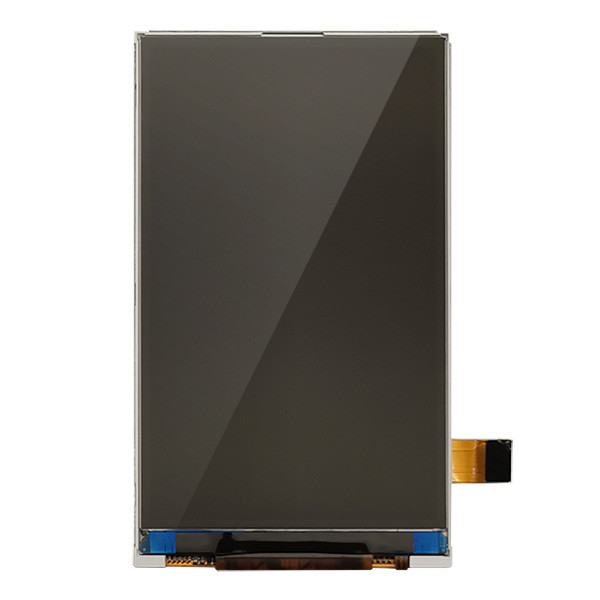

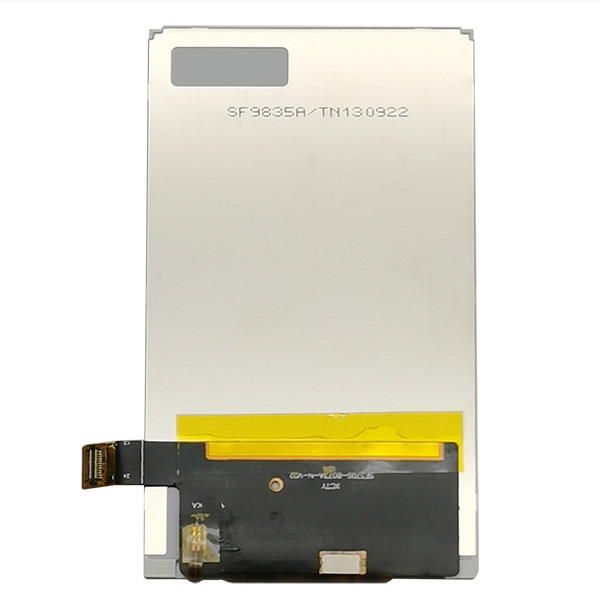

Portrait 3.7″ TFT LCD Module, 3.7″ 480×800 TFT Real Product Image
