Description
Introducing the SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD SF-TC350H-9496G-CT, a dynamic 3.5-inch portrait display boasting vibrant full-color visuals at a resolution of 320×480 pixels. Elevating your viewing experience with a surface brightness of 400 cd/m2 (typical value), this display offers a luminous backdrop ideal for applications requiring enhanced backlighting. For custom brightness requirements up to 1000 cd/m2, our sales team is readily available to assist you.
Operating seamlessly in temperatures ranging from -20℃ to +70℃, with storage capabilities extending from -30℃ to +80℃, the SF-TC350H-9496G-CT ensures reliability across diverse environments. With a supply voltage (VCC) for driving the LCD panel ranging from 2.6V to 3.3V (typical voltage: 2.8V), and compatibility with both 18-bit and 16-bit MCU interfaces, this display is versatile and adaptable to various systems.
Techstar 3.5-inch TFT-LCM LCD module features a cutting-edge 320×480 resolution IPS panel, delivering exceptional image quality and clarity. Boasting a wide viewing angle range of 85 degrees in all directions, it guarantees optimal visibility from any perspective. Enhanced with a 6H surface hardness capacitive touch screen, this module ensures durability and responsiveness. Utilizing a full lamination process, it minimizes color distortion under sunlight, while the anti-fingerprint AF Coating reduces smudges and dust accumulation, maintaining the module’s cleanliness during operation.
With a lifespan of 50,000 hours, this module is a reliable choice for a myriad of applications including communications, industrial control, medical equipment, automotive displays, GPS navigation systems, digital photo frames, and more. From consumer electronics to industrial automation, Techstar’s SF-TC350H-9496G-CT sets the standard for vibrant, high-quality displays tailored to diverse needs.
Product Features:
| Product: | 3.5 Inch TFT PCAP Touch Screen |
|---|---|
| Resolution: | 320×480 Pixels |
| Viewing Direction: | 12:00 |
| Touch Screen: | With Capacitive Touch Screen (Optional) |
| Interface: | MCU Interface |
| Pin Number: | 39 Pins (Customizable) |
| Connection: | Plugging (Customizable) |
| Surface Luminance: | 400 Cd/m2 (can Be Customized) |
| Operating Temp.: | -20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant |
Capacitive Touchscreen TFT 3.5 Inch Product Drawing

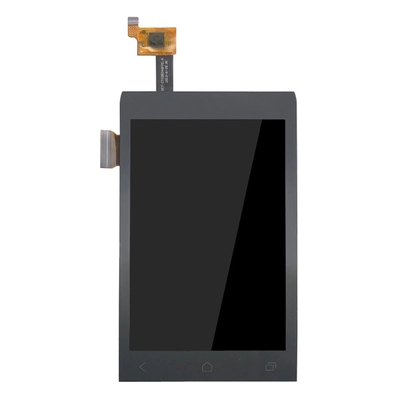

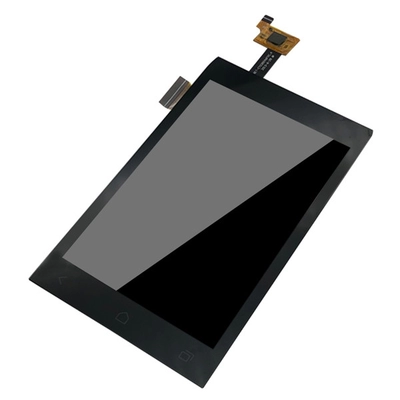

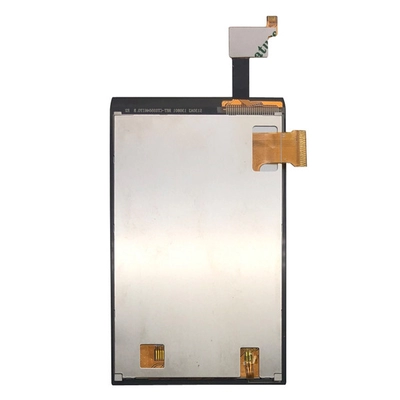

Capacitive Touchscreen TFT 3.5 Inch Product Image
